>visionsystems.de/SER-485
SER-485 ISO (414)


Main Features

  • Converts RS232 <=> RS422/485
  • ARTc(Automatic Receive/Transmit Control) for RS485
  • Auto Baudrate sensing
  • Built-in 120Ω termination, no biasing needed
  • LEDs for Power, RS232 & RS485
  • Full software configuration, no jumpers
  • Quick DIP configuration for standard modes
  • Wide power supply range 9-30V @ 100mA
  • 16kV ESD surge protection
  • 2.5kV electrical isolation (ISO version only)
  • DIN-Rail/Wall mountable option

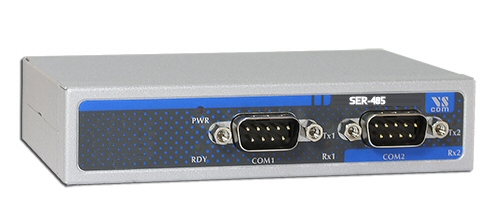

VScom SER-485, a converter from RS232 to RS422/485




SER-485
SER-485 ISO
(SER-485 PRO, SER-485 Lite, SER-485 PRO-SI)

Quick Link: | Main Features | More Pictures | Overview | Port RS232 | Port RS422 / 485 | Software Configuration | Power Requirements | Housing and Mounting | Environmental Data | Standards | MTBF (Mean Time Between Failures) | Warranty | Ordering Information | Options | Packaging | Download |

|

  More Pictures

VScom SER-485, a converter from RS232 to RS422/485
Click on the thumbnails to enlarge them …

>Back to top

  Overview

The SER-485 is a smart bidirectional RS232 to RS422/RS485 converter that is fully configurable by software and suitable for industrial environments. The device supports the ARTc (Automatic Receive/Transmit Control) for RS485 and auto baud rate sensing. Whilst automatic line termination exists there is no need for biasing differential lines easing its deployment. Both the RS232 and the RS422/RS485 interfaces are ESD surge protected. The device is a table, Din-Rail or wall mountable system.

ARTc (Automatic Receive Transmit control)

In the RS485 mode, the data direction is managed by the bitrate adaptive function of the ARTc to allow faster transmitter switch-off times. Auto baud rate sensing analyses the data in real-time and adapts to the speed of the RS232 port; this way the change from transmit to receive is done quickly and automatically.

Software Configuration

All options and parameters of the SER-485 operation are configured by a software and controlled by an easy-to-use menu structure. This menu is accessed from standard terminal programs. The SER-485 has NO jumpers.

Quick & Easy DIP control

Operation modes that are frequently used by the RS485/RS422 are selected by rear DIP switches. The full versatility is controlled by the built-in software configuration menu.
The internal termination resistors help to adjust the RS485 signals to connect to customers networks. These internal resistors are controlled by the configuration modes.

ESD protection and Isolation

For usage in hazardous industrial environments, the RS232 & RS422/RS422 interfaces and DCin are +/-16KV air and +/-8KV contact ESD surge protected. Long distance RS485/RS422 connections with unbalanced ground loops could seriously damage the equipment; As such, an ISO version offers 2.5kV galvanic isolation.

  Port RS232

No. of Ports/Type

1 × RS232

Connector

DB-9 female

Protection

16kV ESD surge protection

Signals

TxD,RxD, RTS, GND

Baudrate

200 bps to 460.8/500 kbps

LEDs

TxD/RxD

>Back to top

  Port RS422 / 485

No. of Ports/Type

1 × RS422/485 selected by DIP-switch or software

Connector

DB-9 male

Protection

  • 16kV ESD surge protection
  • 2.5kV electric isolation (ISO version only)

Operating Modes

  • RS422 full duplex              (120Ω on/off)
  • RS485 4 wire, full duplex    (120Ω on/off)
  • RS485 2 wire, half duplex   (120Ω on/off)

Configuration

One DIP switch sets operating mode and RS422/485 termination
Also software can configure this
No High/Low biasing resistors needed

Signals

  • RS422: Tx+/-, Rx+/-, GND
  • RS485 4 wire: Tx+/-, Rx+/-, GND
  • RS485 2 wire: Data+/-, GND

RS485 Data Direction Control

  • ARTc (Automatic Receive Transmit control)
  • RTS Signal on RS232 port

Baudrate

  • RS422: 200 bps to 500 kbps
  • RS485+ARTc: 200 bps to 250 kbps
  • RS485+RTS: 200 bps to 500 kbps

LEDs

TxD/RxD, ARTc

>Back to top

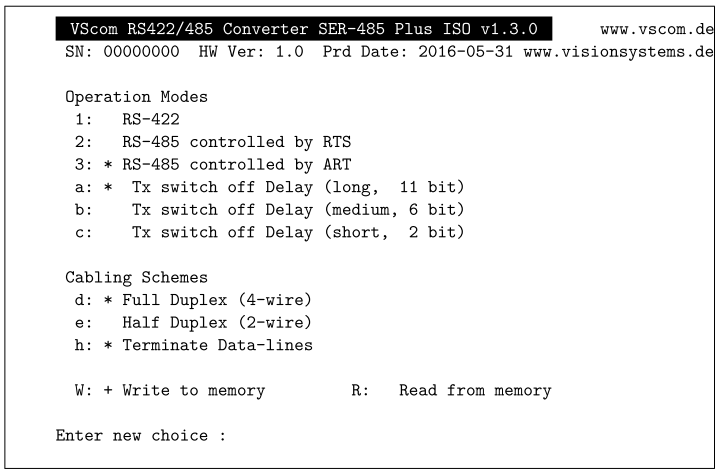

  Software Configuration

Configuration Menu

Software Utility with easy-to-use menu interface is accessed via standard terminal programs (Hyperterminal, PuTTY, miniterm, ...)

ARTc Options

  • ARTc: Transmit/Receive change as quick, average, standard
  • By RTS signal

>Back to top

  Power Requirements

Input Voltage

9-30V DC

Power Consumption

50mA @ 12V, 600mW

Connector

3-pin Terminal Block

>Back to top

  Housing and Mounting

Case

0.8mm sheet metal

Weight

w/o box 220g; w/h box 300g

Dimensions

115×73×25 mm³ (W×L×H)

Packaged

150×107×48 mm³

Mounting

  • DIN-Rail (optional)
  • Wall mount (optional)

>Back to top

  Environmental Data

Operating Temp

−20°C - 65°C

Storage Temp

−20°C – 85°C

Ambient Humidity

5-95% non condensing

>Back to top

  Standards

Declarations

CE, FCC

EMI

  • EN 55022 Class B
  • EN 61000-3-2: Limits of harmonic current emissions
  • EN 61000-3-3: Limitation of voltage changes
  • 47 CFR FCC Part 15 Subpart B

EMS (EN 55024)

  • EN 61000-4-3: Radiated RFI
  • EN 61000-4-4: Electrical Fast Transient
  • EN 61000-4-5: Surge
  • EN 61000-4-6: Induced RFI
  • EN 61000-4-8: Power Frequency Magnetic Field
  • EN 61000-4-11: Power supply dips

ESD

EN 61000-4-2 4kV contact 8kV air for

  • Serial Ports
  • DC Power connector

>Back to top

  MTBF (Mean Time Between Failures)

MTBF

available soon

Standard

Telcordia (Bellcore) Standard; RelCalc. 5.0 BELL-7

>Back to top

  Warranty

Warranty Period

2 years

>Back to top

  Ordering Information

414

SER-485

415

SER-485 ISO

>Back to top

  Options

6033

Power adapter 110-230V AC to 9V @ 300mA, DC, EU plug

6034

Power adapter 110-230V AC to 12V @1A, DC, US plug

6692

DK-NCP DIN-Rail mounting kit (clamp on rear side)

6693

WK-NCP Wallmount kit

663

DB9F-to-TB/5Pins for RS422/485 free wiring option

6061

DB9F-to-RJ45 for changing from DB9 male to CAT5 wiring
(Optimised for RS422/485 operating modes)

6062

RJ45-to-DB9M for changing back from CAT5 to DB9 wiring
(Required to match the DB9 pinout at SER-485)

>Back to top

  Packaging

Packing list

  • Converter SER-485
  • Terminal block for Power Supply

>Back to top

Download


 (Edition: June 2016)
