>visionsystems.de/DB9F-TO-RJ45 (6061)


Main Features

  • DB9 female to RJ45 Adapter
  • Uses Cat5 cable
  • Converts Dsub-9 male to Cat5
  • Optimized for RS485/422 operation
  • RS232 signal assignment is like USB-2COM ECO


RJ45 Adapter Female Dsub-9 New




DB9F-TO-RJ45

Quick Link: | Main Features | More Pictures | Overview | Specifications | Ordering Information |

|

  More Pictures

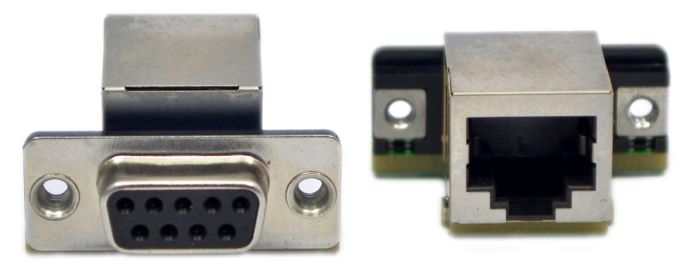

RJ45 Adapter Female Dsub-9
Click on the thumbnails to enlarge them …

>Back to top

  Overview

The DB9F-TO-RJ45 Adapter plugs into a normal DSub-9 male serial port. This way it allows to use a Cat5 cable for data transmission. This is very effective when using RS422 or RS485 operation, since the differential signals are located on the paired wires.
The matching adapter DB9M-TO-RJ45 at the other end of the Cat5 cable reverses the conversion, the standard signal assignment is valid again.
But customers may use their own connection on the other side.

  Specifications

DB9F-TO-RJ45

RJ45 Adapter, converts DSub-9 male to Cat5 cable socket.
Accessory for Serial Device Server or USB to Serial Devices (Industrial Plus Line)

Signals

  • RS232: RxD/TxD, RTS/CTS, DCD/DSR/DTR, GND
  • RS422: Tx+/-, Rx+/-, GND
  • RS485: Data+/-, GND

Signal assignment

When used on VScom serial ports in RS422 or RS485 operation, the balanced signals are located on twisted pairs in a Cat5 cable.
DSub-9 1 2 3 4 5 6 7 8 9
RJ45 8 7 3 6 5 4 2 1
RS232 DCD RxD TxD DTR GND DSR RTS CTS RI
RS422 Tx- Tx+ Rx+ Rx- GND
RS485 Data- Data+
This allows for easy noise cancelling and shielding.

>Back to top

  Ordering Information

6061

DB9F-TO-RJ45
