Construction
|
|
Aluminiumchassis with VESA 75/100mm standard screw holes Front Panel Aluminiumbezel with strenghthened glass Panel mount, Control on front bezel
|
|
Display
|
|
- Flat Panel 15.0" color TFT, 1024 x 768
- Brightness 250cd
- optional Touch screen
|
|
|
|
Input signal
|
|
VGA, AV-in optional
|
|
Control
|
|
on front bezel
|
|
Power supply
|
|
external 48W DC 12V power adapter
|
|
OS Support
|
|
MS DOS, Windows 98/SE, WIN NT4.0, W2K, XP,Vista
|
|
Response Time
|
|
16ms Typ. White to black
|
|
Viewing Angel
|
|
45° up to 45° L/R, 15° up to 30° U/D
|
|
Signal Connector
|
|
15-pin mini DSUB
|
|
Function Control
|
|
Brightness, Contrast, H/V Position, Color, Phase, Clock
|
|
|
|
Consumption
|
|
12,0 V Low driving voltage and low power consumption
|
|
Display type
|
|
15.0"
|
|
Light luminance
|
|
250cd
|
|
max Resolution
|
|
1024 x 768
|
|
max Colors
|
|
16.2M
|
|
Response Time
|
|
16ms Typ. White to black
|
|
Backlight
|
|
CCFL, Horizontal lamp type
|
|
Pixel Pitch
|
|
0.297x0.297mm
|
|
Contrast Ratio
|
|
500/1
|
|
|
|
Operating Temp
|
|
0°C to 45°C
|
|
Storage Temp
|
|
-20°C to 60°C
|
|
Vibration
|
|
10-150Hz, 0.15mm
|
|
Shock
|
|
30G peak acceleration, 11ms. duration
|
|
|
|
Type
|
|
analog resistive
|
|
Resolution
|
|
continuous
|
|
Light transmission
|
|
79% or more
|
|
Controller
|
|
RS232 interface or USB option
|
|
|
|
Software Driver
|
|
support Win 98, NT, 2000, ME, XP
|
|
Lifetime
|
|
100 million times
|
|
Dimension
|
|
409.0 x 300.0 x 48.0mm
|
|
Weight
|
|
ca. 5,0kg
|
|
Certification
|
|
CE
|
|
|
|
Part Number
|
|
3139
|
|
Product Name
|
|

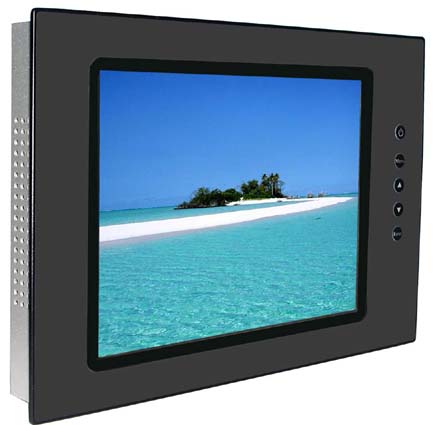

VS IPM-15 LC Display
|
|
Packing list
|
|
industrial frame Displays includes LCD Panel, external Power Adapter, Power Cord
|
|
Versions:
|
|
IPM 15 without Touchscreen IPM 15T with Touchscreen
|
|
|
|
|
