Main Features

  • USB 2.0 to 2 x RS232 ports
  • High-Speed Serial ports 460.8kbps
  • Driver for Windows, Linux, Mac OS X
  • LEDs for Power and TxD/RxD activity
  • ESD protection on USB and serial ports
  • Small metal housing and Bus powered
  • DIN-Rail and Wall mount options
  • Wide range operating temperature

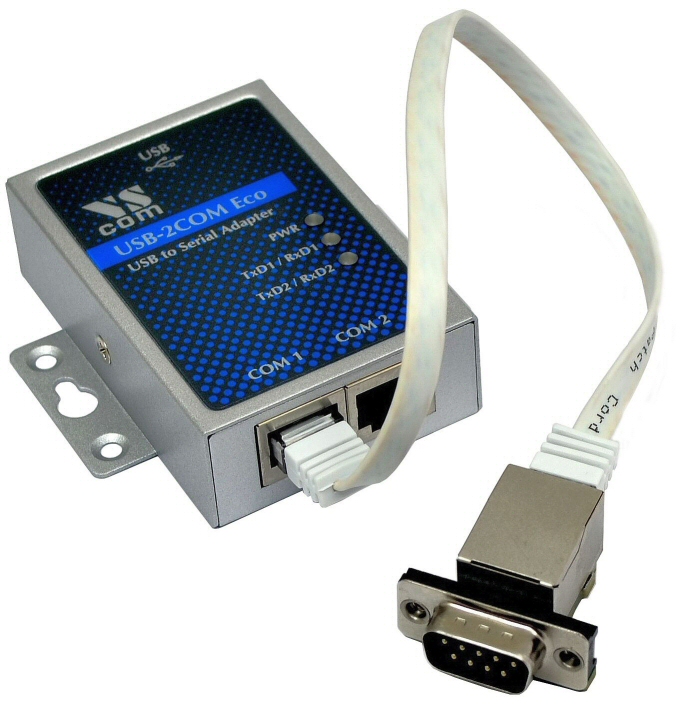

VScom USB-2COM ECO, a dual port USB-to-Serial RS232 adapter New




USB-2COM ECO
(USB-2COM-M)

Quick Link: | Main Features | More Pictures | Overview | USB Interface | Serial Interface | Software | Power Requirement | Housing and Mounting | Environmental Data | Standards | MTBF (Mean Time Between Failures) | Warranty | Ordering Information | Options | Packaging | Download |

|

  More Pictures

VScom USB-2COM ECO, a dual port USB-to-Serial RS232 adapter
Click on the thumbnails to enlarge them …

>Back to top

  Overview

USB-2COM ECO provides easy serial port expansion over USB 2.0 connecting to RS232 devices over RJ45 connectors. It is fully ESD and surge protected, bus powered and accommodated in a very small metal housing. It works over a wide temperature range to cope with harsh operating conditions. DIN-Rail and Wall-mounting options are available.
RJ45-to-DB9M adapters needed to change wiring from CAT5 to DB9 are included. The customer supplies his own cables in suitable length.

Serial Ports Configuration

The serial ports fully support 8 x signals RS232 protocol. LEDs for PWR and TxD/RxD show the activity status for the user. Com Port Drivers are available for Windows, Linux and Mac OS X. A configuration tool, called USB-COM Configurator, allows easy access to special Windows driver options to optimise setting and performance.

High Speed Rates and ESD Protection

USB 2.0 full speed connection allows serial data rates of up to 460.8kbps. Every non-standard bitrate (e.g. 31250bps MIDI) can be easy set up. USB-COM ECO is fully ESD and surge protected at USB and serial port interfaces.

  USB Interface

USB-Input

USB 2.0 Full Speed, USB 1.1 compliant

Connector

USB type B

Circuits

FTDI FT2232D

>Back to top

  Serial Interface

No. of Ports/Type

2 x RS232

Connector

RJ45 (8P8C) 8 pin
2 x RJ45-to-DB9M Adapters to change to DB9 wiring included

Protection

16kV ESD surge protection

Signals non-ISO

TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

Data Bits

7, 8

Stop Bits

1, 2

Parity

None, Even, Odd, Mark, Space

Flow Control

RTS/CTS, XON/XOFF

Baudrate

180bps - 460.8/500kbps

LEDs

bicolour TxD/RxD for each port

>Back to top

  Software

Drivers

  • Windows 2000 to Windows 10 (x86 and x64)
  • Windows Server 2000 to 2016 (x86 and x64)
  • Linux (Kernel 2.6 and later built-in)
  • Mac OS X

Installation

The driver is already installed (Linux), or installs by automatic Download after Device connection (Windows).

>Back to top

  Power Requirement

Input Voltage

5V (USB)

Power Consumption

max 60mA, 300mW

Connector

USB Type B, bus powered, no external supply

>Back to top

  Housing and Mounting

Case

0.8mm sheet metal

Weight

150g, w/h box 0.3kg

Dimensions

50×72×22 mm³ (W×L×H) Case
72×72×22 mm³ (W×L×H) with mounting wings

Packaged

85×122×55 mm³

Mounting

Desktop use

  • DIN-Rail (optional)
  • Wall mount

>Back to top

  Environmental Data

Operating Temp

−25°C - 75°C

Storage Temp

−30°C – 85°C

Ambient Humidity

5-95% non condensing

>Back to top

  Standards

Declarations

CE, FCC

EMI

  • EN 55022 Class B
  • 47 CFR FCC Part 15 Subpart B

EMS (EN 55024)

  • EN 61000-4-3: Radiated RFI
  • EN 61000-4-4: Electrical Fast Transient
  • EN 61000-4-5: Surge
  • EN 61000-4-6: Induced RFI
  • EN 61000-4-8: Power Frequency Magnetic Field
  • EN 61000-4-11: Power supply dips

ESD

EN 61000-4-2 4kV contact 8kV air for

  • Serial Ports
  • USB

>Back to top

  MTBF (Mean Time Between Failures)

MTBF

139.2 Years @ 25°C
73.7 Years @ 45°C

Standard

Telcordia (Bellcore) Standard; RelCalc. 5.0 BELL-7

>Back to top

  Warranty

Warranty Period

2 years

>Back to top

  Ordering Information

614

USB-2COM ECO (2x RS232)

>Back to top

  Options

662

DK 35A DIN-Rail mounting kit

661

Serial Null-Modem adapter 9PF-9PF, change male to female

>Back to top

  Packaging

Packing list

  • USB-2COM ECO device
  • USB 2.0 High-Speed cable
  • 2 adapters RJ45-TO-DB9M
  • 4 rubber feet for table mode

>Back to top

Download


 (v2.12.28 August 2017)
 (v2.08.30 July 2013)
 (Windows 2000 to 10)
 (Easy configuration and more)
 (Edition February 2017)
>Back to top

* Specifications are subject to change without notice.
