>visionsystems.de/TaskRunner 3600E (NISE 3600E) (3636)


Main Features

  • Intel Core i7 3.4GHz fanless design
  • Intel Core i5 3.3GHz alternative
  • Intel QM77 Chipset
  • 4GB DDR3 Memory
  • 2x GigaLAN / 4x USB 3.0 / 2x USB 2.0
  • DVI-D or VGA + 2x Display port
  • 5x RS232, 1x RS232/422/485
  • HDD Space
  • external CFast socket
  • PCIex4 Expansion Slot
  • Power Input 9V-30V


TaskRunner 3600E (NISE 3600E)




TaskRunner 3600E (NISE 3600E)

Quick Link: | Main Features | More Pictures | Overview | System | Storage | Expansion Options | Supported OS | Power Requirements | Housing and Mounting | Environment | Standards | Warranty | Ordering Information | Options | Packaging |

|

  More Pictures

TaskRunner 3600E (NISE 3600E)
Click on the thumbnails to enlarge them …

>Back to top

  Overview

With 3rd generation Intel® Core™ i7 processor the TaskRunner 3600E (NISE 3600E) fanless computer features Intel® Turbo Boost and Hyper-Threading technologies. Versatile graphics, large DDR3 memory, plenty of high-speed interfaces as well as its innovative mechanical design well suit it for high performance applications, such as Auto Optical Inspection, Machinery Automation, Surveillance or Image Processing equipments and Healthcare industry. Windows XP/7/10 and Linux are supported.

Computing Performance

The Intel® Core™ i7 CPUs (4 cores at 2.4GHz with Turbo Boost at 3.4GHz) augmented by Intel® Hyper-Threading for 8 independent threads and combined with up to 8GB high speed DDR3 memory assemble an affordable powerhouse for high demanding industrial applications.
The Intel® Core™ i5 CPU (2 cores at 2.6GHz with Turbo Boost at 3.3GHz) constitute a powerful but cost-effective variation.

Graphic Performance

The on-processor graphic unit supports 2x display ports, 1x VGA port plus 1x DVI-D port enabling up to 3 independent displays simultaneously. On chip GPU also delivers graphics performance significantly faster than the previous generation making it the ideal centerpiece to power hungry graphical and image processing applications.

Rich Connectivity and Expansion

The connectivity includes 2x Intel® GbE LAN ports, 6x COM ports, and 1x (front accessible) CFast socket; the GbE LAN ports support WoL function. Fast serial interfaces like 4x USB 3.0 and 2x USB 2.0 plus 1x or 2x PCI or PCIe slots facilitate the flexible expansion of system's capabilities. One Integrated Mini-PCIe slot can accommodate WLAN or 3G/4G-Modem cards.
9-30V DC input power supply, wide temperature operating range and ruggedized compact aluminium housing recommend it for deploying in harsh industrial environments.

  System

CPU

  • Intel Core i7-3630QM Processor
    (6M cache, 3.4GHz)
  • Intel Core i5-3320M Processor
    (3M cache, 3.3GHz)

Chipset

Intel QM77 PCH
resolution up to 2048x1536

Memory

4GB DDR3 1333/1600MHz (8GB max.)
2x 204-pin SO-DIMM

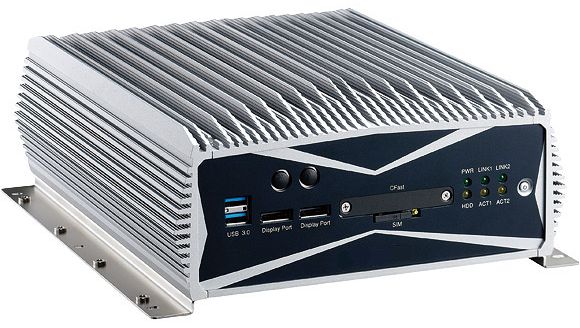

I/O Interface Front


2x USB 3.0 ports
2x Display Port
CFast socket
2x antenna holes
ATX power on/off switch
HDD access/power/LAN status LEDs

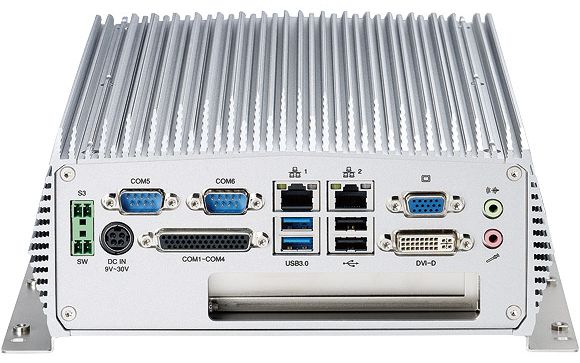

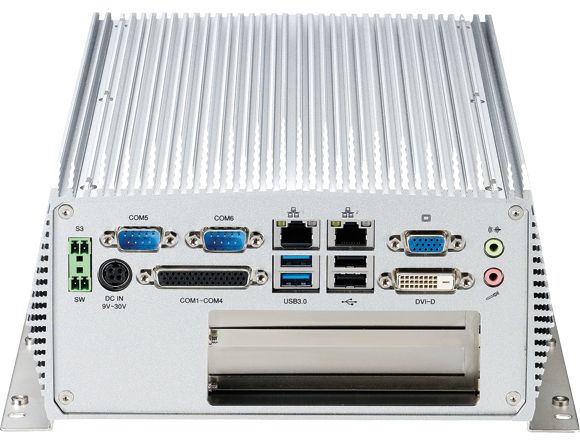

I/O Interface Rear


2x GbE LAN ports (Intel Chipset)
2x USB 3.0 ports
2x USB 2.0 ports
1x DB15 VGA port
1x DVI-D port
1x DB44 serial port for 4x RS232 (COM2: RS232/422/485)
2x DB9 serial port RS232
1x speaker-out
1x mic-in
9-30V DC power input
2-pin remote power on/off switch

>Back to top

  Storage

HDD/SSD


1x 2.5" SATA HDD drive bay(TaskRunner 3600E)
2x 2.5" SATA HDD drive bay
(TaskRunner 3600E2, 3600P2E, 3600P2)

Flash

1x external CFast socket

>Back to top

  Expansion Options

Expansion slot


1x PCIex4 (TaskRunner 3600E)
2x PCIex4 (TaskRunner 3600E2)
1x PCIex4 + 1xPCI (TaskRunner 3600P2E)
2x PCI (TaskRunner 3600P2)

>Back to top

  Supported OS

Microsoft

Windows XP, 7 – 10

Linux

Kernel 2.6 / 3.x

>Back to top

  Power Requirements

Input Voltage

9V - 30V DC on-board power support

Power Supply

AC to DC power adapter, 120W (19V DC)

Connector

4 Pin snap and lock DC power connector

>Back to top

  Housing and Mounting

Case

Aluminum and Metal Chassis with fanless design

Weight

Gross Weight: 6.8kg

Dimensions

215x 272x 93mm (TaskRunner 3600E)
215x 272x 114mm (TaskRunner 3600E2, 3600P2E, 3600P2)

Mounting

Wall Mount

>Back to top

  Environment

Operating Temp.

−5°C - 55°C

Storage Temp.

−20°C – 80°C

Ambient Humidity

10-95% non condensing

>Back to top

  Standards

Certifications

CE, FCC Class A, UL

Shock Protection

20G, half sine, 11ms, IEC60068-2-27

Vibration Protection with HDD Condition


Random: 0.5Grms @5~500 Hz according to IEC68-2-64
Sinusoidal: 0.5Grms @5~500 Hz according to IEC68-2-64

>Back to top

  Warranty

Warranty Period

2 years

>Back to top

  Ordering Information

3636

TaskRunner 3600E (NISE 3600E) (Core i7, one PCIe x4 expansion slot)

3635

TaskRunner 3600E (NISE 3600E) (Core i5, one PCIe x4 expansion slot)

3640

TaskRunner 3600E2 (NISE 3600E2) (two PCIe x4 expansion slots)

3642

TaskRunner 3600P2E (NISE 3600P2E) (one PCIe x4 and one PCI expansion slot)

3644

TaskRunner 3600P2 (NISE 3600P2) (two PCI expansion slots)

>Back to top

  Options

Mass Storage device


2.5 HDD SATA
2.5 SSD SATA
CFast Card

>Back to top

  Packaging

Packing list

  • TaskRunner Embedded System
  • (incl. Intel Core i7 / Core i5, 4GB DDR3 RAM)
  • Power Adapter, Driver CD, English documentation

>Back to top

* Specifications are subject to change without notice.
* All trademarks and brands are property of their rightful owners.
