Main Features

  • RS232 connection cable
  • DB 62 on 8 x DSUB 9 male (with nuts)
  • length 100cm
  • Connection cable for VScom 800E PCIex, VScom 800H UPCI and VScom 800LS UPCI


Cable eight times DSub9 male connector with fixing nuts (Terminal type)




OPT8D-M

Quick Link: | Main Features | More Pictures | Overview | Parameters | Ordering Information | Download |

|

  More Pictures

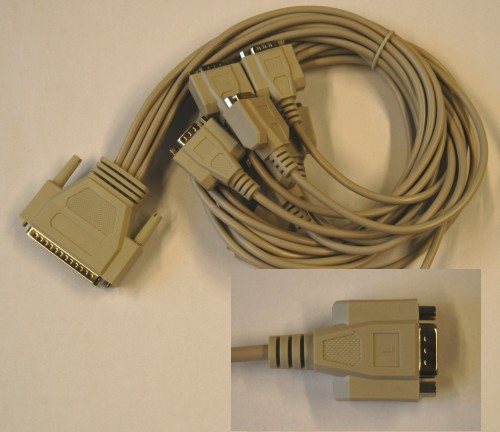

Cable eight times DSub9 male connector with fixing nuts (Terminal type)
Click on the thumbnails to enlarge them …

>Back to top

  Overview

This "Octopus" cable separates the eight serial ports from the 62-signal combination connector. Each port is available on a DB9 male connector. The connector is equipped with nuts and behaves like a serial port built-in to a PC.

  Parameters

Signals

RxD(2), TxD(3), CTS(8), RTS(7), DTR(4), GND(5), DCD(1), DSR(6)

Cable length

100cm

Fixing

Nuts like connector on PC (COM1)

>Back to top

  Ordering Information

404

OPT8D-M

Packing list

OPT8D-M cable

>Back to top

Download


 (Pinout cable DB62, DB25, DB9)
 (Pinout box DB62, DB25, DB9)
