Main Features

  • AMD G-T40E Dual Core, 1.0GHz without fan
  • 4GB DDR3L SDRAM, max 8GB
  • VGA on board
  • 2 x GigaLAN
  • 6 x USB 2.0
  • 2 x RS232, 2 x RS232/422/485
  • Mini PCI Express Socket
  • CFast Flash card Adapter
  • Supports Windows XP / 7 / 10, Linux
  • 19-inch mounting option
  • Dimensions 130.0mm x 200.0mm x 52mm
  • HDD Space
  • 4 x isolated Digital-I/O


EmRunner 5408 New




EmRunner 5408

Quick Link: | Main Features | More Pictures | Overview | System | Storage | Expansion Options | Supported OS | Power Requirements | Housing and Mounting | Environment | Standards | Warranty | Ordering Information | Options | Packaging |

|

  More Pictures

EmRunner 5408
Click on the thumbnails to enlarge them …

>Back to top

  Overview

Small and robust fan less embedded system EmRunner 5408 provides low power consumption, which is optimized for cost and size sensitive compute applications. Large DDR3L memory, plenty of modern interfaces as well as its small mechanical design well suit it for compact performance applications, such as Factory Automation, Network and Communication Applications.

Computing Performance

The AMD G-Series CPU (2 cores at 1.0GHz) combined with up to 8GB high speed DDR3L memory bring scalable performance with low power consuption which make it ideal for compact demanding industrial applications.

Graphic Performance

The on-processor graphic unit supports 1x VGA port and delivers power efficiency and high definition graphics. On chip GPU also delivers graphics performance significantly faster than previous generations making it the ideal centerpiece to power hungry graphical and image processing applications.

Rich Connectivity and Expansion

The connectivity includes 2x Realtek GbE LAN ports, 4x COM ports, CFast card socket, D-IO and 6x USB 2.0; the GbE LAN ports support WoL function. One integrated Mini-PCIe slot can accommodate WLAN, 3G/4G-Modem or mSATA card.
12-24V DC input power supply, wide temperature operating range and ruggedized compact aluminium housing recommend it for deploying in harsh industrial environments.

  System

CPU

AMD G-T40E Dual Core Processor
(512KB Cache per Core, 1.0 GHz)

Chipset

AMD Fusion Controller A55E

Memory

4GB DDR3L (8GB max.)
2 x 204-Pin SoDIMM

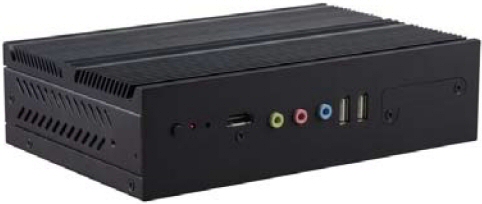

I/O Interface Front


CFast access
2 x USB
Audio (Mic-In, Line-In & Ear-Phone-Out)
Power Button
Reset
HDD LED

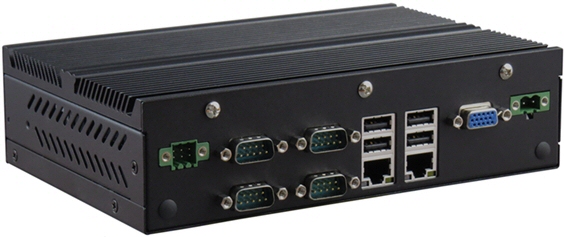

I/O Interface Rear


2 x GbE LAN ports (Realtek RTL8111F Chipset)
4 x USB 2.0 ports
1 x DB15 VGA
2 x DB9 serial port RS232
2 x DB9 serial port RS232/422/485
12-24V DC power input
2 + 2 isolated Digital-I/O
Antenna position

>Back to top

  Storage

HDD/SSD

1 x 2.5" SATA HDD drive bay

Flash

1 x internal CFast socket

>Back to top

  Expansion Options

Expansion slot

1 x PCI Express Mini Card with SIM slot
For Wireless or GPRS/3G/4G modem, also mSATA card

>Back to top

  Supported OS

Microsoft

Windows XP, 7 – 10

Linux

Kernel 2.6 / 3.x

>Back to top

  Power Requirements

Input Voltage

12V - 24V DC on-board power support

Power Supply

AC to DC power adapter, 12V (60W)

Power Consumption

Full loading mode ca. 20W

>Back to top

  Housing and Mounting

Case

Aluminium chassis with fanless design

Dimensions

200 x 130 x 52 mm

Mounting


Wall Mount
19-inch Rack Mount
VESA Mount

>Back to top

  Environment

Operating Temp.

0°C - 60°C

Storage Temp.

−20°C – 80°C

>Back to top

  Standards

Certifications

CE, FCC, RoHS

>Back to top

  Warranty

Warranty Period

2 years

>Back to top

  Ordering Information

222

EmRunner 5408

>Back to top

  Options

3304

IEEE 802.11b/g/n WLAN Module with Antenna

Mass Storage device


2.5 HDD SATA
2.5 SSD SATA
CFast Card

5403K1

19-inch Rack mounting kit, 2 metal fixtures with screws

5407K2

Wall mounting kit

5407K3

LCD VESA Panel back mounting kit 122mm

5504K1

VESA Panel back mounting kit 75/100mm

>Back to top

  Packaging

Packing list


EmRunner 5408 Embedded System
CD, English documentation
Power Adapter, Terminal blocks for power supply and Digital-I/O
1 x Wall Mounting kit (2 metal plates with 4 screws)
1 pack (4+2) screws for SATA-HDD and Mini-Card installation

>Back to top
