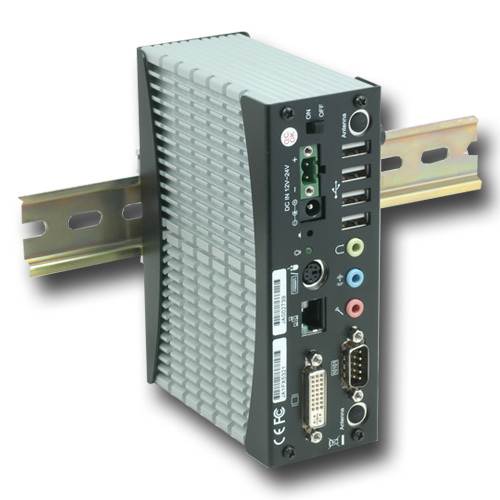

>visionsystems.de/VS-EmRunner 5321 DIN RAIL (231.html)   Features Intel Atom N270, 1.6GHz without fan, inkl. 1GB DDR2 SoDIMM, VGA on board 1 x GLAN / 4 x USB 2.0 1x RS232/422/485 MiniPCIe + SIM socket Compact Flash Adapter HDD Space S-ATA DC 12-24V terminal block Dimensions 145.0mm x 102.0mm x 50.4mm Audio, Line-in, MIC, Line-out     Zoom in Picture VS-EmRunner 5321 DIN RAIL Quick Link: | Features | Overview | Chassis | Hardware | Memory | Video | Integrated Devices | Connectivity | Power supply | optional external Power Adapter DIN RAIL 75W 24V | Power consumption | Environment | supported OS | Approvals | Ordering Information | optional | |   Overview The really small and robust embedded system! Fan less, Low Power Consumption, Professional construction inside!   Chassis Construction full size Aluminium Mounting configuration DIN RAIL Filter no Cooling system passive heatsink, fanless LED indicator Power on/off in front, HDD/CF access, LAN Expansion slot 1 x MiniPCIe + SIM socket Dimensions 145.0 x 102.0 x 50.4mm³ Power switch front side >Back to top         Hardware Processor Intel Atom N270, 1.6GHz CPU socket on Board BIOS Ami Flash BIOS Chipset Intel 945GSE >Back to top         Memory Memory type 1GB DDR2 SoDIMM. up to 2GB max. Memory socket 1 x 200-pin SoDIMM socket >Back to top         Video VGA controller embedded in 945GSE chipset BUS PCI internal in chipset Video RAM DVMT Interface DVI Resolutions up to 1600 x 1200/16bit >Back to top         Integrated Devices HDD Bay 1 x 2.5 SATA HDD or SSD Compact Flash CF Adapter complete built in Optional 512up to 8GB Compact Flash Card Watchdog Timer Programmable Watchdog Timer, 1-63 sec. Real Time Clock standard Keyboard/Mouse PS/2 connector, Y-Adapter cable for Keyboard and Mouse >Back to top         Connectivity LAN 1 x 10/100/1000Mbps BaseTX with RJ45 connector, RealTek 8111C Chipset supports wake on LAN boot from LAN WLAN optional IEEE 802.11b/g WLAN Module with Antenna Encryption: WEP 64/128, WPA, WPA2 USB 4 x USB 2.0 supports boot function from USB VGA 1 x DVI Com Ports total 1 x DSUB 9 male Com Port Modi 1 x RS232/422/485 Audio Mic, Line-in and Line-out >Back to top         Power supply   optional external Power Adapter DIN RAIL 75W 24V Power input AC 100-240V, 50-60Hz Power output 24V, 3.2A >Back to top         Power consumption average system alone 10.5W with power supply NN >Back to top         Environment Operating Temp. 0°-50°C Storage Temp. -20°-+60°C >Back to top         supported OS Windows 7, XP, XP Embedded Linux Kernel 2.4 / 2.6 >Back to top         Approvals EMC FCC Class A, CE Class A Environment RoHS >Back to top         Ordering Information Art.No 231 Product Name VS-EmRunner 5321 Packing list VS-EmRunner 5321 Embedded System CD, English documentation 1 x 2-pin terminal block >Back to top         optional Mass Storage device 2.5 HDD SATA 2.5 SSD SATA Compact Flash Card Power Supply DR7524 >Back to top
