>visionsystems.de/VScom 011H UPCI Low Profile (4409)


Main Features

  • Universal PCI 3.3 / 5.0V
  • 1x LPT bidirectional
  • supports EPP / ECP and 1284 mode
  • PCI Plug and Play
  • Drivers for Windows 95 to 7/2008 R2
  • Software compatibel with DOS, Windows 3.11, OS/2, Linux and div. Unix


Vscom 011H UPCI, a 1 Port LPT PCI low profile card




VScom 011H UPCI Low Profile

Quick Link: | Main Features | More Pictures | Overview | Hardware Specifications | Operating Systems | Ordering Information | Packaging | Download |

|

  More Pictures

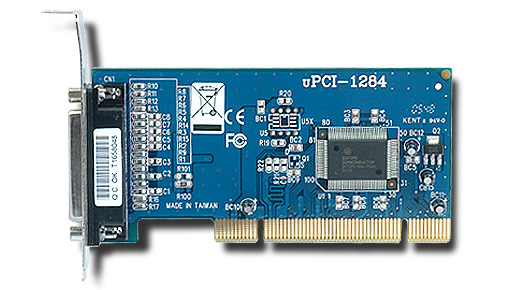

Vscom 011H UPCI, a 1 Port LPT PCI low profile card
Click on the thumbnails to enlarge them …

>Back to top

  Overview

The Low Profile card fits to the PCI Low-Profile specifications. As such it is usable in small cases. The parallel port allows EPP/ECP data transfer. It is best to connect high-speed printers and some other devices, such as ZIP-drives.

  Hardware Specifications

Ports

1x LPT bidirectional,EPP,ECP,1284

Address

Plug and Play

Interrupts

PCI Plug and Play, only one interrupt/card

Bus interface

Universal PCI 3.3V / 5.0V

Chipset

Ox12PCI840

Connectors

1x DB25 female (LPT)

Temperature

0°C - 55°C

Bracket Height

80mm Half-Height, for slimline cased PC

>Back to top

  Operating Systems

Windows 2000 up to 7

VScom parallel driver

Server 2000 to 2008 R2

VScom parallel driver

Windows NT 4.0

VScom parallel driver
control panel applet

Windows 95, 98, SE, ME

VScom parallel driver

DOS

virtuell address driver and compatibility tools
real DOS LPT port emulation

OS/2

Supported by COM16 driver in recent system releases

Linux

VScom LPT driver

>Back to top

  Ordering Information

4409

VScom 011 H UPCI LP

>Back to top

  Packaging

Packing list

VScom 011H/LP UPCI card
CD, English documentation

>Back to top

Download


 (Release 3.3.5.0 (January 29 2013))
 (Release 3.1.2 (July 20 2007))
 (Release 3.1.2 (July 20 2007))
 (Release 3.1.2 (July 20 2007))
 (Release 3.1.2 (July 20 2007), PnP)
 (Release 3.1.2 (July 20 2007))
 (Manual for H-series boards, Edition February 2010)
