>visionsystems.de/SOM-9331 (6845)


Main Features

  • Very small size
  • QCA AR9331, MIPS 24K, SoC @400 MHz
  • 64MB DDR2 memory,
  • 16MB SPI NOR Flash, bootable
  • Wifi IEEE 802.11 b/g/n, 150Mbps max.
  • Frequency Band 2.4-2.4835GHz ISM Band
  • Antenna U.FL connector for IPEX/RP SMA
  • 2 × LAN ports and 1 × WAN port, 100Mbps
  • 1 × USB 2.0 Host
  • 1 × High-speed UART for console
  • 1 × SPI for external use
  • 1 × JTAG interface
  • 21 × GPIO / LED support
  • Surface mountable 29 × 25 × 2mm
  • Power 300mA @3.3V typ.


SOM-9331 New




SOM-9331

Quick Link: | Main Features | More Pictures | Overview | Software Specifications | Core Components | Interfaces (typical / max) | Power Requirements | Mechanical | Environmental Data | Standards | MTBF (Mean Time Between Failures) | Warranty | Ordering Information | Packaging |

|

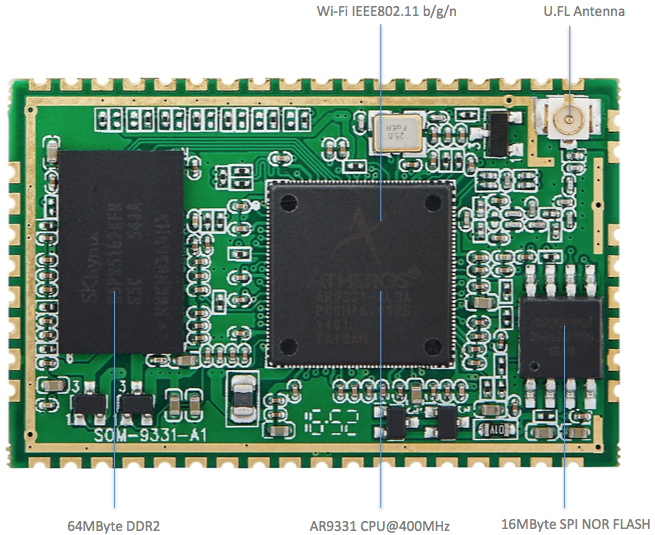

  More Pictures

SOM-9331
Click on the thumbnails to enlarge them …

>Back to top

  Overview

The SOM-9331 is a complete, small form factor and surface mountable System-On-Module (SOM) that is optimized for low-cost, low-power and highly integrated networking devices. The module supports a full spectrum of functionality on a 39×25×2mm PCB design, requiring only a 3.3V power supply. It features the AR9331 MIPS 24K SoC, which is accompanied by a 64MByte DDR2 memory and 16MB SPI NOR Flash as a boot device. The SoC provides a complete CPU infrastructure, with a variety of connectivity interfaces: besides WAN/LAN, USB, SPI and SPDIF interfaces, the SOM includes a fully functional Wifi core that complies with the IEEE 802.11 b/g/n with internal PA and LNA. Further, it supports IEEE 802.11 b/g at standard data rates and IEEE 802.11n operations up to 7.2Mbps and 150Mbps for for 20MHz and 40MHz channels, respectively. The module is compatible with Linux operating systems and can run OpenWrt.


The SoC has many interface options, which are multiplexed on the connection pins. As a result, this yields a lot of available function; however, not all of them can be utilised in the same configuration. The specifications below name the number of functions in a typical configuration, as well as the maximum number of usable ones in certain setups. OEM/ODM customers can get support in developing their own carrier board for the target application using proven interface designs.

  Software Specifications

Linux

Buildroot:
BSP with Kernel and bootloader patches and basic configuration (Github)
Buildroot are suitable for installation to NOR Flash

>Back to top

  Core Components

Processor

Atheros AR9331 MIPS 24Kc RISC CPU @400MHz

Memory

  • 64MB DDR2
  • 16MB SPI NOR Flash

Boot

from SPI NOR Flash

Timer

Watchdog Timer

WLAN Standards

IEEE 802.11b/g/n 2.4 GHz ISM Band

WLAN Modes

Access Point (AP) or Client (Station)

TX Power

802.11b:
Typ. 19.5dBm @ 1Mbps (CCK)
Typ. 20.0dBm @ 11Mbps (OFDM)
802.11g:
Typ. 19.5dBm @ 6Mbps (CCK)
Typ. 20.0dBm @ 54Mbps (OFDM)
802.11n:
Typ. 21dBm, HT=20MHz @ 7.2Mbps (OFDM)
Typ. 15dBm, HT=40MHz @ 150Mbps (OFDM)

RX Sensitivity

802.11b:
-93.0dBm @ 1Mbps, -87.0dBm @ 11Mbps
802.11g:
-88.0dBm @ 6Mbps, -74.0dBm @ 54 Mbps
802.11n:
-94dBm @ 7.2Mbps (20 MHz), -73.0dBm @ 72.2Mbps (20 MHz)
-89dBm @ 15Mbps (40 MHz), -69.0dBm @ 150Mbps (40 MHz)

Antenna

U.FL antenna connector or side pad

Connection Pads

Surface mount with 52 side pads

  • 41 × signal pads
  • 7 × GND pads
  • 2 × 3.3V pads
  • 1 × 2.0V output for ext. ETH-Transformer
  • 1 × antenna pad

>Back to top

  Interfaces (typical / max)

Fast Ethernet

3 / 3 × 10/100 Mbit PHY

USB

1/ 1 × USB 2.0

Audio / Telephony

0 / 2 I²S
0 / 1 SPDIF out
0 / 1 SLIC

SPI

1 / 1 Port

Serial Ports UART

1 / 1 Port

Debug

1 / 1 JTAG

GPIO

14 / 21 signals from MPU

>Back to top

  Power Requirements

Input Voltage

3.3V @ 300mA

Aux. Power Output

2.0V @ 120mA max.

>Back to top

  Mechanical

Dimensions

39×25×2 mm³

>Back to top

  Environmental Data

Operating Temp

-20°C - 75°C

Storage Temp

-20°C - 85°C

Ambient Humidity

10-85% non-condensing

>Back to top

  Standards

Approvals

  • EMC: FCC Class A, CE Class A
  • Environment: RoHS

>Back to top

  MTBF (Mean Time Between Failures)

MTBF

117.5 Years @ 25°C

Standard

Telcordia (Bellcore) Standard; RelCalc. 5.0 BELL-7

>Back to top

  Warranty

Warranty Period

2 years

>Back to top

  Ordering Information

6845

SOM-9331

>Back to top

  Packaging

Packing list

SOM-9331 System on Module

>Back to top

* Specifications are subject to change without notice.
