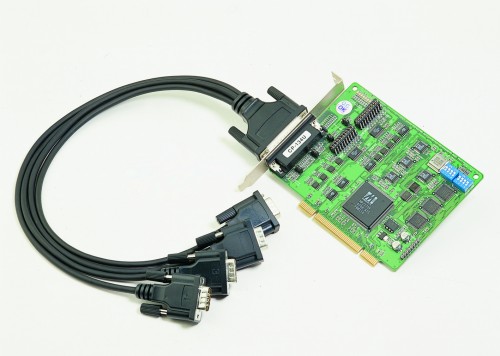

>visionsystems.de/CP-134U PCI (749)   Main Features 4x RS422 / RS485 32-bit universal PCI Supports 64 Byte FIFO Driver Embedded 16KV ESD protection Support Automatic Data Direction Control (ADDC) Built-in termination resistors Compact board size (half-size), suitable for any PC cabinet On-chip hardware flow control, no data loss       Inquiry PDF CP-134U PCI Quick Link: | Main Features | More Pictures | Overview | Specification | Hardware | Interface | Performance | Configuration | Power and Environment | Ordering Information | Packaging | |   More Pictures Click on the thumbnails to enlarge them … >Back to top         Overview The CP-134 Universal PCI series is designed the new slot standard for expansion Boards and works with both 3.3V and 5.0V server slots.CP 132U offers two independent RS422 / 485, and each port can control up to 32 devices in a multidrop environment. Applications can easily manage the data transmitting and receiving of the half-duplex RS485 port without extra code via Automatic Data Direction Control (ADDC) intelligence. In addition, on-chip hardware flow control and built-in termination resistors guarantee data integrity.   Specification   Hardware I/O controller 4x 16C550C or compatible Connector type Male DB9 >Back to top         Interface Bus interface 32-bit Universal PCI, for 3.3V and 5.0V expansion Slots Serial interface RS422 / 485 No. of ports 4 Signals RS422 TxD+/-, RxD+/-, RTS+/-, CTS+/-, GND RS485 Data+/-, GND RS485 data control Auto (Automatic Data Direction Control) or by RTS Built-in termination resistor RS422 120 Ohm RS485 120 Ohm, jumper enable / disable >Back to top         Performance Speed 50 - 921.6 Kbps Max. no. of ports 16 (4 boards) >Back to top         Configuration Parity None, even, odd, space, mark Data bits 5, 6, 7, 8 Stop bits 1, 1.5, 2 IRQ Assigned by BIOS I/O address Assigned by BIOS >Back to top         Power and Environment Power requirement 310mA max.(+5V) Operation temp. 0°C - 55°C Dimension 135mm x 110mm Isolation Protection 16KV ESD protection Operating Systems supported Vista, XP, Windows 2000, Windows NT, Windows 95/98/ME, Linux >Back to top         Ordering Information 749 CP-134U PCI >Back to top         Packaging Packing list CP-134U PCI Software CD, English documentation 4 Port DB9 male connection cable Standard Bracket >Back to top
