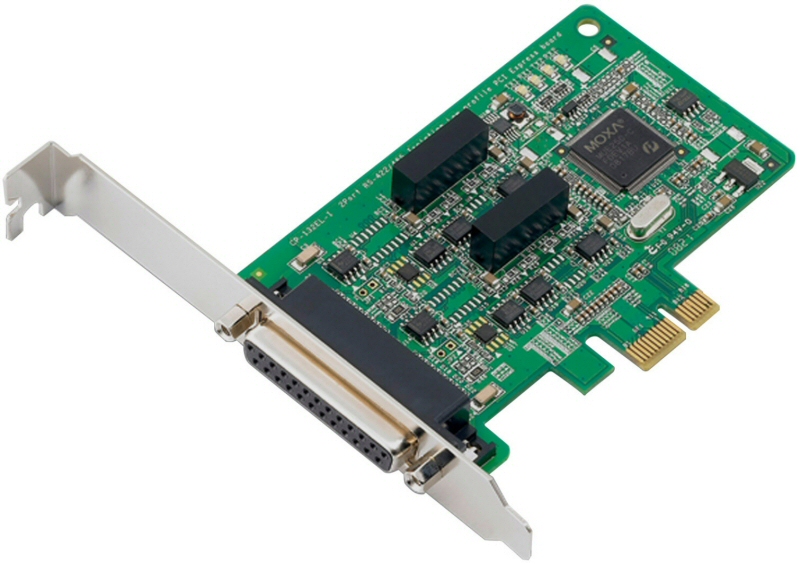

>visionsystems.de/CP-132EL-I PCIex (4773)   Main Features PCI Express x 1 2x RS422/485 with optical isolation RS485 ADDC (Automatic Data Direction Control) RS485 in 2 operation modes Compact board size (half-size) Built-in termination resistors Drivers for Windows 2000 to 10/Server 2019       Inquiry PDF CP-132EL-I PCIex Quick Link: | Main Features | More Pictures | Overview | Hardware Specifications | High Performance Features | Operating Systems | Dimensions | Standards | MTBF (Mean Time Between Failures) | Warranty | Ordering Information | Packaging | |   More Pictures    Click on the thumbnails to enlarge them … >Back to top         Overview The CP-132EL-I PCIex is designed for RS422/485 industrial communication. It supports 2 independent RS422 or RS485 ports. Each port can be configured separate. Available modes : RS422 fullduplex RS485 full duplex (4 wire) RS485 half duplex (2 wire). In RS485 modes applications enable transmission by simply sending data. This is done by ADDC (Automatic Data Direction Control). The Transmitter is disabled with the end of the last character sent. No modification is necessary in programs. In addition built-in termination resistors guarantee data integrity. All of these features make CP-132EL-I PCIex suitable for harsh industrial applications.   Hardware Specifications Ports 2x RS422/485 (RxD, TxD, GND) With independent 2kV optical isolation UART 2x 16C550 compatible (128 Byte FIFO) Address Plug and Play Interrupts PCI Plug and Play, only one interrupt per card Speed max. 921 kbps Bus interface PCI Express x1 Connectors 1x DB25, adapter cable Temperature 0°C - 55°C >Back to top         High Performance Features Speed 50 bps up to 921 kbps, (supports non-standard baudrates) >Back to top         Operating Systems Windows 2000 up to 10 Serial driver, x86 and x64 Editions Server 2003 up to 2019 Serial driver, x86 and x64 Editions Linux Kernel 2.4.x upto 5.x serial driver >Back to top         Dimensions Card Size L115.4mm × H67.21 mm Card Weight 50g Cable Weight 60g Box Size L280mm × W198mm × H58mm Box Weight 200g >Back to top         Standards Declarations CE, FCC EMC EN 55032/24 EMI CISPR32, FCC Part 15 B Class B EMS IEC 61000-4-2 ESD: Contact: 4kV; Air: 8kV IEC 61000-4-3 RS: 80 MHz to 1GHz: 3V/m IEC 61000-4-4 EFT: Power: 1kV; Signal: 0.5kV IEC 61000-4-5 Surge: Power: 2kV IEC 61000-4-6 CS: 150kHz to 80MHz: 3V/m; Signal: 3V/m IEC 61000-4-8 PFMF >Back to top         MTBF (Mean Time Between Failures) MTBF 190 years Standard Telcordia (Bellcore) Standard TR/SR >Back to top         Warranty Warranty Period 4 years >Back to top         Ordering Information 4773 CP-132EL-I PCIex >Back to top         Packaging Packing list CP-132EL-I PCIex card Extra bracket for Low Profile cases CD, English documentation >Back to top
