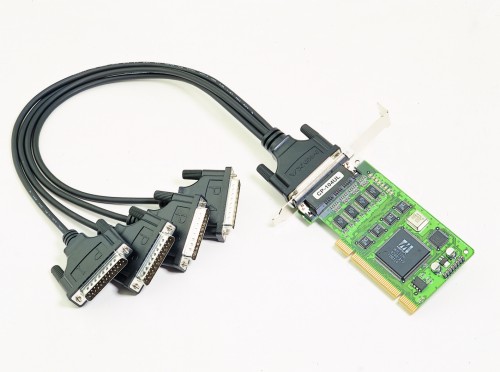

>visionsystems.de/CP-104UL PCI (726)   Main Features 4x RS232 32-bit universal PCI Supports 64 Byte FIFO Driver Embedded 16KV ESD protection Low Profile format Supports 4 independent RS232 serial Ports Supports Universal PCI 3.3V/5.0V       Inquiry PDF CP-104UL PCI Quick Link: | Main Features | More Pictures | Overview | Specification | Hardware | Interface | Performance | Configuration | Power and Environment | Ordering Information | Packaging | Download | |   More Pictures Click on the thumbnails to enlarge them … >Back to top         Overview The CP-104 Universal PCI series is designed for new slot standard expansion Boards and works with both 3.3V and 5.0V server slots.CP 104UL offers 4 independent RS232 Ports for connecting data aquisition equipment and many other serial devices to PC an   Specification   Hardware I/O controller 4x 16C550C or compatible Connector type Male DB9 >Back to top         Interface Bus interface 32-bit Universal PCI, for 3.3V and 5.0V expansion Slots Serial interface RS232 No. of ports 4 Signals RS232 Tx, Rx, CTS/RTS, DTR, DSR, DCD, GND >Back to top         Performance Speed 50 - 921.6 Kbps Max. no. of ports 16 (4 boards) >Back to top         Configuration Parity None, even, odd, space, mark Data bits 5, 6, 7, 8 Stop bits 1, 1.5, 2 IRQ Assigned by BIOS I/O address Assigned by BIOS >Back to top         Power and Environment Power requirement 235mA max.(+5V) Operation temp. 0°C - 55°C Dimension 120mm x 65mm Low Profile Isolation Protection 16KV ESD protection Operating Systems supported Vista, XP, Windows 2000, Windows NT, Windows 95/98/ME, Linux >Back to top         Ordering Information 726 CP-104UL PCI >Back to top         Packaging Packing list CP-104UL PCI Software CD, English documentation 4 Port DB9 male connection cable 80mm Low Profile Bracket 121mm Standard Bracket >Back to top       Download   Connectors  (Pinout DB37, DB25) >Back to top
