Multi-Core Compact Series
Systems designed for small case size and rough Industrial Environment. The performance of Multi-Core processors operates effective with multi-threaded software.
|
|
|
 |

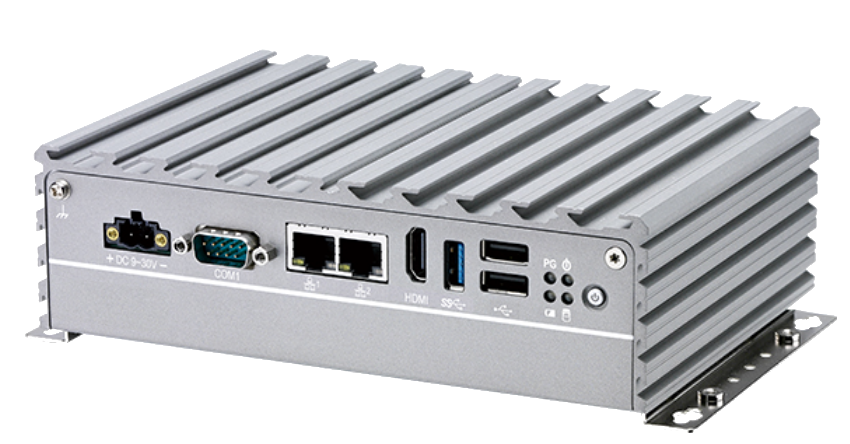

TaskRunner 105-E3845 (NISE 105-E3845)
|
|
 |
|
Main
Features:   | Intel Atom E3845 Quad Core 1.91GHz fanless |
  | 4GB DDR3L |
  | 2x GbE LAN / 2x USB 2.0 /1x USB 3.0 |
  | 2x RS232, 2x RS232/422/485 |
  | 1x DVI, 1x HDMI dual independent Displays |
  | Operating temperature: -5°C - 55°C |
  | external Cfast socket / HDD Space |
|
 |
|
 |
|
|
 |
TaskRunner 105U (NISE 105U) New
|
|
 |
|
Main
Features:   | Intel Celeron J1900 Quad Core 2.42GHz fanless |
  | 8GB DDR3L |
  | 2x GbE LAN / 2x USB 2.0 /1x USB 3.0 |
  | 2x RS232, 2x RS232/422/485 |
  | 1x DVI, 1x HDMI dual independent Displays |
  | Operating temperature: -5°C - 55°C |
  | M.2 SSD socket / HDD Space |
|
 |
|
 |
|
|
 |
EmRunner 5508
|
|
 |
|
Main
Features:   | Intel Atom E3845 1.91GHz without fan, inkl. 4GB DDR3 |
  | 1 x VGA / 1 x HDMI |
  | 2 x GigaLAN / 4 x USB 2.0 / 1 x USB 3.0 |
  | 2x RS232, 2xRS232/422/485 |
  | CFAST and SD Card Adapter |
  | 2 x Mini PCIe socket |
  | 12-24V DC |
|
 |
|
 |
|
|
 |
FlexRunner 3435 New
|
|
 |
|
Main
Features:   | Intel Celeron J1900, 2.0GHz Quad Core, 4GB DDR3L |
  | VGA, 3 x Gigabit Ethernet |
  | 3 x USB 2.0 / 1 x USB 3.0 |
  | 2 x RS232/485 |
  | 1 x MiniPCIe Socket, 1 x M.2 socket |
  | Power supply DC 12-24V 15W |
  | Dimensions 106.0mm x 85.0mm x 30mm |
|
 |
|
 |
|
|
 |
FlexRunner 3436
|
|
 |
|
Main
Features:   | Intel Atom E3845, 1.91GHz Quad Core, 4GB DDR3L |
  | VGA, 3 x Gigabit Ethernet |
  | 3 x USB 2.0 / 1 x USB 3.0 |
  | 2 x RS232/485 |
  | 1 x MiniPCIe Socket, 1 x M.2 socket |
  | Power supply DC 12-24V 15W |
  | Dimensions 106.0mm x 85.0mm x 30mm |
|
 |
|
 |
|
|
 |
FlexRunner 2516
|
|
 |
|
Main
Features:   | Intel Celeron J1900, 2.0GHz Quad Core, 2GB DDR3 |
  | VGA /HDMI |
  | 4 x GLAN / 3 x USB 2.0 / 2 x RS232/485 |
  | 2 x MiniPCIe Socket + 1 x SIM |
  | HDD Space S-ATA |
  | Power supply DC 12V |
  | Dimensions 210.0mm x 125.0mm x 55mm |
|
 |
|
 |
|
|
 |
EmRunner 5326 DIN RAIL
|
|
 |
|
Main
Features:   | Intel Atom N2600, 1.6GHz Dual-Core, without fan, 2GB DDR3 |
  | 2 x GigaLAN / 4 x USB 2.0 / VGA |
  | 1x RS232/422/485, 1x RS232/422/485/CAN |
  | 1x Digital I/O terminal block, 1x Line-out |
  | MiniPCIe Socket + SIM |
  | CFast Adapter, HDD Space SATA |
  | 9-32V DC terminal block |
|
 |
|
 |
|
|
 |
EmRunner 5408
|
|
 |
|
Main
Features:   | AMD G-T40E Dual Core, 1.0GHz fanless, 4GB DDR3L, VGA |
  | 2 x GigaLAN / 6 x USB 2.0 |
  | 2 x RS232, 4 x RS232/422/485 |
  | Mini PCI Express Socket |
  | CFast Flash card Adapter |
  | Supports Windows XP / 7 / 10 |
  | 19-inch mounting option (130×200×52) |
|
 |
|
 |
