Main Features

  • 1 Port serial
  • 3.3V signal level
  • 5V USB output
  • Speed up to to 3000 kbps
  • no external power supply


Vscom USB-COM TTL, an USB to TTL serial port converter New




VScom USB-COM TTL

Quick Link: | Main Features | More Pictures | Overview | USB Interface | Serial Interface | Software | Power Requirement | Housing and Mounting | Environmental Data | Standards | Warranty | Ordering Information | Packaging | Download |

|

  More Pictures

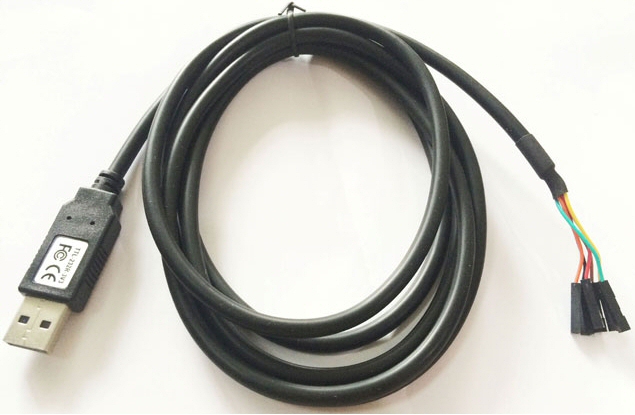

Vscom USB-COM TTL, an USB to TTL serial port converter
Click on the thumbnails to enlarge them …

>Back to top

  Overview

Serial ports on USB allow further use of existing devices, even when the computer doesn't offer serial ports.
The high speed serial port with the 128 byte FIFO allow high speed communication, even in heavy loaded systems. Unique features reduce the system load. The serial port also allows unusual speed settings like 500.000bps.
USB-COM TTL provides signals on 3.3V TTL level for special applications.

  USB Interface

USB-Input

USB 2.0 Full Speed, USB 1.1 compliant

Connector

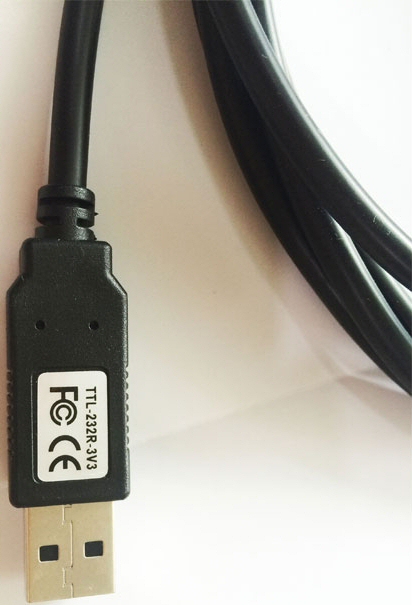

USB type A on fixed cable

Circuits

FTDI FT232R

>Back to top

  Serial Interface

No. of Ports/Type

1 x TTL

Connector

Separate Pins

Signals

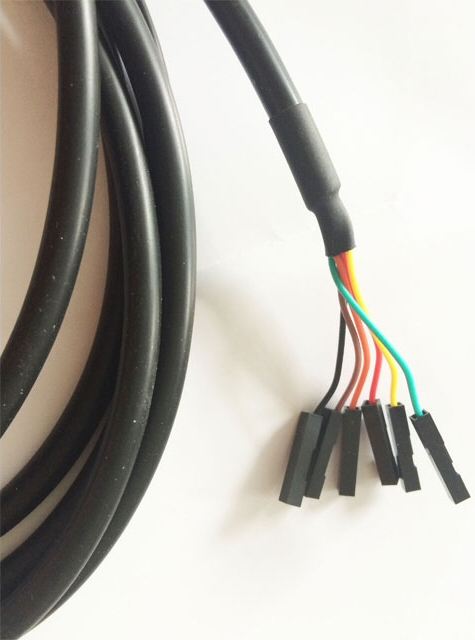

CableColourSignalVoltage
1BlackGNDGND
2BrownCTS3.3V
3RedVCC5V (USB)
4OrangeTxD3.3V
5YellowRxD3.3V
6GreenRTS3.3V

Data Bits

7, 8

Stop Bits

1, 2

Parity

None, Even, Odd, Mark, Space

Flow Control

RTS/CTS, XON/XOFF

Baudrate

180bps 3000kbps

>Back to top

  Software

Drivers

  • Windows 2000 to Windows 10 (x86 and x64)
  • Windows Server 2000 to 2012 (x86 and x64)
  • Linux (Kernel 2.6 and later built-in)
  • Mac OS X

Installation

The driver is already installed (Linux), or installs by automatic Download after Device connection (Windows).

>Back to top

  Power Requirement

Input Voltage

5V (USB)

Power Consumption

5V @40mA max, 0.2W

Connector

USB Type A, bus powered, no external supply

>Back to top

  Housing and Mounting

Case

molded plastic

Weight

45g

Dimensions

34×65×18 mm³ (W×L×H)

Mounting

Desktop use

>Back to top

  Environmental Data

Operating Temp

−25°C – 75°C

Storage Temp

−30°C – 85°C

Ambient Humidity

5-95% non condensing

>Back to top

  Standards

Declarations

CE, FCC

EMI

  • EN 55022
  • 47 CFR FCC Part 15 Subpart B

EMS (EN 55024)

  • EN 61000-4-3: Radiated RFI
  • EN 61000-4-8: Power Frequency Magnetic Field

ESD

EN 61000-4-2 4kV contact 8kV air for Serial Port

>Back to top

  Warranty

Warranty Period

2 years

>Back to top

  Ordering Information

649

VScom USB-COM TTL

>Back to top

  Packaging

Packing list

  • VScom USB-COM TTL Adapter
  • USB cable 1,8m fixed

>Back to top

Download


 (v2.12.28 August 2017)
 (v2.08.30 July 2013)
 (Windows 2000 to 10)
 (Easy configuration and more)
 (CDM Installation executable (Oct. 22 2009))
 (Release 1.00.00+1.00.906 (Nov. 29 2005))
 (More easy configure driver options in Windows)
 (Pinout DB9)
