>visionsystems.de/VScom USB-COM 25 (618)


Main Features

  • RS232 DB25 male port
  • Speed up to 500 kbps
  • no external power supply

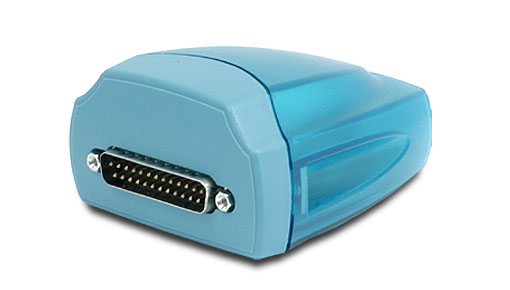

Vscom USB-COM 25, an USB to RS232 serial port converter DB25 connector




VScom USB-COM 25

Quick Link: | Main Features | More Pictures | Overview | Hardware Specifications | Ordering Information | Download |

|

  More Pictures

Vscom USB-COM 25, an USB to RS232 serial port converter DB25 connector
Click on the thumbnails to enlarge them …

>Back to top

  Overview

Serial ports on USB allow further use of existing devices, even when the computer doesn't offer serial ports.
The high speed serial port with the 128 byte FIFO allow high speed communication, even in heavy loaded systems. Unique features reduce the system load. The serial port also allows unusual speed settings like 500.000bps.

  Hardware Specifications

Serial interface

  • 1 x RS232
  • Connector DB25 male
  • Speed up to 500 kbps
  • Signals TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

USB Interface

USB 2.0

  • Bus powered
  • No external power supply

Driver

  • Windows 2000 to Windows 10 (x86 and x64)
  • Windows Server 2000 to 2012 (x86 and x64)
  • Also Windows 98/SE/ME.
  • Linux (Kernel 2.6 built-in, 2.4 available)

>Back to top

  Ordering Information

Part Number

618

Product Name

VScom USB-COM 25

Packing list

  • VScom USB-COM 25 Adapter
  • USB cable 0,9m

>Back to top

Download


 (v2.12.28 August 2017)
 (v2.08.30 July 2013)
 (Windows 2000 to 10)
>Back to top
