>visionsystems.de/VS-Assistant Vortex 800 (2236)


Main Features

  • CPU Vortex86DX 800MHz fanless
  • DRAM 128MB DDR2 on Board
  • 128MB NAND Flash on Board
  • 1 x RS232, 1 x RS232/485, 1x LPT
  • 1 x Realtek LAN 10/100Mbps
  • Compact Flash Socket
  • Low Power System only 15W
  • PC-Chassis 3 Slot ISA, 40W Power supply
  • Dimension 88 x 195 x 218mm
  • ISA BUS, 2 x ISA Slots free for additional cards

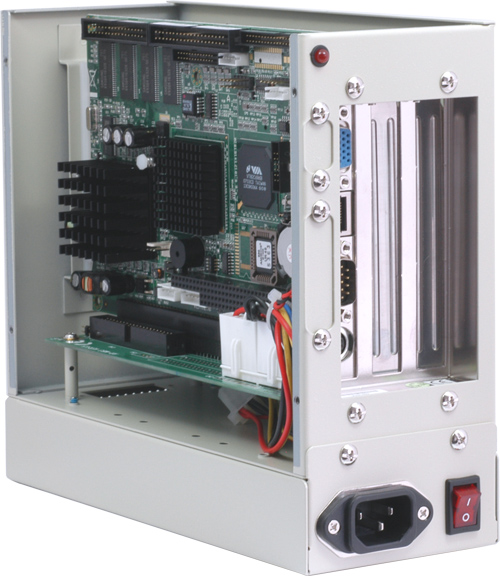

VS-Assistant Vortex 800




VS-Assistant Vortex 800

Quick Link: | Main Features | More Pictures | Overview | Hardware/Spec. | Environment | Supported OS | Ordering information |

|

  More Pictures

VS-Assistant Vortex 800
Click on the thumbnails to enlarge them …

>Back to top

  Overview

Small, powerfull and expandable system, fanless, for harsh industrial environments, for automation, robot- and POS-systems

Connectivity and Expansion

The connectivity includes 2x GbE LAN ports, 2x COM ports, and 1x CF socket. Fast serial interfaces like USB 2.0 and PCI slots facilitate the flexible expansion of system's capabilities.
90-260V AC input power supply, wide operating temperature range and ruggedized compact steel housing recommend it for deploying in harsh industrial environments.
Variations possible!

  Hardware/Spec.

CPU

Vortex86DX 800MHz

Chipset

VDMP Vortex86DX

SDRAM

128MB DDR2 On-Board

Compact Flash

1 x Compact Flash Socket

VGA

CRT/LCD 1MB to 4MB shared memory

LAN

10/100 Base-T, RTL8100C

Ports

1x RS232, 1 x RS232/485, 1 x LPT

USB

2 x USB 1.1 header

Flash

128MB NAND Flash On-Board

Watchdog

Programmable watchdog timer

BUS interface

ISA BUS, 2 x ISA Slot free for addtional card

BIOS

AMI Flash BIOS

System

Complete built, tested and bootable, optional with Operating System

Mounting

Wallmount or desktop application
Mount holes for 2.5" HDD

Dimension

88mm x 195mm x 218mm

Contruction

heavy-duty steel

Power supply

40W

Power consumption

only 20W

>Back to top

  Environment

Operating Temp.

0°-60°C

Storage Temp.

-20°-80°C

>Back to top

  Supported OS

Windows

Windows 98SE, 2K, XP,Xpe, CE

Linux

Kernel 2.6

>Back to top

  Ordering information

Part Number

2236

Product Name

VS-Assistant Vortex 800

Packing list

complete bootable system
power cord
two wallmount rails

>Back to top

* Specifications are subject to change without notice.
* All trademarks and brands are property of their rightful owners.
