>visionsystems.de/VS-2646A (3011)


Main Features

  • Intel Pentium-M 1.6GHz fanless
  • one SoDIMM socket supporting up to 1GB
  • Onboard Intel 855GME chipset, CRT
  • 2 x IDE, 1 x CF socket
  • 10/100/1000Mbps LAN Onboard
  • Built-in 4 x USB ports with two 10-pin header

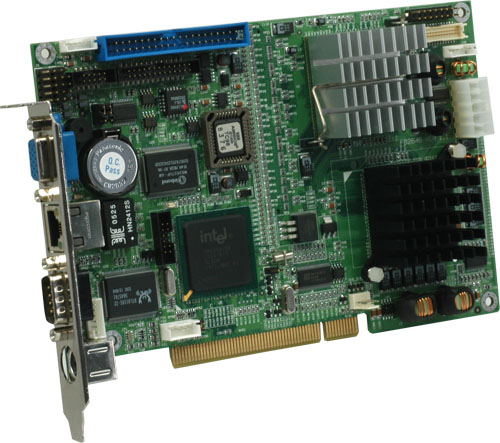

VS-2646A




VS-2646A

Quick Link: | Main Features | More Pictures | Overview | Hardware Specifications | Ordering Information |

|

  More Pictures

VS-2646A
Click on the thumbnails to enlarge them …

>Back to top

  Overview

A wide range of PCI Single Board designed to meet the high performance, applied computing requirements today! Fan less

  Hardware Specifications

CPU

Intel Pentium-M 1.6GHz

Chipset

Intel 855GME + ICH4

VGA

Chipset integrated

Bus Interface

PCI Bus

Memory

one SoDIMM socket supports up to 1GB max.

BIOS

AMI Flash BIOS, incl. VGA/LCD and LAN boot-ROM

IDE Interface

2 PCI IDE, one 40-pin

LAN

Realtek RTL8110s Chipset 10/100/1000Mbps, Base-Tx Ethernet with Rj-45 connector onboard

Serial Port

1 x RS232, 1 x RS232/422/485 serial port

Parallel Port

Supports one parallel port SPP/EPP/ECP

USB

4 x USB ports with 10-pin header

Socket

one socket for Compact Flash

Keyboard/Mouse

6-pin 2.0mm JST connector
6-pin Mini DIN connector PS/2 for Keyboard or Mouse

Watchdog

Programmable watchdog timer

Power Req.

+5V 4,2A and +12V 0.1A

H/W monitoring

supports CPU/Chassis temperature, Main/Aux.powers and CPU Chassis cooling fan

Operating Temp.

0 to 45 celsius degree (149 degree F.)

Storage Temperature

-25 to 80 celsius degree

Cache

internal 1MB L2 Cache, Integrated in the CPU

Dimensions

185 mm x 122 mm

>Back to top

  Ordering Information

Part Number

3011

Product Name

VS-2646A

Packing list

Cable HDD cable 670mm, Parallel port and Com port, Y cable for PS/2 Keyboard, Mouse 150mm
Disk Novell network drivers
IBM network drivers
Microsoft and Unix network drivers
