Main Features

  • USB 2.0 to 16 x RS232
  • High-Speed serial ports 921.6kbps
  • Driver for Windows, Linux, Mac OS X
  • LEDs for Power and TxD/RxD activity
  • ESD protection on USB and serial ports
  • Wide range of power input 9 - 54V DC
  • Metal housing
  • 19-inch rack and wall mounts
  • Wide range of operating temperatures


VScom USB-16COM Plus 232, a sixteen port USB-to-Serial adapter for RS232 New




USB-16COM Plus 232
(USB-16COM-RM)

Quick Link: | Main Features | More Pictures | Overview | USB Interface | Serial Interface | Software | Power Requirement | Housing and Mounting | Environmental Data | Standards and Certifications | MTBF (Mean Time Between Failures) | Warranty | Ordering Information | Options | Packaging | Download |

|

  More Pictures

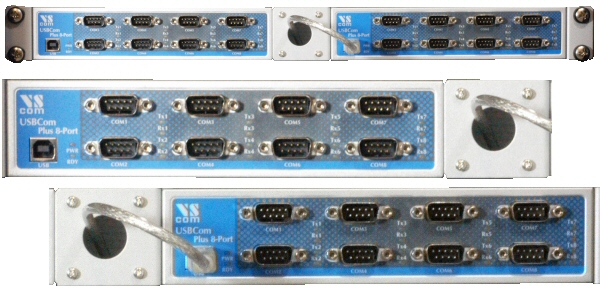

VScom USB-16COM Plus 232, a sixteen port USB-to-Serial adapter for RS232
Click on the thumbnails to enlarge them …

>Back to top

  Overview

The USB-16COM Plus 232 provides easy serial port expansion over USB 2.0 connecting to high speed RS232 devices. The device is fully ESD and surge protected, bus powered and accommodated in a ruggedized metal housing. Furthermore, it can operate across a large range of temperature levels to cope with harsh operating conditions. Actually it is a combination of two USB 8COM Plus 232 devices, mounted as a pair via a special Rack Mount kit. Lastly, both DIN-Rail and wall-mounting options are available.

  USB Interface

USB-Input

USB 2.0 High Speed, USB 1.1 compliant

Connector

USB type B

Circuits

FTDI FT4232H
Genesys GL850G

>Back to top

  Serial Interface

No. of Ports/Type

16 x RS232

Connector

DB-9 male

Protection

16kV ESD surge protection

Signals

TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

Data Bits

7, 8

Stop Bits

1, 2

Parity

None, Even, Odd, Mark, Space

Flow Control

RTS/CTS, XON/XOFF

Baudrate

180bps - 921.6/1000kbps

LEDs

TxD/RxD for each port

Connector

USB 2.0 High Speed type A, 500mA @5V at rear side

Expansion Ports

connect USB-xCOM Plus to add more serial ports, also electrically isolated

>Back to top

  Software

Drivers

  • Windows 2000 to Windows 10 (x86 and x64)
  • Windows Server 2000 to 2016 (x86 and x64)
  • Linux (Kernel 2.6 and later built-in)
  • Mac OS X

Installation

The driver is already installed (Linux), or installs by automatic Download after Device connection (Windows).

>Back to top

  Power Requirement

Input Voltage

9-54V Dcin

Power Consumption

Self powered: DCin 9 - 54V, 10W
Sum of both USB-8COM Plus 232 modules
Plus 3W for Port Expansion

Connector

Self powered: 3-Pin Terminal Block

>Back to top

  Housing and Mounting

Case

0.8mm sheet metal

Weight

1.9kg, w/h box 3.0kg

Dimensions

437×147×44 mm³ (W×L×H)

Packaged

310×192×120 mm³

Mounting

19-inch Rack

>Back to top

  Environmental Data

Operating Temp

−25°C - 75°C

Storage Temp

−30°C – 85°C

Ambient Humidity

5-95% non condensing

>Back to top

  Standards and Certifications

Declarations

CE, FCC

EMI

  • EN 55022 Class B
  • EN 61000-3-2: Limits of harmonic current emissions
  • EN 61000-3-3: Limitation of voltage changes
  • 47 CFR FCC Part 15 Subpart B

EMS (EN 55024)

  • EN 61000-4-3: Radiated RFI
  • EN 61000-4-4: Electrical Fast Transient
  • EN 61000-4-5: Surge
  • EN 61000-4-6: Induced RFI
  • EN 61000-4-8: Power Frequency Magnetic Field
  • EN 61000-4-11: Power supply dips

ESD

EN 61000-4-2 4kV contact 8kV air for

  • Serial Ports
  • USB
  • DCin Power connector

>Back to top

  MTBF (Mean Time Between Failures)

MTBF

20.0 Years @ 25°C
11.5 Years @ 45°C

Standard

Telcordia (Bellcore) Standard; RelCalc. 5.0 BELL-7

>Back to top

  Warranty

Warranty Period

2 years

>Back to top

  Ordering Information

6624

USB-16COM Plus 232 (16x RS232, non-isolated, expandable)

>Back to top

  Options

6031

DC Power supply adapter 12V @ 1A

6061

DB9F-to-RJ45 for changing from DB9 to CAT5 wiring

6062

RJ45-to-DB9M for changing back from CAT5 to DB9 wiring
(Required to match the DB9 pinout at USB-xCOM Plus)

661

Serial Null-Modem adapter 9PF-9PF, change male to female

>Back to top

  Packaging

Packing list

  • 2x USB-8COM Plus 232 devices
  • USB 2.0 High-Speed cable
  • RK-NCP Mounting kit for 19-inch rack
  • Terminal block for Power Supply
  • 8 rubber feet for table mode

>Back to top

Download


 (v2.12.28 August 2017)
 (v2.08.30 July 2013)
 (Windows 2000 to 10)
 (Easy configuration and more)
 (Edition July 2017)
>Back to top

* Specifications are subject to change without notice.
