>visionsystems.de/TaskRunner VTC 2000 (3153)


Main Features

  • Atom 1.6GHz, N270 without fan
  • Intel 945GSE Chipset+ICH-7M
  • 1GB DDR2
  • 1x LAN / 3x USB 2.0 / Audio
  • 2x RS232, 1x RS232/485
  • Compact Flash Adapter / HDD Space
  • 2 x miniPCIe Socket
  • Dimensions 195 x 200 x 108mm

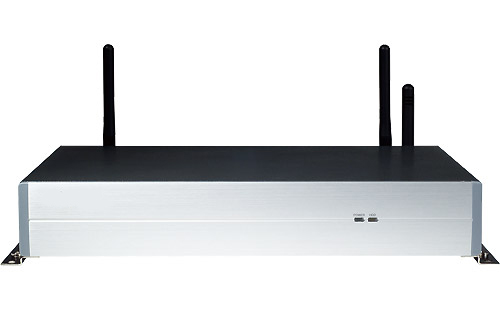

TaskRunner VTC 2000




TaskRunner VTC 2000

Quick Link: | Main Features | More Pictures | Overview | Chassis | Hardware | Memory | Video | Integrated Devices | I/O interface-Rear | Power consumption | Environment | supported OS | Ordering Information |

|

  More Pictures

TaskRunner VTC 2000
Click on the thumbnails to enlarge them …

>Back to top

  Overview

Targeting automotive applications the TaskRunner VTC 2000 with e13 certification. This CarPC has been designed for telematic and map-navigation applications, offering high shock resistance and low power consumption of max 20W from 12-24V sources.
Combinded with GPS position engine and HSDPA module it can be used for tracking and controlling truck operation and routing. Actual position and operating conditions are known for every vehicle at every time. Firmware updates and upload of operating data can be done using Wireless LAN or Blutooth when the vehicle returns to base location.

Certifications

- CE approval
- E13 mark
- EN50155

>Back to top

  Chassis

Construction

full size Aluminium

Cooling system

passive heatsink, fanless

LED indicator

Power on/off , HDD/CF access in front

Expansion slot

2 x miniPCIe Socket

Dimensions

195 x 275 x 44mm

Power switch

in front

>Back to top

  Hardware

Processor

Atom 1.6GHz

Front side BUS

533 MHz

BIOS

NA

Chipset

945GSE + ICH-7M

>Back to top

  Memory

Memory type

1 GB DDR2 (2GB max.)

Memory socket

1 x SoDIMM DDR2 533/667

>Back to top

  Video

VGA controller

embedded in Chipset Intel 945GSE

Interface

VGA, DVI-D

>Back to top

  Integrated Devices

HDD Bay

1 x 2.5" SATA HDD or SSD

Compact Flash

internal CF card socket
Optional 512MB, 1GB, 2GB, 4GB, 8GB Compact Flash Card

Watch dog Timer

Programmable watchdog timer, 1-63 sec.

>Back to top

  I/O interface-Rear

Specials

4x antenna hole WLAN, HSDPA, Bluetooth
1x GPIO

LAN

1 x RJ45, Giga LAN
supports PXE Boot from LAN

USB

3 x USB 2.0

VGA

1 x 15-pin connector
DVI-D

Com Ports total

3 x DSUB 9 male

Com Port Modi

2 x RS232 and 1 x RS232/485

Audio

Mic-in, Line-out

>Back to top

  Power consumption

average system only

NN

with power supply

NN

>Back to top

  Environment

Operating Temp.

−10°C - 45°C

Storage Temp.

&45;20°-&43;80°C

>Back to top

  supported OS

Windows

2K, XP, 7

Linux

Kernel 2.4 / 2.6

>Back to top

  Ordering Information

Part Number

3153

Product Name

TaskRunner VTC 2000

Packing list

TaskRunner VTC 2000 Embedded System
CD, English documentation

>Back to top

* Specifications are subject to change without notice.
* All trademarks and brands are property of their rightful owners.
