>visionsystems.de/TaskRunner 3800E Plus (NISE 3800E) (3639)


Main Features

  • Intel Core i7 2.4 up to 3.4 GHz fanless design
  • Intel Q170 PCH Chipset
  • 8GB DDR4 Memory
  • 3x GigaLAN / 4x USB 3.0 / 2x USB 2.0
  • DVI-D, HDMI and Display Port
  • 2x RS232/422/485
  • HDD Space, mSATA Slot, M.2 Slot
  • SIM card socket
  • PCIex4 Expansion Slot
  • Power Input 9V-30V


TaskRunner 3800E Plus (NISE 3800E)




TaskRunner 3800E Plus (NISE 3800E)

Quick Link: | Main Features | More Pictures | Overview | System | Storage | Expansion Options | Supported OS | Power Requirements | Housing and Mounting | Environmental Data | Standards | Warranty | Ordering Information | Options | Packaging |

|

  More Pictures

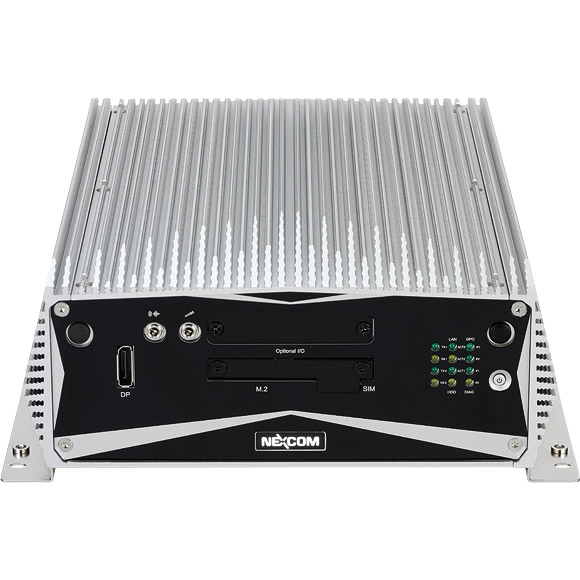

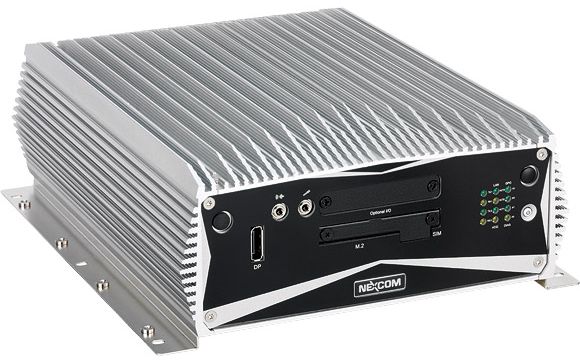

TaskRunner 3800E Plus (NISE 3800E)
Click on the thumbnails to enlarge them …

>Back to top

  Overview

With 6th generation Intel® Core™ i7 processor the TaskRunner 3800E Plus (NISE 3800E) fanless computer features Intel® Turbo Boost technology. Versatile graphics, large DDR4 memory, plenty of high-speed interfaces as well as its innovative mechanical design well suited for industrial applications which demand high CPU and graphics performance. Windows 7/10 and Linux are supported.

Computing Performance

The Intel® Core™ i7 CPU (4 cores at 2.4GHz with Turbo Boost at 3.4GHz) combined with up to 32GB high speed DDR4 memory assemble an affordable powerhouse for high demanding industrial applications.

Graphic Performance

The on-processor graphic unit supports Display Port, HDMI and DVI-D ports enabling dual independent digital displays simultaneously. On chip GPU also delivers graphics performance significantly faster than the previous generation making it the ideal centrepiece to power hungry graphical and image processing applications.

Rich Connectivity and Expansion

The connectivity includes 3x Intel® GbE LAN ports, 2x COM ports; the GbE LAN ports support WoL function. Fast serial interfaces like 4x USB 3.0 and 2x USB 2.0 plus 1x or 2x PCI or PCIe slots facilitate the flexible expansion of system's capabilities. Two Integrated Mini-PCIe slots can accommodate WLAN and 3G/4G-Modem cards, M.2 or an mSATA module for mass storage.
9-30V DC input power supply, wide temperature operating range and ruggedized compact aluminium housing recommend it for deploying in harsh industrial environments.

  System

CPU

Intel Core i7-6700TE Quad Core Processor
(8M cache, 2.4 Ghz, 3.4 GHz Turbo Boost)

Chipset

Intel Q170 PCH

Memory

8GB DDR4 (32GB max.)
2x 204-pin SO-DIMM

I/O Interface Front


1x Display Port
1x Line-out and 1x Mic-in
SIM Card holder
2x antenna holes
External M.2 slot
ATX power on/off switch
HDD/CFast access/power/LAN status LEDs

I/O Interface Rear


3x Intel® I210IT GbE LAN Ports ; Support WoL, Teaming and PXE
4x USB 3.0 ports
2x USB 2.0 ports
1x DVI-D, 1x HDMI
2x DB9 serial ports RS232/422/485
9-30V DC power input
2-pin remote power on/off switch

>Back to top

  Storage

HDD/SSD

1x 2.5" HDD (SATA 3.0) drive bay
1x mSATA (SATA 3.0), internal mini-PCIe socket
1 x M.2 (SATA 3.0), external slot

>Back to top

  Expansion Options

Expansion slots

1x PCIex4
2x internal Mini-PCIe socket support optional Wi-Fi/3.5G/mSATA/Fieldbus

>Back to top

  Supported OS

Microsoft

Windows 7 – 8.1, 10x64

Linux

Kernel 2.6 / 3.x

>Back to top

  Power Requirements

Input Voltage

9V - 30V DC on-board power support

Power Supply

AC to DC power adapter, 120W (19V DC)

Connector

3-pin Terminal Block

>Back to top

  Housing and Mounting

Case

Aluminum and Metal Chassis with fanless design

Weight

Gross Weight: 5.9kg
Net Weight: 4.5kg

Dimensions

215x 272x 93mm

Mounting

Wall Mount

>Back to top

  Environmental Data

Operating Temp.

−5°C – 55°C
according to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14

Storage Temp.

−20°C – 85°C

Ambient Humidity

10-93% non condensing

>Back to top

  Standards

Certifications

CE approval- EN61000-6-2- EN61000-6-4
FCC Class A

Shock Protection


HDD: 20G, half sine, 11ms, IEC60068-27

Vibration Protection with HDD Condition


Random: 0.5Grms @ 5~500 Hz, IEC60068-2-64
Sinusoidal: 0.5Grms @ 5~500 Hz, IEC60068-2-6

>Back to top

  Warranty

Warranty Period

2 years

>Back to top

  Ordering Information

3639

TaskRunner 3800E Plus (NISE 3800E)
(one PCIe x4 expansion slot)

3646

TaskRunner 3800E2 Plus (NISE 3800E2)
(two PCIe x4 expansion slots)

3648

TaskRunner 3800P2E Plus (NISE 3800P2E)
(one PCIe x4 and one PCI expansion slot)

3650

TaskRunner 3800P2 Plus (NISE 3800P2)
(two PCI expansion slots)

>Back to top

  Options

Mass Storage device

2.5 HDD SATA
2.5 SSD SATA
CFast Card
mSATA Card

>Back to top

  Packaging

Packing list

  • TaskRunner Embedded System
  • (incl. Intel Core i7 2.4GHz, 8GB DDR4 RAM)
  • Power Adapter, Driver CD, English documentation

>Back to top

* Specifications are subject to change without notice.
* All trademarks and brands are property of their rightful owners.
