>visionsystems.de/TaskRunner 2410E (NISE 2410E) (3632)


Main Features

  • Atom E3845 Quad Core 1.91GHz fanless
  • 4GB DDR3
  • 2 x GbE LAN / 4 x USB 2.0 / 1 x USB 3.0
  • 2 x RS232, 2x RS232/422/485
  • 1 x DVI-I, 1 x HDMI
  • External SIM card holder
  • Operating temperature: -20°C - 70°C
  • CFast Adapter / HDD Space / mSATA
  • 2 x miniPCIe Socket
  • Power Input 9V-30V


TaskRunner 2410E (NISE 2410E)




TaskRunner 2410E (NISE 2410E)

Quick Link: | Main Features | More Pictures | Overview | System | Storage | Expansion Options | Supported OS | Power Requirements | Housing and Mounting | Environment | Standards | Warranty | Ordering Information | Options | Packaging |

|

  More Pictures

TaskRunner 2410E (NISE 2410E)
Click on the thumbnails to enlarge them …

>Back to top

  Overview

With Intel® Atom Bay Trail Quad Core processor E3845 (1.91GHz), the TaskRunner 2410E (NISE 2410E) features computing power. Flexible graphics, large DDR3L memory, high-speed interfaces as well as its innovative mechanical design well suit it for performance applications, such as IoT factory automation and M2M interfacing, public infotainment and surveillance security. Windows 7/8 and Linux are supported.

Computing Performance

The Intel® Atom Bay Trail CPU (4 cores at 1.91GHz) combined with up to 8GB DDR3L memory assemble an affordable system for high demanding industrial applications.

Graphic Performance

The on-processor graphic unit supports 1x HDMI port plus 1x DVI-I port enabling up to 2 independent displays. Analogous VGA on DVI-I port can use analogous monitors.

Rich Connectivity and Expansion

The connectivity includes 2x Intel® GbE LAN ports, 4x COM ports, and 1x (front accessible) CFast socket; the GbE LAN ports support WoL function. Fast serial interfaces like 1x USB 3.0 and 4x USB 2.0 plus 1x PCIe or 2x PCI slots facilitate the flexible expansion of system's capabilities. Two Integrated Mini-PCIe slots can accommodate WLAN and 3G/4G-Modem cards, or an mSATA module for mass storage.
9-30V DC input power supply, very wide temperature operating range and ruggedized compact aluminium housing recommend it for deploying in harsh industrial environments.

  System

CPU

Intel Atom E3845 Quad Core processor, 1.91GHz, 2M Cache

Chipset

integrated in Intel E3845

Memory

4GB DDR3L 1066/1333MHz (8GB max.)
2x 204-pin SO-DIMM

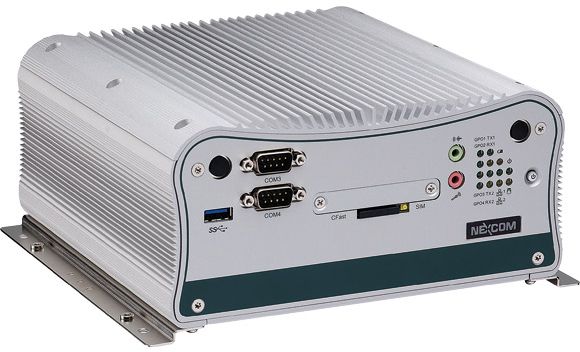

I/O Interface Front


1x USB3.0 port
2x serial port (RS232)
1x CFast socket
1x SIM card holder
1x Mic-in & 1x Line-out
2x antenna holes
ATX power on/off switch
HDD access/power status LEDs

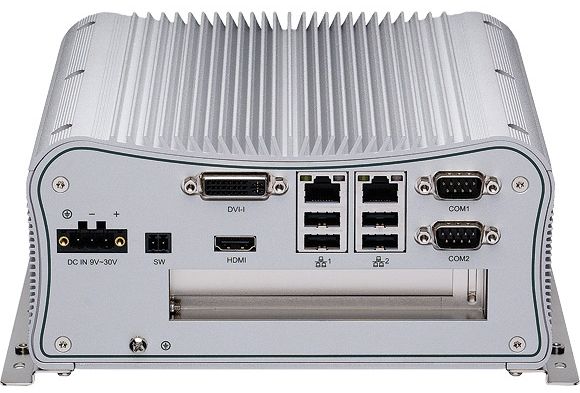

I/O Interface Rear


2x GbE LAN ports (Intel I210IT Chipset)
4x USB 2.0 ports
1x DVI-I, 1x HDMI port
2x serial port (2x RS232 and 2x RS232/422/485 with auto-flow control)
9-30V DC power input
remote power on/off switch

>Back to top

  Storage

HDD/SSD


1x 2.5" HDD space (SATA 2.0)
1x mSATA if SATA HDD is not installed

Flash

1x external CFast socket (SATA 2.0)

>Back to top

  Expansion Options

Expansion slot

Special Slots
1 x miniPCIe for Wifi/3G/4G
1 x miniPCIe for Wifi/mSATA
Standard Slots
1x PCIe x4 (TaskRunner 2410E)
2x PCI (TaskRunner 2420)

>Back to top

  Supported OS

Microsoft

Windows 7 – 10

Linux

Kernel 2.6 / 3.x

>Back to top

  Power Requirements

Input Voltage

9V - 30V DC on-board power support

Power Supply

AC to DC power adapter, 24V (60W)

Connector

3-pin Terminal Block

>Back to top

  Housing and Mounting

Case

Aluminum and Metal Chassis with fanless design

Weight

Gross Weight: 4kg

Dimensions

195x 200x 90mm (TaskRunner 2410E)
195x 200x 111mm (TaskRunner 2420)

Mounting

Wall Mount

>Back to top

  Environment

Operating Temp.

−20°C - 70°C

Storage Temp.

−30°C – 85°C

Ambient Humidity

10-95% non condensing

>Back to top

  Standards

Certifications

CE, FCC Class A

Shock Protection


HDD: 20G, half sine, 11ms, IEC60068-27
CFast: 50G, half sine, 11ms, IEC60068-27

Vibration Protection with HDD Condition


Random: 0.5Grms @ 5~500 Hz, IEC60068-2-64
Sinusoidal: 0.5Grms @ 5~500 Hz, IEC60068-2-6

>Back to top

  Warranty

Warranty Period

2 years

>Back to top

  Ordering Information

3632

TaskRunner 2410E (one PCIe x4 expansion slot)

3633

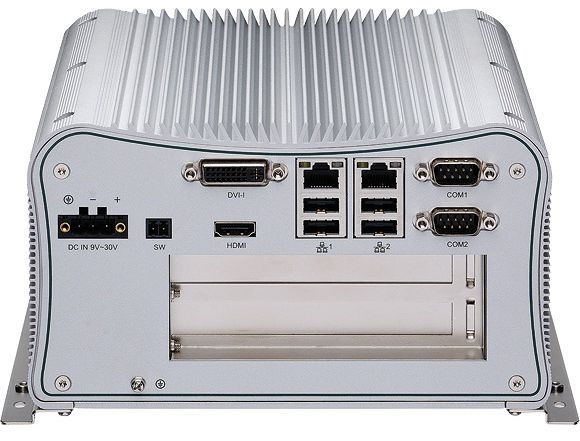

TaskRunner 2420 (two PCI expansion slots)

>Back to top

  Options

Mass Storage device


2.5 HDD SATA
2.5 SSD SATA
CFast Card
mSATA Card

>Back to top

  Packaging

Packing list

TaskRunner Embedded System
(incl. 4GB DDR3L RAM)
Power Adapter, Driver CD, English documentation

>Back to top

* Specifications are subject to change without notice.
* All trademarks and brands are property of their rightful owners.
Copyright © 2005-2019, VS Vision Systems GmbH. All Rights Reserved.
