Main Features

  • Intel Atom Z530P 1.6 GHz
  • 533MHz FSB
  • 512 MB DDR2 SDRAM
  • Express Card 34 slot (USB interface)
  • HD Audio, speaker and microphone
  • HDD/SSD drive bay
  • 2 x Giga LAN, 4 x USB 2.0
  • 2 x Com Port RS232, 1 x RS422/485
  • Digital and Analogue I/O
  • CAN Bus 1Mbit/s
  • Option: WLAN, Bluetooth, GPS, 3G/GSM

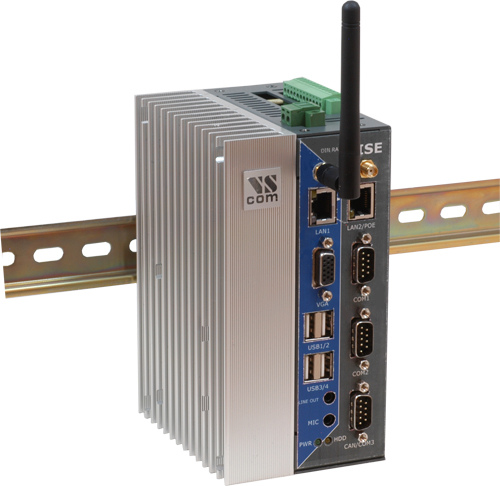

RISE 3310




RISE 3310

Quick Link: | Main Features | More Pictures | Overview | System | Storage | Expansion Options | Supported OS | Power Requirements | Housing and Mounting | Environment | Operating sysem | Warranty | Ordering Information | Options | Packaging |

|

  More Pictures

RISE 3310
Click on the thumbnails to enlarge them …

>Back to top

  Overview

The small and robust fan less embedded system RISE 3310 (DIN-Rail) uses VScom's Qseven-modules for the CPU core to take advantage of the latest processor technology towards smaller size, low power consumption and higher performance CPUs.
Plenty of modern interfaces as well as its small mechanical design well suit it for compact performance applications, such as Factory Automation Applications, Network Applications and Communication Applications.

Computing Performance

The Intel® Atom™ CPU (1.6 GHz) augmented by Intel® Hyper-Threading for 2 independent threads and combined with 512 MB DDR2 on board memory assembly an affordable system for compact demanding industrial applications.

Graphic Performance

The integrated graphic unit provides one VGA port. On chip GPU delivers graphics performance efficient for digital signage display and Video Playback.

Rich Connectivity and Expansion

The connectivity includes 2 x RJ45 GigaLAN, 3x COM port, CAN Port, 4x USB 2.0, Digital I/O, Express Card 34 slot, CF expansion slot and an 1.8" HDD/SSD bay. One integrated Mini-PCIe slot can accommodate WLAN (or 3G/4G-Modem) cards.
10-30V DC input power supply, wide temperature operating range and ruggerized compact aluminium housing recommend it for deploying in harsh industrial environments.

  System

CPU

Intel Atom Z530P @ 1.6GHz, 533MHz FSB

Cores

2 by Hyperthreading

CPU socket

Q7 module

Chipset

US15WP

HD-Audio

1 x Mic-in
1 x Speaker-out

Memory

DDR2 512MB soldered onto Q7 module

I/O Interfaces


1x VGA
2x RJ45 GigaLAN (Marvell 88E8057) support PXE boot
4x USB 2.0
1x CAN
2x RS232 DB9 male, max. 115.200bps
1x RS232 DB9 male, max. 500.000bps
1x RS422/485 on terminal block
   Up to 1 Mbit/s (theor. 12 MBit/s).
   RS422 Full-Duplex, RS485 bus mode configured by DIP switch
   RS485 Automatic Transceiver control
Digital I/O: Terminal Blocks on Top and Bottom side
   4 x Output
   4 x Input
   2 x Counter
   2 x ADC
   1 x I²C

>Back to top

  Storage

HDD/SSD

1 x 1.8" SATA HDD or SSD

CF card slot

1 x CF card in True IDE mode

>Back to top

  Expansion Options

Expansion slot

1 x Mini PCI Expres
1 x Express Card

>Back to top

  Supported OS

Microsoft

Windows XP/XPE, Windows 7

Linux

Kernel 2.4 / 2.6 / 3.x

>Back to top

  Power Requirements

Input Voltage

10V – 30V DC on-board power support

Connector

2-pin Terminal Block

Power Consumption

Average mode ca. 20W

>Back to top

  Housing and Mounting

Case

Aluminium/metal chassis with fanless design

Dimensions

163 x 111 x 83 mm³

>Back to top

  Environment

Operating Temp.

−20° to +60°C

Storage Temp.

−20° to +80°C

>Back to top

  Operating sysem

Microsoft

Windows XP/XPE, Windows 7

Linux

Kernel 2.4 / 2.6 / 3.x

>Back to top

  Warranty

Warranty Period

2 years

>Back to top

  Ordering Information

3883

RISE 3310 (Intel Atom Z530P 1.6 GHz)

>Back to top

  Options

Mass Storage device


1.8 HDD SATA
1.8 SSD SATA
CF Card

>Back to top

  Packaging

Packing list

RISE 3310 Embedded System
Terminal blocks for Digital-I/O and Power supply
CD-ROM with English documentation, drivers and tools

>Back to top
