>visionsystems.de/OPT Netzteil 12V US (6034)


Main Features

  • Wall Plug Power Adapter
  • 12V DC 1A
  • US Wall plug
  • For NetCom Plus and USB-COM Plus


Power Adapter 12V DC with US Wall plug New




OPT Netzteil 12V US

Quick Link: | Main Features | More Pictures | Overview | Power Specifications | Polarity | Housing | Standards | Ordering Information |

|

  More Pictures

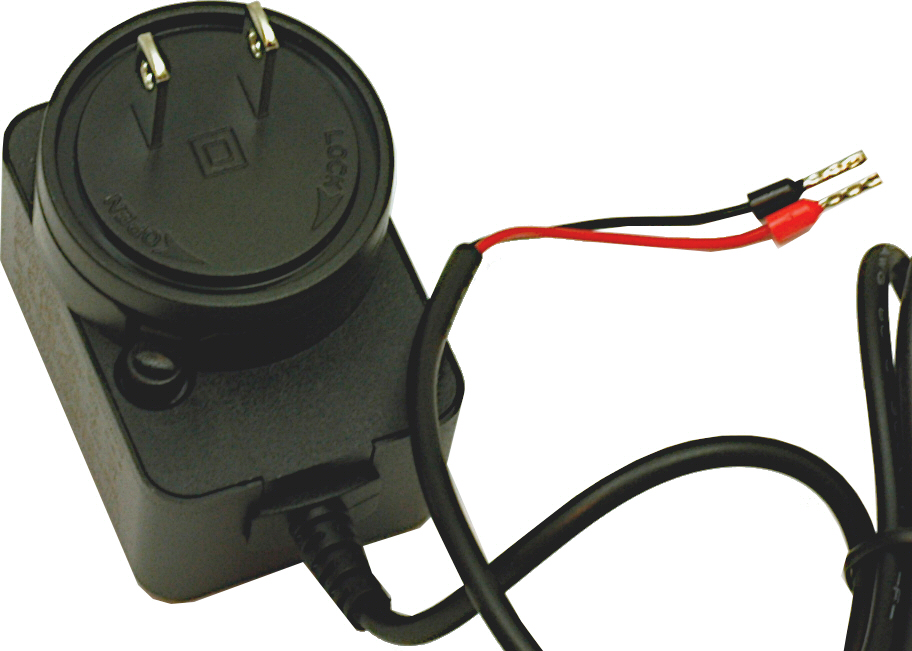

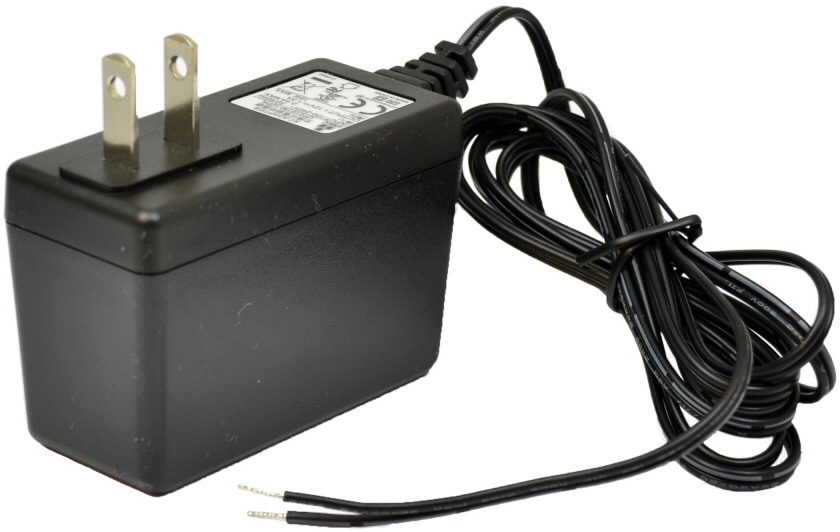

Power Adapter 12V DC with US Wall plug
Click on the thumbnails to enlarge them …

>Back to top

  Overview

Power Adapter 12V DC, specially configured to support NetCom Plus, NetCAN Plus, USB-COM Plus and SER-485 devices. Baltos systems and Routers are supported as well. The uncoated wire tips fit into the power connector terminal blocks of supported devices. This adapter is manufactured to fit US wall plugs for international installations.

  Power Specifications

Voltage

12V DC

Current

1.0 Ampere min.

>Back to top

  Polarity

Positive Line

Black, optional some text on the wire

Negtive (GND) Line

White Marks (long dashes) on the wire

>Back to top

  Housing

Case

Fully isolating plastic case

Weight

130 g

Dimensions

32×70×47 mm³ (W×L×H) plus socket plug

>Back to top

  Standards

Declarations

CE, FCC

Efficiency

Level (VI)

>Back to top

  Ordering Information

6034

OPT: Netzteil 12V US

Packing List

Power Adapter

>Back to top

* Specifications are subject to change without notice.
