>visionsystems.de/OFPPC 5110 (3823)


Main Features

  • 10.1" color TFT
  • Resolution 1024 x 600, resistive touch
  • Intel Atom D525 1.8 GHz
  • 1 GB DDR2 SDRAM
  • HD Audio, speaker and microphone
  • HDD/SSD drive bay, SD card slot
  • 2 x Giga LAN
  • Mini PCIe slot
  • 1 x RS232/422/485
  • 4 x USB 2.0
  • 10-30V DC supply
  • Option: WLAN, Bluetooth
  • Option: GSM/3G, GPS

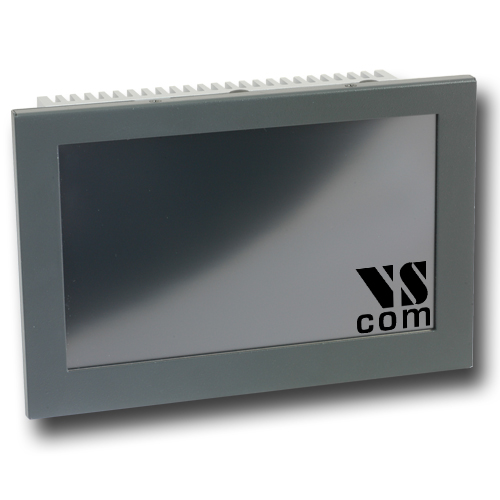

OFPPC 5110




OFPPC 5110

Quick Link: | Main Features | More Pictures | Overview | Chassis | Hardware | Memory | Video | Integrated Devices | Connectivity | Power supply | Environment | Supported OS | Ordering Information |

|

  More Pictures

OFPPC 5110
Click on the thumbnails to enlarge them …

>Back to top

  Overview

The OFPPC 5100 Open Frame Panel PC series of Embedded PC is designed for harsh industrial environments. It features fanless and cableless construction, low power consumption and operating over wide temperature ranges. Its reliable design allows to withstand mechanical vibrations, hot or cold environments, power failures or environmental electrostatic discharges.
The OFPPC 5100 series has a modular and reliable design based on the newly emerged standard of Qseven core modules. The Open Frame embedded systems support Intel's Atom D525 high performance CPUs.

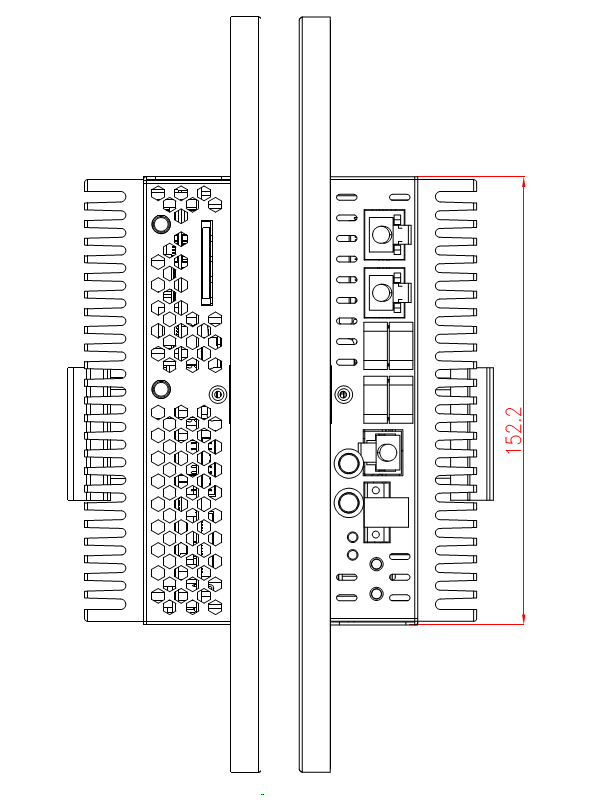

The OFPPC 5100 series integrates many standard connectivity devices in a compact construction, all connections placed on one side only. Available are double Gigabit LAN, USB, RS232/422/485 serial port and optionally WLAN, Bluetooth and a parallel port to match different industrial application requests. GSM/3G or GPS function are other options.

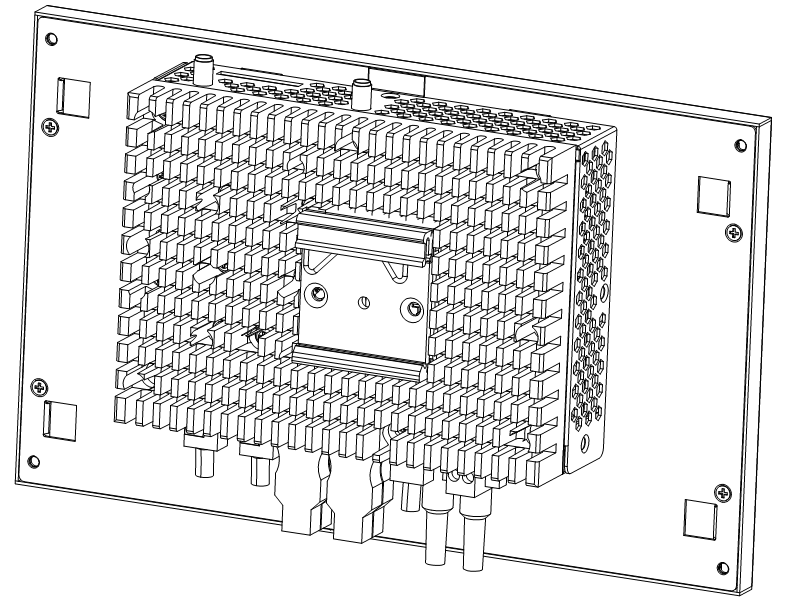

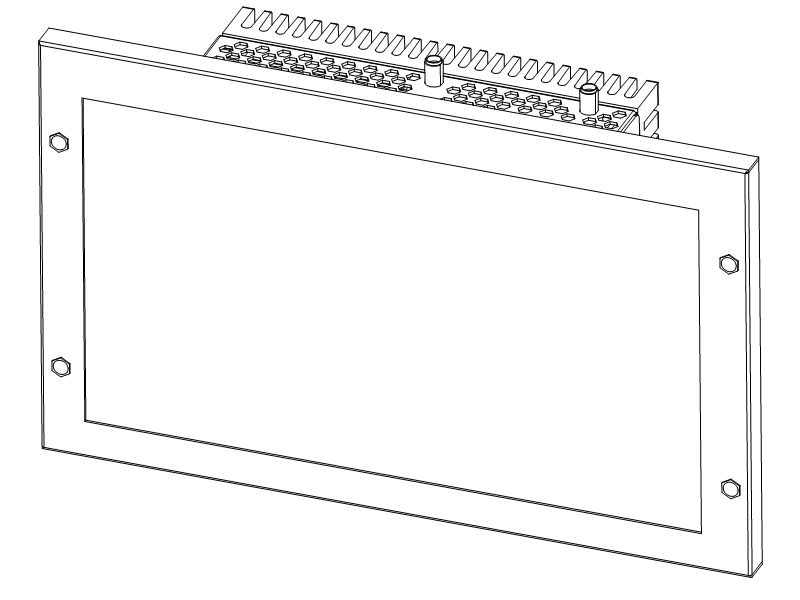

The complete OFPPC 5110 system is mounted on the back side of a 10.1" touch panel display. A heat spreader with cooling fins protects the back side of the construction. The OFPPC 5110 boot from an internal HDD or SSD, or even from a SD memory card in the internal slot.

  Chassis

Construction

Open Frame, Steel case holds the display
Aluminum cooling plate with fins

Cooling system

passive heatsink, fanless

LED indicators

Power on/off, HDD access, LAN access
Standby Power internally

Expansion slot

1 x Mini PCI Express
SIM slot for GSM/3G

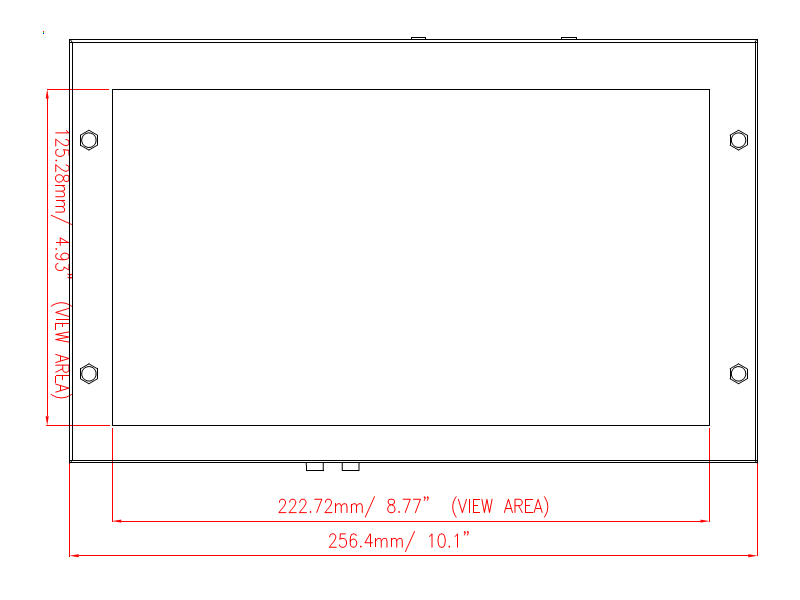

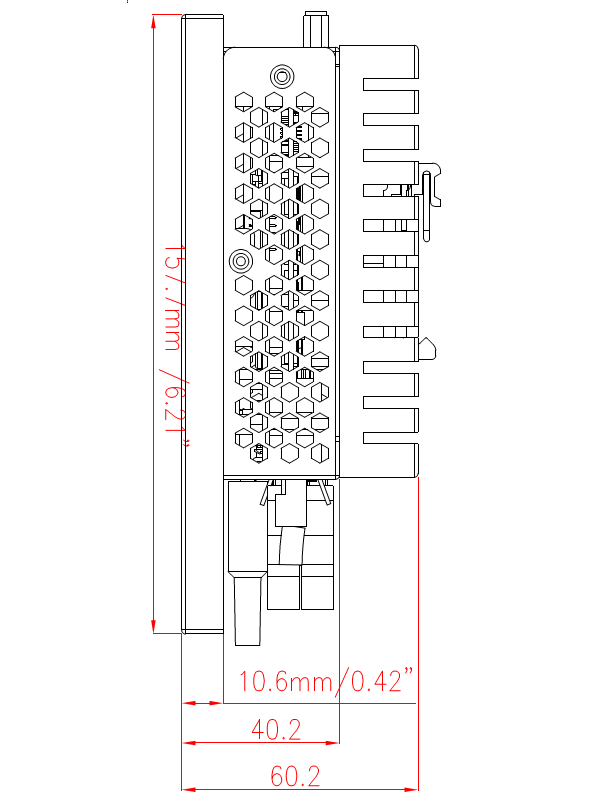

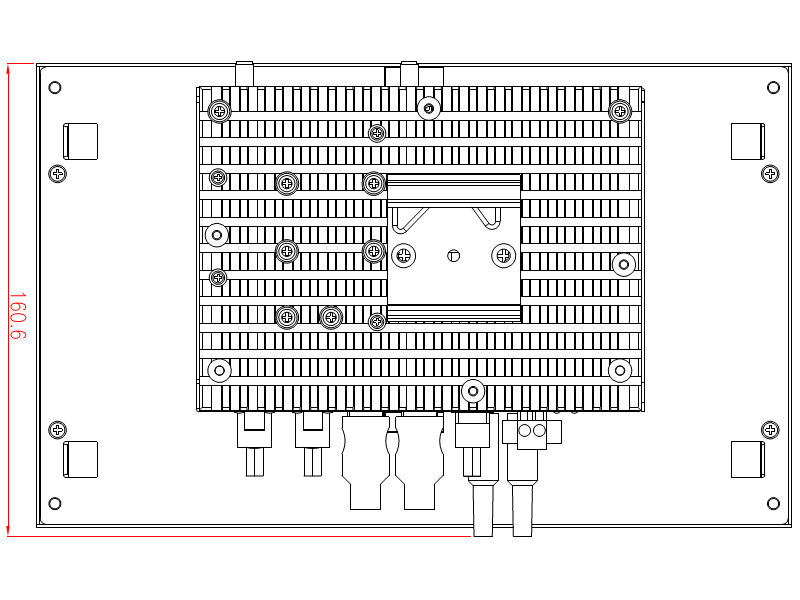

Dimensions

257 × 169 × 48 mm³ (W×H×D)

Power switch

Bottom side

Reset Switch

Bottom side

>Back to top

  Hardware

Processor

Intel Atom D525 @ 1.8GHz

Cores

2 (4 by Hyperthreading)

CPU socket

Q7 module

BIOS

Phoenix - Award BIOS

Chipset

ICH8M

>Back to top

  Memory

Memory type

DDR2 1 GB

Memory socket

soldered onto Q7 module

BIOS

8MBit SuperFlash

>Back to top

  Video

TFT Controller

GMA3150 GPU integrated in D525

Video RAM

up to 256MB frame buffer

Interface

LVDS

Size

10.1" display, 16:9

Resolution

Physical 1024 × 600
Logical up to 1366 × 768 / 32bit

Touch

Resistive Touchscreen

>Back to top

  Integrated Devices

HDD/SSD Bay

1 x 1.8" SATA HDD or SSD

SD Card

One slot for normal size SD memory card, bootable

HD-Audio

Realtek ALC888 HD Audio codec

Real Time clock

Standard

Keyboard/Mouse

USB-Support
Internal pin header for PS/2 function

Watch Dog Timer

Built in W83627H, for system reset or SMI

>Back to top

  Connectivity

LAN

2 x RJ45 GigaLAN
Realtek RTL8111E (support PXE boot)
Marvell 88E8057 (support PXE boot)

USB

4 x USB 2.0
supports boot function from USB

Com Ports

1 x RS232/422/485 on RJ45, max. 115.200bps

HD-Audio

Mic-in (Line-in)
Line-out ear-jet connectors

>Back to top

  Power supply

Power input

DC 10-30V

Power consumption

min 20W

>Back to top

  Environment

Operating Temp.

0° to +50°C

Storage Temp.

−20° to +80°C

>Back to top

  Supported OS

Microsoft

Windows XP/XPE, Windows 7

Linux

Kernel 2.6 / 3.x

>Back to top

  Ordering Information

Part Number

3823

Product Name

OFPPC 5110

Packing list

OFPPC 5110 Embedded System
Terminal block for Power supply
CD-ROM with English documentation, drivers and tools

>Back to top

* Specifications are subject to change without notice.
* All trademarks and brands are property of their rightful owners.
