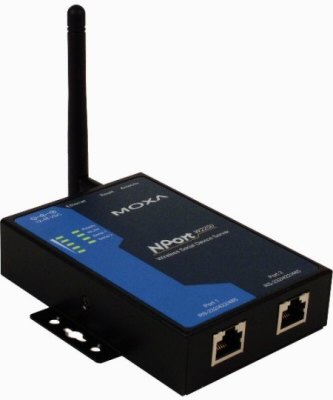

>visionsystems.de/Nport W2250 (4728)   Main Features Link any serial devices to an IEEE802.11b network 2 RS232/422/485 ports at up to 230.4 Kbps Web-based configuration via built-in Ethernet or WLAN Supports Windows/Linux COM driver Supports TCP Client mode, TCP Server mode and UDP mode Compact sized, robust metal case fits all applications       Inquiry PDF Nport W2250 Quick Link: | Main Features | More Pictures | Overview | Hardware | Interface | Performance | Configuration | Power and Environment | Operating Systems supported | Safety | Ordering Information | Optional Accessories | Download | |   More Pictures Click on the thumbnails to enlarge them … >Back to top         Overview The NPort W2250/2150 Wireless Serial Device Server extends wireless networking capabilities to printers, scales, medical equipment, manufacturing machinery, bar code readers, card readers, point-of-sale equipment and other data collection devices. NPort W2250/2150's RS-232/422/485 3-in-1 serial interface is suitable for use with most serial devices. Link up to 2/1 serial devices to your wireless network via one NPort Server IP address.   Hardware Connector type SMA-Reverse for WLAN antenna, RJ45 for Ethernet, RJ45 (8 pin) for serial Port >Back to top         Interface WLAN interface Wireless LAN IEEE 802.11b, max. 11 Mb/s Encryption WEP-128, WEP-64 Infrastructure mode (uses an Access Point) Ad-hoc mode (direct connection to a PC/Laptop) Ethernet interface 10/100BaseTx Protocols ICMP,IP,TCP,UDP,DHCP,BOOTP,Telnet,Rtelnet, DNS,SNMP,HTTP,SMTP,SNTP,ARP Serial interface RS232/422/485 No. of port 2 Signals RS232 TxD,RxD, RTS,CTS, DTR,DSR, DCD, RI, GND RS422 Tx+/-, Rx+/-, GND RS485 2 wire Data+/-, GND RS485 4 wire Tx+/-, Rx+/-, GND >Back to top         Performance Speed 110 bps - 230.4Kbps Max. no. of ports 256 per Windows NT/2000/XP, 128 per Windows 95/98/ME Flow Control RTS/CTS, Xon/Xoff >Back to top         Configuration Parity None, even, odd, space, mark Data bits 5, 6, 7, 8 Stop bits 1, 1.5, 2 IRQ None I/O address None Server Configuration Web Browser Serial console Telnet console >Back to top         Power and Environment Operation temp. 0°C - 55°C Surge Protection 15kV ESD Power requirements Power input 12 to 48V AC Power Consumption 250mA @ 12V 138mA @ 24V Special Built-in Buzzer Built-in Real time clock Built-in Watch dog >Back to top         Operating Systems supported Real Com Drivers WIN95/98/ME/NT/2K/XP/2003/Vista Real TTY Drivers for Linux Utilities Nport Administrator for Win95/98/ME/NT/2K/XP/2003/Vista Dimension 77 x 111 x 26mm >Back to top         Safety EMC FCC Class A, CE Class A UL, TÜV >Back to top         Ordering Information Part Number 4728 Product Name Nport W2250 Packing list NPort W2250 Serial Device Server Quick Installation Guide NPort Document and Software CD-ROM Power Adapter RJ45 to RJ45 Ethernet cross-over cable RJ45 to male DB9 cable >Back to top         Optional Accessories DK 35A DIN-Rail mounting kit >Back to top       Download   Windows 95 and above  (Version 1.13 Aug. 16th 2010) Linux Real TTY  (Version 1.17 Aug. 16th 2010) CE  (Version 1.2 Aug. 16th 2010) Unix Fixed TTY  (Version 3.4 Aug. 16th 2010) Management  (Version 3.5 Jul. 9th 2008) >Back to top
