Main Features

  • Can control 4 x RS232 devices located virtually anywhere (via Ethernet or Internet)
  • Provide unlimited number of RS232 ports (only limited by system restriction, 256 max. per Windows NT/2000 host, 128 max. per Windows 95/98/ME host)
  • Auto-detecting 10/100Mbps Ethernet interface
  • Built-in human interface with Liquid Crystal Module (LCM) and buttons for setting up the server and displaying server status
  • Industrial-strength, highly reliable at all ports with surge protection 15kV ESD
  • Capability for hot-swap, easy maintenance
  • Provide pair-connection mode and host-based mode
  • No host reboot required after adding new NPort Server Lite
  • Support Windows NT/2000, Windows 95/98/ME
  • Support DHCP
  • Self diagnostic and report

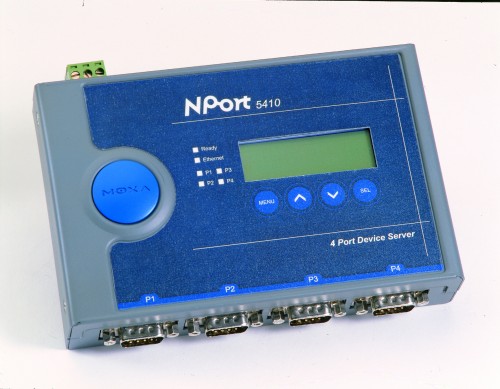

Nport 5410




Nport 5410

Quick Link: | Main Features | More Pictures | Overview | Hardware | Interface | Performance | Configuration | Power and Environment | Operating Systems supported | Safety | Ordering Information | Optional Accessories | Download |

|

  More Pictures

Nport 5410
Click on the thumbnails to enlarge them …

>Back to top

  Overview

NPort Server 5410 is an industrial-strength network-based serial device server for connecting up to four RS232 devices like CNCs, PLCs, weighing scales, scanners and other devices directly to the 10/100Mbps Ethernet network running TCP/IP.
Through the revolutionary built-in human interface with Liquid Crystal Module (LCM) for display data/status and buttons for inputting data or selecting mode, you can easily set up the server, such as IP address, net mask and gateway, and monitor the server status and data transmission. Eliminate the need to prepare additional PCs during installation.
In addition to allowing serial devices to get networked, any host (PC Server or Workstation) without network access can also access remote serial device via adding NPort Server Lite to the existing serial port. In other word, a pair of 1-port NPort Server can be configured over Ethernet and serve as a transparent serial channel without platform and distance limitation.

  Hardware

Processor

80186

I/O controller

16C550C or compatible

Memory

512K bytes

Connector type

DB9 male

>Back to top

  Interface

LAN interface

Auto-detecting 10BaseT/100BaseT

Protocols

TCP/IP, UDP, Telnet, Rtelnet, DHCP, ICMP, BootP, DNS, SMTP, NTP

Serial interface

RS232

No. of port

4

Signals

TxD, RxD, RTS, CTS, DTR, DSR, GND

>Back to top

  Performance

Speed

50 bps - 921.6Kbps

Max. no. of ports

256 per Windows NT/2000/XP, 128 per Windows 95/98/ME

Protocols

TCP/IP, ICMP, UDP, DHCP, BootP, Telnet, SNMP, HTTP, SMTP, NTP

Flow Control

RTS/CTS, Xon/Xoff

>Back to top

  Configuration

Parity

None, even, odd, space, mark

Data bits

5, 6, 7, 8

Stop bits

1, 1.5, 2

IRQ

Nil

I/O address

Nil

Server Configuration

via Web Browser
Serial console
Telnet console
LCM Display with 4 push buttons
Windows Utility

>Back to top

  Power and Environment

Operation temp.

0°C - 55°C

Surge Protection

15kV ESD

Operating humidity

5% - 95%

Power requirements

Power input 12 to 48V AC Terminal block

Power Consumption

350mA @ 12V

Special

Built-in Buzzer
Built-in Real time clock
Built-in Watch dog

>Back to top

  Operating Systems supported

Real Com Drivers

WIN95/98/ME/NT/2K/XP/2003/Vista

Real TTY Drivers

for Linux

Utilities

Nport Administrator for Win95/98/ME/NT/2K/XP/2003/Vista

Dimension

158 x 104 x 33mm (wxdxh)

>Back to top

  Safety

EMC

FCC Class A, CE Class A
UL, TÜV

>Back to top

  Ordering Information

Part Number

751

Product Name

NPort 5410

Packing list

NPort 5410 Serial Device Server
Quick Installation Guide
NPort Document and Software CD-ROM
Power Jack to Terminal Block Power Cable

>Back to top

  Optional Accessories

DK 35A

DIN-Rail mounting kit

>Back to top

Download


 (Version 1.13 Aug. 16th 2010)
 (Version 1.17 Aug. 16th 2010)
 (Version 1.2 Aug. 16th 2010)
 (Version 3.4 Aug. 16th 2010)
 (Version 3.5 Jul. 9th 2008)
>Back to top

* Specifications are subject to change without notice.
