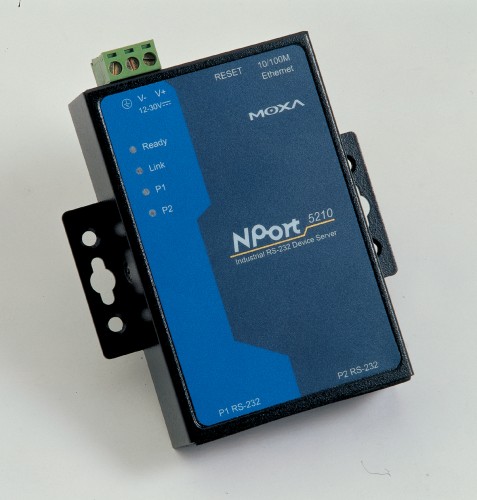

>visionsystems.de/Nport 5210 (709)   Main Features Can control 2 x RS232 device located virtually anywhere (via Ethernet or Internet) Real COM/TTY driver for Windows and Linux Versatile socket operation modes, including TCP Server, TCP Client, UDP Server/Client, and Ethernet Modem Pair Connection mode for connecting two serial devices over a network without a PC Easy-to-use Windows Utility for mass installation Built-in 15 KV ESD protection for all serial signals Configuration via Web/Telnet/Serial console SNMP MIB-II for network management       Inquiry PDF Nport 5210 Quick Link: | Main Features | More Pictures | Overview | Hardware | Interface | Performance | Configuration | Power and Environment | Operating Systems supported | Safety | Ordering Information | Optional Accessories | Download | |   More Pictures Click on the thumbnails to enlarge them … >Back to top         Overview NPort Server 5210 is an industrial-strength network-based serial device server for connecting up to two RS232 devices like CNCs, PLCs, weighing scales, scanners and other devices directly to the 10/100Mbps Ethernet network running TCP/IP. In addition to allowing serial devices to get networked, any host (PC Server or Workstation) without network access can also access remote serial device via adding NPort Server to the existing serial port. In other word, a pair of 1-port NPort Server can be configured over Ethernet and serve as a transparent serial channel without platform and distance limitation.   Hardware Processor 80186 I/O controller 16C550C or compatible Memory 512K bytes Connector type RJ45 (8-pin) >Back to top         Interface LAN interface Auto-detecting 10BaseT/100BaseT Protocols TCP/IP, UDP, Telnet, DHCP, ICMP, BootP, DNS, SMTP, NTP,SNMP Serial interface 2 x RS232 No. of port 2 Signals TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND >Back to top         Performance Speed 110 - 230.4Kbps Max. no. of ports 256 per Windows NT/2000/XP, 128 per Windows 95/98/ME Protocols TCP/IP, ICMP, UDP, DHCP, BootP, Telnet, SNMP, HTTP, SMTP, NTP Flow Control RTS/CTS, Xon/Xoff >Back to top         Configuration Parity None, even, odd, space, mark Data bits 5, 6, 7, 8 Stop bits 1, 1.5, 2 IRQ Nil I/O address Nil Server Configuration via Web Browser Serial console Telnet console Windows Utility >Back to top         Power and Environment Operation temp. 0°C - 55°C Surge Protection 15kV ESD Operating humidity 5% - 95% Power requirements Power input 12 to 48V AC Terminal block Power Consumption 305mA @ 12V Special Built-in Buzzer Built-in Real time clock Built-in Watch dog >Back to top         Operating Systems supported Real Com Drivers WIN95/98/ME/NT/2K/XP/2003/Vista Real TTY Drivers for Linux Utilities Nport Administrator for Win95/98/ME/NT/2K/XP/2003/Vista Dimension 67 x 100.4 x 22mm >Back to top         Safety EMC FCC Class A, CE Class A UL, TÜV >Back to top         Ordering Information Part Number 709 Product Name Nport 5210 Packing list NPort 5210 Serial Device Server Quick Installation Guide NPort Document and Software CD-ROM Power Jack to Terminal Block Power Cable >Back to top         Optional Accessories DK 35A DIN-Rail mounting kit CBL-RJ45M9-150 Connection Cable RJ45 (8 pin) to DB9 male CBL-RJ45M25-150 Connection Cable RJ45 (8 pin) to DB25 male CBL-RJ45F9-150 Connection Cable RJ45 (8 pin) to DB9 female CBL-RJ45F25-150 Connection Cable RJ45 (8 pin) to DB25 female >Back to top       Download   Windows 95 and above  (Version 1.13 Aug. 16th 2010) Linux Real TTY  (Version 1.17 Aug. 16th 2010) CE  (Version 1.2 Aug. 16th 2010) Unix Fixed TTY  (Version 3.4 Aug. 16th 2010) Management  (Version 3.5 Jul. 9th 2008) >Back to top
