Main Features

  • Can control 1 x RS232/422/485 device located virtually anywhere (via Ethernet or Internet)
  • Low cost; credit card size
  • Real COM/TTY driver for Windows and Linux
  • Versatile socket operation modes, including TCP Server, TCP Client, UDP Server/Client, and Ethernet Modem
  • Pair Connection mode for connecting two serial devices over a network without a PC
  • Easy-to-use Windows Utility for mass installation
  • Built-in 15 KV ESD protection for all serial signals
  • Configuration via Web/Telnet/Serial console
  • SNMP MIB-II for network management


Nport 5150




Nport 5150

Quick Link: | Main Features | More Pictures | Overview | Hardware | Interface | Performance | Configuration | Power and Environment | Operating Systems supported | Safety | Ordering Information | Optional Accessories | Download |

|

  More Pictures

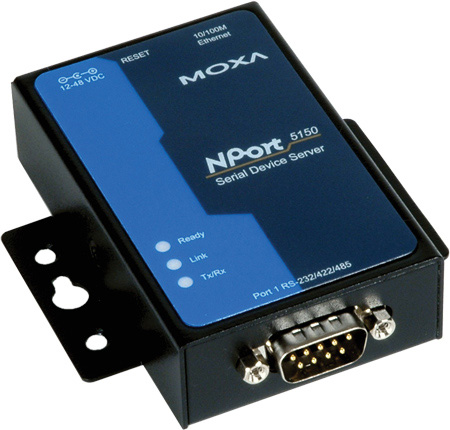

Nport 5150
Click on the thumbnails to enlarge them …

>Back to top

  Overview

NPort Server 5150 is an industrial-strength network-based serial device server for connecting 1 RS232/422/485 device like CNCs, PLCs, weighing scales, scanners and other devices directly to the 10/100Mbps Ethernet network running TCP/IP.
In addition to allowing serial devices to get networked, any host (PC Server or Workstation) without network access can also access remote serial device via adding NPort Server to the existing serial port. In other word, a pair of 1-port NPort Server can be configured over Ethernet and serve as a transparent serial channel without platform and distance limitation.

  Hardware

Processor

80186

I/O controller

16C550C or compatible

Memory

512K bytes

Connector type

DB9 male

>Back to top

  Interface

LAN interface

Auto-detecting 10BaseT/100BaseT

Protocols

TCP/IP, UDP, Telnet, DHCP, ICMP, BootP, DNS, SMTP, SNMP

Serial interface

1 x RS232/422/485

No. of port

1

Signals

RS232 TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS422 TxD+/-, RxD+/-, RTS+/-, CTS+/-, GND
RS485 Data+/-, GND

>Back to top

  Performance

Speed

50 bps - 921.6Kbps

Max. no. of ports

256 per Windows NT/2000/XP, 128 per Windows 95/98/ME

Protocols

TCP/IP, ICMP, UDP, DHCP, BootP, Telnet, SNMP, HTTP, SMTP, NTP

Flow Control

RTS/CTS, Xon/Xoff

>Back to top

  Configuration

Parity

None, even, odd, space, mark

Data bits

5, 6, 7, 8

Stop bits

1, 1.5, 2

IRQ

Nil

I/O address

Nil

Server Configuration

via Web Browser
Serial console
Telnet console
Windows Utility

>Back to top

  Power and Environment

Operation temp.

0°C - 55°C

Surge Protection

15kV ESD

Operating humidity

5% - 95%

Power requirements

Power input 12 to 48VDC

Power Consumption

200mA @ 12V
106mA @ 24V

Special

Built-in Buzzer
Built-in Real time clock
Built-in Watch dog

>Back to top

  Operating Systems supported

Real Com Drivers

WIN95/98/ME/NT/2K/XP/2003/Vista

Real TTY Drivers

for Linux

Utilities

Nport Administrator for Win95/98/ME/NT/2K/XP/2003/Vista

Dimension

52 x 80 x 22mm

>Back to top

  Safety

EMC

FCC Class A, CE Class A
UL, TÜV

>Back to top

  Ordering Information

Part Number

4702

Product Name

Nport 5150

Packing list

NPort 5150 Serial Device Server
Power Adapter
Quick Installation Guide
Nport Document and Software CD-ROM

>Back to top

  Optional Accessories

DK 35A

DIN-Rail mounting kit

>Back to top

Download


 (Version 1.13 Aug. 16th 2010)
 (Version 1.17 Aug. 16th 2010)
 (Version 1.2 Aug. 16th 2010)
 (Version 3.4 Aug. 16th 2010)
 (Version 3.5 Jul. 9th 2008)
>Back to top

* Specifications are subject to change without notice.
* All trademarks and brands are property of their rightful owners.
