>visionsystems.de/NetCom Plus 411 RJ45 (6673)


Main Features

  • Ethernet to serial 4 ports RS232 on RJ45
  • Virtual Com Port driver for Windows
  • Secure Server with latest SSL/AES-256 encryption
  • Operation in Driver Mode, TCP/IP and many other
  • Quick Configuration over Driver and Browser
  • ESD protection on serial port, Ethernet, DC power
  • DIN Rail and Wall mount options
  • Port expansion over USB


VScom NetCom+ (Plus) 411 RJ45, a quad port Serial Device Server for Ethernet/TCP to RS232 New




NetCom Plus 411 RJ45
(NetCom 411, NetCom 411 PRO)

Quick Link: | Main Features | More Pictures | Overview | Ethernet Interface | Serial Interface | Serial Port Expansion | Software | Installation & Configuration | Security | viaVPN Remote Access (option) | Power Requirements | Housing and Mounting | Environmental Data | Standards | MTBF (Mean Time Between Failures) | Warranty | Ordering Information | Options | Packaging | Download |

|

  More Pictures

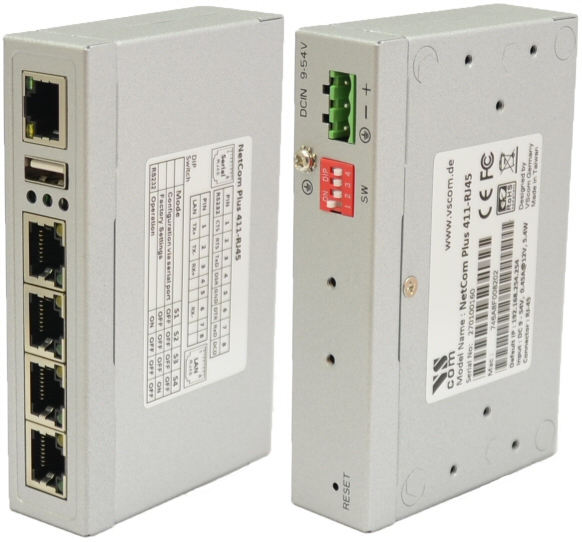

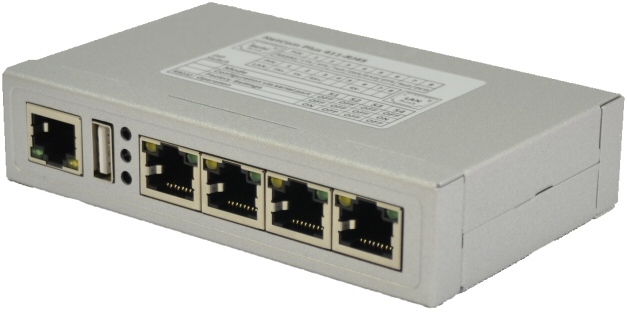

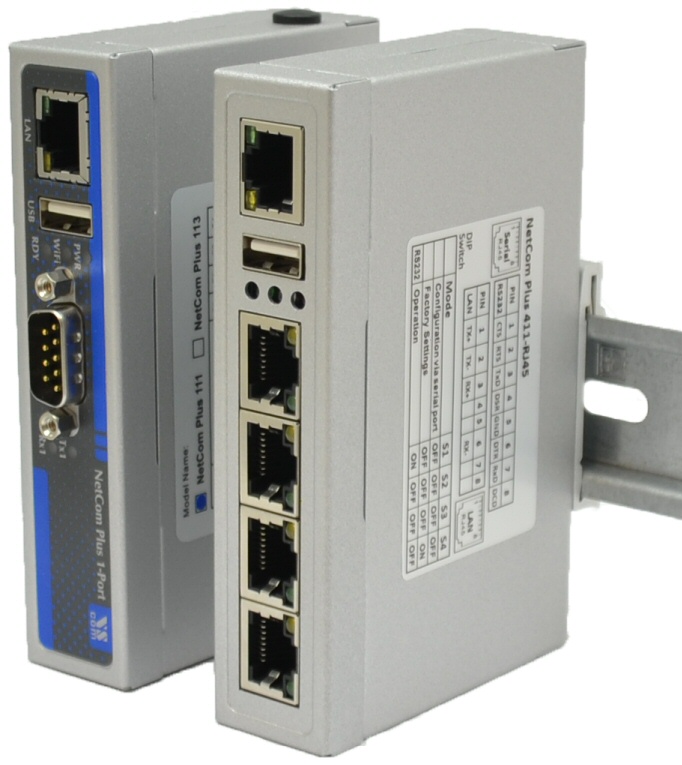

VScom NetCom+ (Plus) 411 RJ45, a quad port Serial Device Server for Ethernet/TCP to RS232
Click on the thumbnails to enlarge them …

>Back to top

  Overview

The Ethernet to Serial Gateways NetCom Plus connect RS232 or RS485 devices to a network running TCP/IP. These Serial Device Servers are rugged industrial devices with metal case and DIN-Rail or wall mounting, further supported by ESD protection on serial ports, power input and USB.
The NetCom+ 411 RJ45 provides four RS232 ports on RJ45 connectors. Use adapters RJ45-to-DB9M with customers Cat5 cables if necessary.

Windows Driver installs Com Ports

The driver for Windows operating system installs Virtual Com Ports. These operate in the same way as built-in ports, but via Ethernet or optional WLAN 802.11b/g/n. Easy-to-use Installation and Management software guides users trough the configuration.

High Speed Serial Ports, Low Power

The serial ports allow data rates of up to 460.8kbps in RS232 modes. The ports also allow every non-standard bitrate. See FAQ.
The USB 2.0 port supports USB-COM Plus modules, to add more standard or isolated serial ports. The USB port may also connect external WLAN.
The gateways demand 4W of power or less. The flexible input allows for various sources of customers choice.

Easy Configuration, versatile Operation Modes

NetCom+ are configured over Driver Panels and WEB Browser. This is also possible via serial Port, Telnet or SNMP. NetCom+ provide Driver Mode, TCP/IP or UDP connection, and many operation modes beyond those.

Secure Remote Access for Monitoring

For NetCom Plus series there is a software option using the viaVPN Cloud system (www.viaVPN.com) to be remotely accessed and monitored over Internet. viaVPN provides secure and strongly encrypted access, without any reconfiguration of existing firewalls. The access to the firmware via Ethernet or WLAN is extended by viaVPN over Internet, protected by a VPN tunnel. If the Com port is not occupied by local access, also remote operation over Internet is possible.

  Ethernet Interface

Speed/Type

100Mbps/10Mbps Auto-detecting

Connector

RJ45 (8P8C) 8 pin

LEDs

Power, WLAN, Ready, Ethernet Link / Speed

>Back to top

  Serial Interface

No. of Ports/Type

4 × RS232

Connector

RJ45 (8P8C) 8 pin, uses customers Cat5 cables
RJ45-TO-DB9M Adapters to change to DB9 wiring available

Protection

16kV ESD surge protection

Signals

TxD,RxD, RTS,CTS, DTR,DSR, DCD, GND

Data bits

7, 8

Stop bits

1, 2

Parity

None, Even, Odd, Mark, Space

Flow Control

RTS/CTS, XON/XOFF

Baudrate

200 bps to 460.8/500 kbps
Supports non-standard baudrates

LEDs

TxD/RxD for each port

>Back to top

  Serial Port Expansion

Connector

USB 2.0 High Speed type A, 500mA @5V at front side

Expansion Options

Connect USB-4COM Plus (4 ports) or USB-8COM Plus (8 ports) devices to add more serial ports to NetCom Plus server

>Back to top

  Software

Network Protocols

TCP, UDP, Telnet, PPP, DHCP, ICMP, UPnP, HTTP, LPD, SNMP V1/2c/3, DNS, openVPN

Virtual-COM Mode

Driver creates virtual COM ports via NetCom protocol © for
Windows XP/7/8/10, Win-Server 2003 to 2008 R2 (x86/x64)

Socket Modes

TCP RAW Server, TCP RAW Client, UDP Mode, Print Server
Automatic switching between Virtual-COM and TCP-RAW Server modes.

Tunnel Modes

Null Modem Tunnel and IP Modem

Fixed TTY Drivers

socat Tool, Linux OS

>Back to top

  Installation & Configuration

Installation

NetCom Plus Manager automatically finds NetCom Plus devices in the local network.

UPnP

With Network discovery enabled NetCom Plus servers announce their presence via UPnP making their IP visible.

Configuration

via WEB-Browser, Driver Panels, NetCom Manager, serial console, Telnet console or SNMP

Firewall

Virtual-COM mode works through firewalls

Firmware Update

via WEB Browser

>Back to top

  Security

Password Protection

for all available configuration options e.g. via WEB-Browser

Secure Server

create openVPN™ tunnels, for encrypted transmission of all serial and configuration data using high security SSL/TLS standards.

>Back to top

  viaVPN Remote Access (option)

Connect via Internet

viaVPN technology provides easy and secure access to remotely installed NetCom Plus servers for their configuration or for connecting their virtual COM ports through Internet. With the viaVPN option the NetCom Plus servers are no more limited to only work inside of a local network.

Security

All communications use openVPN-tunnels encrypted by SSL/TLS and AES-256 standards.

Firewall friendly

No Reconfiguration of firewalls is required for viaVPN remote access.

>Back to top

  Power Requirements

Input Voltage

9 - 54V DC

Power Consumption

300 mA @ 12V, 3.6W max

Connector

3-pin Terminal Block

>Back to top

  Housing and Mounting

Case

0.8mm sheet metal

Weight

w/o box 0.25kg; w/h box 0.35kg

Dimensions

115×73×25 mm³ (W×L×H)

Packaged

150×107×48 mm³

Mounting

  • DIN-Rail (optional)
  • Wall mount (optional)

>Back to top

  Environmental Data

Operating Temp

−20°C - 65°C

Storage Temp

−20°C – 85°C

Ambient Humidity

5-95% non condensing

>Back to top

  Standards

Declarations

CE, FCC

EMI

  • EN 55022 Class B
  • EN 61000-3-2: Limits of harmonic current emissions
  • EN 61000-3-3: Limitation of voltage changes
  • 47 CFR FCC Part 15 Subpart B

EMS (EN 55024)

  • EN 61000-4-3: Radiated RFI
  • EN 61000-4-4: Electrical Fast Transient
  • EN 61000-4-5: Surge
  • EN 61000-4-6: Induced RFI
  • EN 61000-4-8: Power Frequency Magnetic Field
  • EN 61000-4-11: Power supply dips

ESD

EN 61000-4-2 4kV contact 8kV air for

  • Serial Ports
  • USB
  • Ethernet
  • DC Power connector

>Back to top

  MTBF (Mean Time Between Failures)

MTBF

available soon

Standard

Telcordia (Bellcore) Standard; RelCalc. 5.0 BELL-7

>Back to top

  Warranty

Warranty Period

2 years

>Back to top

  Ordering Information

6673

NetCom Plus 411 RJ45 (4x RS232, expandable)

>Back to top

  Options

6031

Power adapter 110-230V AC to 12V @1A, DC, EU plug

6034

Power adapter 110-230V AC to 12V @1A, DC, US plug

6679

Activate option viaVPN for secure remote access over Internet

6692

DK-NCP DIN-Rail mounting kit (clamp on rear side)

6693

WK-NCP Wallmount kit

662

DK 35A Plastic DIN-Rail mounting kit

6062 x 4

Set 4 pcs Adapter RJ45-TO-DB9M
Cat5 to Dsub9-male, use own Cat5 cables for attaching

>Back to top

  Packaging

Packing list

  • NetCom Plus 411 RJ45 Serial Device Server
  • Terminal block for Power Supply
  • 4 rubber feet for table mode

>Back to top

Download


 (Driver Installer (version 2.0.3.0   November 2 2018))
 (Driver Installer (version 2.0.3.0   November 2 2018))
 (Driver Installer (WHQL version 1.5.9.3   December 10 2007))
 (Release April 2017)
