>visionsystems.de/FlexRunner 3435 (115)


Main Features

  • Intel Celeron J1900 2.0GHz Quad Core, 2GB DDR3L
  • VGA, max 1920 x 1200
  • 3 x Gigabit Ethernet
  • 3 x USB 2.0 / 1 x USB 3.0
  • 2 x RS232/485
  • 1 x MiniPCIe Socket (PCIe / USB / mSATA)
  • 1 x M.2 socket Type 2242
  • Power supply DC 12-24V, 15W
  • Dimensions 106.0mm x 85.0mm x 30mm


FlexRunner 3435, for Firewall




FlexRunner 3435

Quick Link: | Main Features | More Pictures | Overview | System | Storage | Expansion Options | Supported OS | Power Requirements | Housing and Mounting | Environment | Standards | Warranty | Ordering Information | Options | Packaging |

|

  More Pictures

FlexRunner 3435, for Firewall
Click on the thumbnails to enlarge them …

>Back to top

  Overview

Very compact, powerful and robust fan less embedded system FlexRunner 3435 provides low power consumption, which is optimized for cost and size sensitive compute applications. Modern interfaces as well as its very small mechanical design well suit it for compact applications, such as Factory Automation Applications, Facility Monitoring and Communication Applications (e.g. Firewall system).

Computing Performance

The Intel® Celeron™ (4 cores at 2.0GHz) combined with 2GB high speed DDR3L memory brings high performance with low power consumption, ideal for compact demanding industrial applications.

Graphic Performance

The on-processor graphic unit supports 1x VGA port and delivers power efficiency and high definition graphics. On chip GPU also delivers graphics performance significantly faster than the previous generation making it the ideal centerpiece to power hungry graphical and image processing applications.

Network Connectivity and Expansion

The connectivity includes 3x Intel® GbE LAN ports, 2x COM ports, 3x USB 2.0. One integrated Mini-PCIe slot can accommodate WLAN, 3G/4G-Modem or mSATA card and 1x M.2 slot can be used for mass storage.
12-24V DC input power supply, wide temperature operating range and ruggedized compact aluminium housing recommend it for deploying in harsh industrial environments.

  System

CPU

Intel Celeron Bay Trail J1900 Processor
2.0GHz Quad Core

Memory

2GB DDR3L on-board

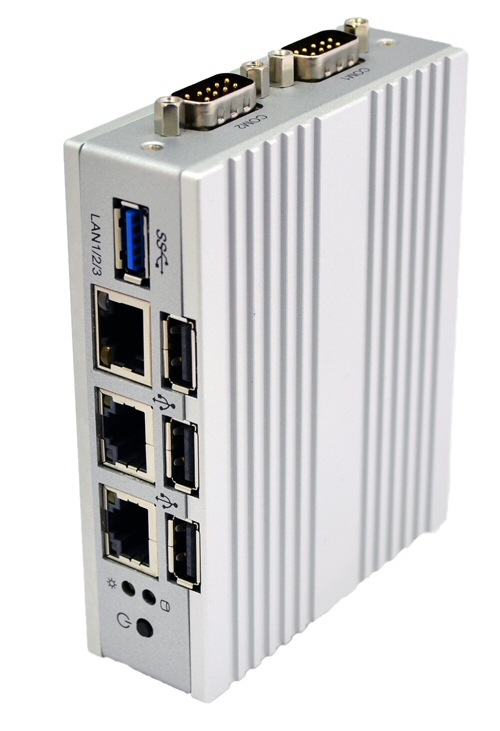

I/O Interface Front


3x GbE LAN ports
1x USB 3.0 port
3x USB 2.0 ports
power on/off button

I/O Interface Top


2x DB9 serial port RS232/485

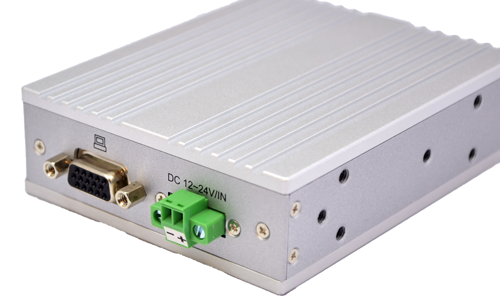

I/O Interface Bottom


1x DB15 VGA port
12-24V DC power input

>Back to top

  Storage

SSD

1x mSATA

SSD

1x M.2 Slot Type 2242

>Back to top

  Expansion Options

Expansion slot

miniPCIe (PCIe / USB / mSATA)

>Back to top

  Supported OS

Microsoft

Windows 7 – 10

Linux

Kernel 2.6 / 3.x

>Back to top

  Power Requirements

Input Voltage

12-24V DC, 15W max.

Power Supply

AC to DC power adapter, 19V (60W)

Connector

2-pin Terminal Block

>Back to top

  Housing and Mounting

Case

Aluminium chassis with fanless design

Dimensions

106 x 85 x 35mm

Mounting

DIN-Rail

>Back to top

  Environment

Operating Temp.

−20°C - 70°C

Storage Temp.

−20°C – 80°C

>Back to top

  Standards

Certifications

CE, FCC Class A

>Back to top

  Warranty

Warranty Period

2 years

>Back to top

  Ordering Information

115

FlexRunner 3435

>Back to top

  Options

Mass Storage device

mSATA
M.2 Type 2242

3332

DR7524 DIN Rail Power Supply (24V)

>Back to top

  Packaging

Packing list

  • FlexRunner 3435 Embedded System
  • DIN Rail Kit
  • Driver CD
  • English documentation

>Back to top

* Specifications are subject to change without notice.
* All trademarks and brands are property of their rightful owners.
