Main Features

  • Intel Celeron J1900, 2.0GHz Quad Core, 2GB DDR3
  • VGA /HDMI
  • 4 x GLAN / 3 x USB 2.0 / 2 x RS232/485
  • 2 x MiniPCIe Socket + 1 x SIM
  • HDD Space S-ATA
  • Power supply DC 12V
  • Dimensions 210.0mm x 125.0mm x 55mm

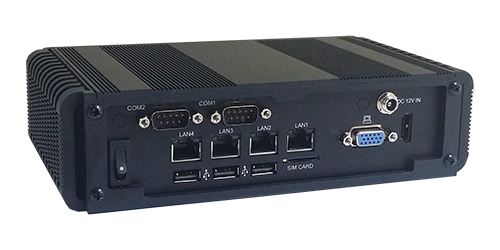

FlexRunner 2516, a Firewall system




FlexRunner 2516

Quick Link: | Main Features | More Pictures | Overview | System | Storage | Expansion Options | Supported OS | Power Requirements | Housing and Mounting | Environment | Standards | Warranty | Ordering Information | Options | Packaging |

|

  More Pictures

FlexRunner 2516, a Firewall system
Click on the thumbnails to enlarge them …

>Back to top

  Overview

With latest generation of Intel® Celeron™ processor J1900 the FlexRunner 2516 industrial fanless computer features Intel® HD Graphics. Large DDR3L memory, plenty of high-speed interfaces as well as its small mechanical design well suited for compact performance applications, such as Factory Automation Applications, Network Applications and Communication Applications.

Computing Performance

The Intel® Atom™ (4 cores at 2.0GHz) combined with up to 4GB high speed DDR3L memory assemble an affordable system for compact demanding industrial applications.

Graphic Performance

The on-processor graphic unit supports 1x HDMI port and 1x VGA port enabling 2 independent displays simultaneously. On chip GPU also delivers graphics performance significantly faster than the previous generation making it the ideal centerpiece to demanding graphical and image processing applications.

Rich Connectivity and Expansion

The connectivity includes 4x Intel® GbE LAN ports, 2x COM ports, 3x USB 2.0. Two integrated Mini-PCIe slots can accommodate WLAN, 3G/4G-Modem or mSATA cards. Wide temperature operating range and ruggedized compact aluminium housing recommend it for deploying in harsh industrial environments.

  System

CPU

Intel Celeron Bay Trail J1900 Processor
2.0GHz Quad Core

Memory

2GB DDR3 (4GB max.)
1x SoDIMM

I/O Interfaces


4x GbE LAN ports (Intel I210AT Chipset)
3x USB 2.0 ports
1x DB15 VGA port
1x HDMI port
2x DB9 serial port RS232/485
1x SIM-card slot
12V DC power input
power on/off button

>Back to top

  Storage

HDD/SSD

1x 2.5" SATA HDD drive bay
1x mSATA

>Back to top

  Expansion Options

Expansion slot

2x miniPCIe (1x mSATA)

>Back to top

  Supported OS

Microsoft

Windows 7 – 10

Linux

Kernel 2.6 / 3.x

>Back to top

  Power Requirements

Input Voltage

12V DC on-board power support

Power Supply

AC to DC power adapter, 19V (60W)

Connector

2-pin Terminal Block

>Back to top

  Housing and Mounting

Case

Aluminium chassis with fanless design

Dimensions

210x 125x 55mm

Mounting

Wall Mount

>Back to top

  Environment

Operating Temp.

0°C - 45°C for HDD
−20°C - 70°C for mSATA

Storage Temp.

−20°C – 80°C

>Back to top

  Standards

Certifications

CE, FCC Class A

>Back to top

  Warranty

Warranty Period

2 years

>Back to top

  Ordering Information

127

FlexRunner 2516

>Back to top

  Options

50

Wall Mount Kit

Mass Storage device


2.5 HDD SATA
2.5 SSD SATA
CFast Card

>Back to top

  Packaging

Packing list

  • FlexRunner 2516 Embedded System
  • (incl. CPU 2.0GHz, 2GB DDR3 RAM)
  • Power supply
  • Driver CD, English documentation

>Back to top

* Specifications are subject to change without notice.
* All trademarks and brands are property of their rightful owners.
