>visionsystems.de/EmRunner H plus e1 (287)


Main Features

  • Intel Celeron 650MHz ULV fanless
  • 2 x LAN / 2 x USB 1.1
  • 2 x RS232, 1 x LPT
  • Compact Flash Slot
  • Space for 2,5" HDD
  • WLAN miniPCI Module IEEE 802.11b/g
  • Power Input 12-24V DC, max 20W
  • IP50 Aluminium Case
  • e1 certified for in-vehicle-use
  • Dimensions 148 x 203 x 55 mm3
  • based on VS-2630 Board

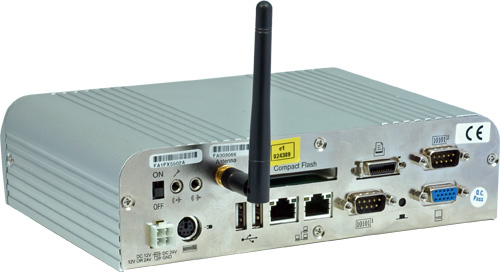

EmRunner H plus e1




EmRunner H plus e1

Quick Link: | Main Features | More Pictures | Overview | Chassis | Hardware | Memory | Video | Integrated Devices | Connectivity | Power supply | Power consumption | Environment | supported OS | Approvals | Ordering Information | optional | Download |

|

  More Pictures

EmRunner H plus e1
Click on the thumbnails to enlarge them …

>Back to top

  Overview

Targeting automotive applications the EmRunner H plus e1 has been approved by Kraftfahrt-Bundesamt with e1 certification. This CarPC has been designed for telematic and map-navigation applications, offering high shock resistance and low power consumption of max 20W from 12-24V sources.
Combinded with GPS position engine and GPRS module it can be used for tracking and controlling truck operation and routing. Actual position and operating conditions are known for every vehicle at every time. Firmware updates and upload of operating data can be done using Wireless LAN when the vehicle returns to base location.

  Chassis

Construction

full size Aluminium

Cooling system

Passive Heatsink, fanless

LED indicator

Power on/off in front, HDD, LAN

Expansion slot

1 x MiniPCI with optional WLAN Modul IEEE 802.11g

Dimensions

148 x 203 x 55mm

Power switch

connector side

>Back to top

  Hardware

Processor

Intel Celeron 650MHz ULV

Front side BUS

100, 133MHz

BIOS

AMI Flash BIOS

Chipset

VIA VT 8606, VT 82C686B

>Back to top

  Memory

Memory type

256MB SoDIMM. Optional up to 512MB

Memory socket

one 144-pin SoDIMM socket

>Back to top

  Video

VGA controller

embedded in VT8606 chipset with 2MB up to 32MB shared memory

BUS

PCI internal in chipset

Video RAM

with 2MB up to 32MB shared memory

Interface

VGA

Resolutions

up to 1600 x 1200/16bit

>Back to top

  Integrated Devices

HDD Bay

1 x 2.5" PATA HDD

Compact Flash

CF Adapter complete built in
Optional 512up to 8GB Compact Flash Card

Watchdog Timer

Programmable Watchdog Timer, 1-63 sec.

Real Time Clock

standard

Keyboard/Mouse

PS/2 connector, Y-Adapter cable for Keyboard and Mouse

>Back to top

  Connectivity

LAN

2 x 10/100Mbps BaseTX with RJ45 connector, RealTek Chipset
supports PXE Boot from LAN

WLAN

optional IEEE 802.11b/g WLAN Module with Antenna
Encryption: WEP 64/128, WPA, WPA2

USB

2 x USB 1.1
supports boot function from USB

IEEE 1394

no

VGA

1 x 15-pin connector

Com Ports total

2 x DSUB 9 male

Com Port Modi

2 x RS232

LPT

1 x LPT connector

Audio

Line-in ( Mic-in) Line-out ear-jet connectors

TV-out

no

S-Video

no

>Back to top

  Power supply

external Power Adapter

not in car version

Power input

12-24V DC

>Back to top

  Power consumption

average system alone

18,8W

>Back to top

  Environment

Operating Temp.

0°-50°C

Storage Temp.

&45;20°-&43;80°C

>Back to top

  supported OS

Windows

Win98, NT, 2K, XP, Embedded XP, CE 5.0

Linux

Kernel 2.4 / 2.6

>Back to top

  Approvals

EMC

FCC Class A, CE Class A

Environment

RoHS

Other

e1 certification for in-vehicle operation

>Back to top

  Ordering Information

Part Number

287

Product Name

EmRunner H plus e1

Packing list

EmRunner H plus e1 Embedded System
CD, English documentation
special 4-pin ATX Power connector DC 12V-24V and cable
Mounting Rails

>Back to top

  optional

WLAN

IEEE 802.11b WLAN Module with Antenna

Memory

SDRAM up to 512MB

Mass Storage device

2.5 HDD PATA
Compact Flash Card

>Back to top

Download


 (Lan driver for Realtek 8139C)
 (VGA-driver Windows 2000/XP)
 (VGA-driver Windows NT 4.0)
 (VGA-driver Windows 98/ME)
 (Manual (pdf version))
 (Audio-driver Windows 9x/NT4)
 (VIA 8606 Chipset-driver for Windows)
 (WatchDog Demo Program)
 (Driver for Mini-PCI WLAN-module (Ralink))
