>visionsystems.de/EmRunner 5508 (212)


Main Features

  • Intel Atom E3845 1.91GHz without fan, inkl. 4GB DDR3
  • 1 x VGA / 1 x HDMI
  • 2 x GigaLAN / 4 x USB 2.0 / 1 x USB 3.0
  • 2x RS232, 2xRS232/422/485
  • CFAST and SD Card Adapter
  • 2 x Mini PCIe socket
  • 12-24V DC
  • HDD/SSD Space 2.5
  • Dimensions 148 x 203 x 55mm


EmRunner 5508




EmRunner 5508

Quick Link: | Main Features | More Pictures | Overview | System | Storage | Expansion Options | Supported OS | Power Requirements | Housing and Mounting | Environment | Standards | Warranty | Ordering Information | Options | Packaging | Download |

|

  More Pictures

EmRunner 5508
Click on the thumbnails to enlarge them …

>Back to top

  Overview

With latest generation of Intel® Atom™ processor E3845 the EmRunner 5508 industrial fanless computer features 64-Bit Instruction Set and Intel® HD Graphics. Large DDR3L memory, plenty of high-speed interfaces as well as its small mechanical design well suit it for compact performance applications, such as Factory Automation Applications, Network Applications and Communication Applications.

Computing Performance

The Intel® Atom™ CPUs (4 cores at 1.91GHz) combined with up to 8GB high speed DDR3L memory assemble an affordable system for compact demanding industrial applications.

Graphic Performance

The on-processor graphic unit provides 1x HDMI port and 1x VGA port enabling 2 independent displays simultaneously. On chip GPU also delivers graphics performance significantly faster than the previous generation making it the ideal centerpiece to power hungry graphical and image processing applications.

Rich Connectivity and Expansion

The connectivity includes 2x Realtek GbE LAN ports, 4x COM ports, 1x CFast / 1x SD card socket, and fast serial interfaces like 1x USB 3.0 and 4x USB 2.0; the GbE LAN ports support WoL function. Two integrated Mini-PCIe slots can accommodate WLAN or 3G/4G-Modem cards.
12-24V DC input power supply, wide temperature operating range and ruggerized compact aluminium housing recommend it for deploying in harsh industrial environments.

  System

CPU

Intel Atom Bay Trail E3845 Processor
(2MB cache, 1.91GHz)

Chipset

integrated in Intel E3845

Memory

4GB DDR3 (8GB max.)
2x 204-pin SoDIMM

I/O Interface Front


HDD access/power/LAN status LEDs

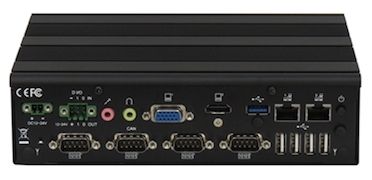

I/O Interface Rear


2x GbE LAN ports (Realtek RTL8111F Chipset)
4x USB 2.0 and 1x USB 3.0 ports
1x DB15 VGA and 1 x HDMI port
2x DB9 serial port RS232 (or 1x RS232 and 1x CAN Bus)
2x DB9 serial port RS232/422/485
1x GPIO 2in/2out with terminal block
1x earphone-out
1x mic-in
ATX power on/off and reset button
12-24V DC power input

>Back to top

  Storage

HDD/SSD

1x 2.5" SATA HDD drive bay

Flash

1x CFAST and 1x SD card socket

>Back to top

  Expansion Options

Expansion slot

2x miniPCIe for wireless/GPRS module

>Back to top

  Supported OS

Microsoft

Windows 7 – 10

Linux

Kernel 2.6 / 3.x

>Back to top

  Power Requirements

Input Voltage

12V - 24V DC on-board power support

Power Supply

AC to DC power adapter, 19V (60W)

Power Consumption

Full loading mode ca. ca. 21W
Standby mode ca. 7.5W

Connector

2-pin Terminal Block

>Back to top

  Housing and Mounting

Case

Aluminium chassis with fanless design

Weight

Gross Weight: 2.1kg

Dimensions

203x 148x 55mm

Mounting


Wall Mount
19-inch Rack Mount
VESA Mount
Panel Back Mount

>Back to top

  Environment

Operating Temp.

0°C – 70°C

Storage Temp.

−20°C – 80°C

>Back to top

  Standards

Certifications

CE, FCC, RoHS

>Back to top

  Warranty

Warranty Period

2 years

>Back to top

  Ordering Information

212

EmRunner 5508

>Back to top

  Options

5501K1

Wall Mount

5501K2

Panel Back Mount

5407K3

LCD VESA Mount Kit

5504K1

VESA Mount

5507K2

2U Rack Mount

Mass Storage device


2.5 HDD SATA
2.5 SSD SATA
CFast Card

>Back to top

  Packaging

Packing list

EmRunner 5508 Embedded System
(incl. CPU 1.8GHz, 2GB DDR3 RAM)
Power Adapter
Driver CD, English documentation
1 x 2-pin apertable terminal block

>Back to top

Download


 (Display Driver)
 (Audio Driver)
 (Chipset Driver)
 (LAN Port Driver)
 (USB Driver)
 (intel TXEI Software)
>Back to top
