>visionsystems.de/EmRunner 5326 DIN RAIL (266)


Main Features

  • Intel Atom N2600 1.6GHz Dual-Core fanless, 2GB DDR3
  • 2 x GigaLAN / 4 x USB 2.0 / VGA
  • 1x RS232/422/485, 1x RS232/422/485/CAN
  • 1x Digital I/O terminal block, 1x Line-out
  • MiniPCIe Socket + SIM
  • CFast Adapter
  • HDD Space S-ATA
  • 9-32V DC terminal block
  • Dimensions: 145.0mm x 102.0mm x 50mm

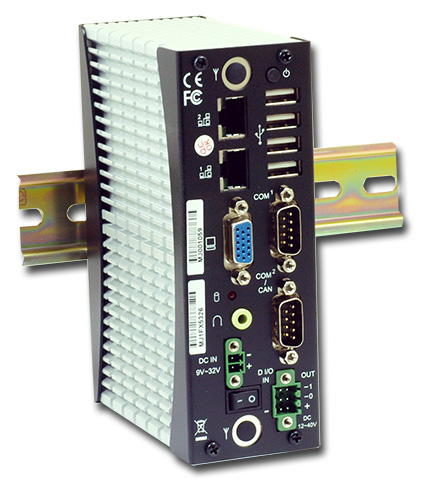

EmRunner 5326 DIN RAIL




EmRunner 5326 DIN RAIL

Quick Link: | Main Features | More Pictures | Overview | System | Storage | Chassis | Supported OS | Power Requirements | Housing and Mounting | Environment | Standards | Warranty | Ordering Information | Options | Packaging |

|

  More Pictures

EmRunner 5326 DIN RAIL
Click on the thumbnails to enlarge them …

>Back to top

  Overview

Small and robust fan less embedded system EmRunner 5326 provides low power consumption, which is optimized for cost and size sensitive compute applications. Plenty of modern interfaces as well as its small mechanical design well suit it for compact performance applications, such as Factory Automation Applications, Network Applications and Communication Applications.

Computing Performance

The Intel® Atom™ N2600 (2 cores at 1.6GHz) augmented by Intel® Hyper-Threading for 4 independent threads and combined with 2GB high speed DDR3 memory bring scalable performance with low power consumption which make it ideal for compact demanding industrial applications.

Graphic Performance

The on-processor graphic unit supports 1x VGA port and delivers power efficiency and high definition graphics. On chip GPU also delivers graphics performance significantly faster than the previous generation making it the ideal centerpiece to power hungry graphical and image processing applications.

Rich Connectivity and Expansion

The connectivity includes 2x Realtek GbE LAN ports, 2x COM ports, CFast and SD card socket, D-IO and 4x USB 2.0; the GbE LAN ports support WoL function. One integrated Mini-PCIe slot can accommodate WLAN or 3G/4G-Modem card.
12-24V DC input power supply, wide temperature operating range and ruggedized compact aluminium housing recommend it for deploying in harsh industrial environments.

  System

CPU

Intel Atom N2600 Dual Core Processor
(1MB cache, 1.6GHz)

Chipset

Intel N2600 + NM10

Memory

2GB DDR3 (2GB max.)
1 x 204-pin SoDIMM

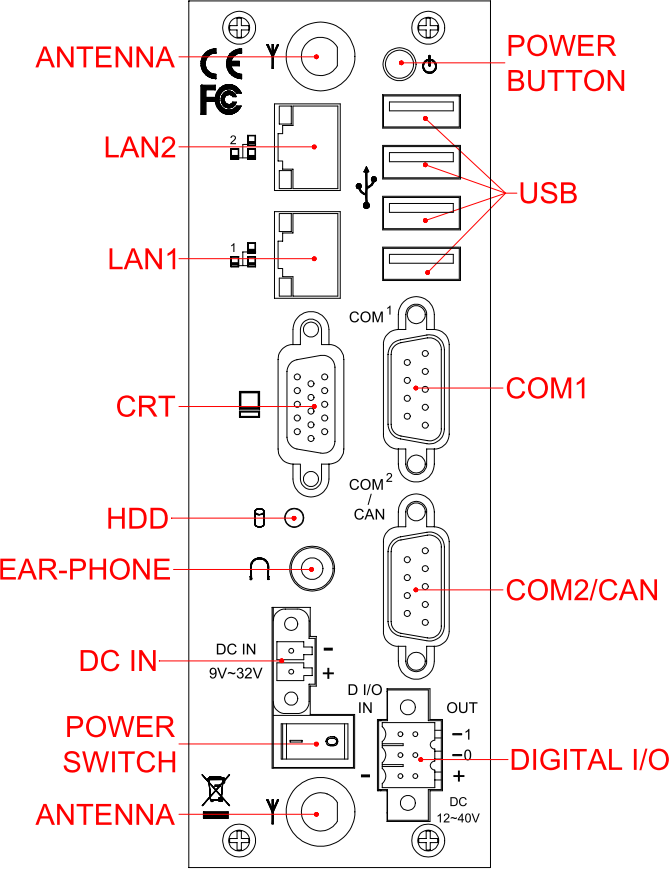

I/O Interfaces


2 x GbE LAN ports (Realtek RTL8111F Chipset)
4 x USB 2.0 ports
1 x VGA port
1 x DB9 serial port RS232/422/485
1 x DB9 serial port RS232/422/485/CAN
1 x earphone-out
1 x Digital I/O (6-pin terminal block)
9-32V DC power input

>Back to top

  Storage

HDD/SSD

1 x 2.5" SATA HDD drive bay

Flash


1 x internal CFast socket
1 x internal SD socket

>Back to top

  Chassis

Construction

Aluminium chassis with fanless design

Expansion slot

1x miniPCIe + SIM

>Back to top

  Supported OS

Microsoft

Windows XP, 7 10

Linux

Kernel 2.6 / 3.x

>Back to top

  Power Requirements

DC

9V - 32V DC on-board power support

Power Consumption

Average system load: ca. 19W

Connector

2-pin Terminal Block

>Back to top

  Housing and Mounting

Case

Aluminium chassis with fanless design

Dimensions

145 x 102 x 50 mm

Mounting

DIN Rail
VESA Mount (75 x75 mm Only)

>Back to top

  Environment

Operating Temp.

0°C - 50°C

Storage Temp.

−20°C – 80°C

>Back to top

  Standards

Certifications

CE, FCC, RoHS

>Back to top

  Warranty

Warranty Period

2 years

>Back to top

  Ordering Information

266

EmRunner 5326

>Back to top

  Options

Mass Storage device

2.5 HDD SATA
2.5 SSD SATA
CFast Card

3332

DR7524 DIN Rail Power Supply (24V)

FX5311K1

VESA Mount (75 x75 mm Only)

>Back to top

  Packaging

Packing list

EmRunner 5326 Embedded System
(incl. CPU 1.6GHz, 2GB DDR3 RAM)
Driver CD, English documentation
1 x 2-pin apertable terminal block

>Back to top
