VS Vision Systems GmbH / Part Number 604   Main Features Metal case Jumperless, no DIP switches USB 2.0 interface DIN-Rail mountable RS232/422/485 DB9 male port Terminal block Speed up to 500/3000 kbps no external power supply       Contact Online… VScom USB-2COM-PRO (Replaced by USB-2COM Plus)

Quick Link: | Main Features | More Pictures | Overview | Hardware Specifications | Ordering Information | |

More Pictures    Click on the thumbnails for the large picture … >Back to top         Overview The USB-2COM-PRO is completely jumperless and free of DIP switches, all configuration is done by software. Just press the button and use the configuration program. Serial ports on USB allow further use of existing devices, even when the computer doesn't offer serial ports. Now the USB-2COM-PRO is extremely flexible in offered communication standards. Besides the classical RS232 and RS422 it offers six variants of the RS485 operation. The often required Termination and Polarization (BIAS) is also provided by built-in hardware, and it is controlled by the same configuration software. The USB 2.0 interface enables the high speed serial ports (max. 3Mbps, 128 byte FIFO) for high speed communication, even in heavy loaded systems. Unique features reduce the system load. The serial ports also allow unusual speed settings like 500kbps.   Hardware Specifications Serial interface 2 x RS232/422/485 configured by software RS485 Termination and Polarization configured by software Connectors DB9 male Speed RS232: up to 500kbps RS422: up to 3Mbps RS485: up to 3Mbps Available Modes RS232 full duplex RS422 full duplex RS485 4-wire, full duplex RS485 2-wire, half duplex, with echo RS485 2-wire, half duplex, without echo Signals RS232: TxD, RxD, RTS/CTS, DTR, DSR, DCD, RI, GND RS422: Tx+/-, Rx+/-, RTS+/-, CTS+/-, GND RS485 4-wire: Tx+/-, Rx+/-, GND RS485 2-wire: Data+/-, GND USB Interface USB 2.0 Bus powered No external power supply Driver Windows 2000 to Windows 10 (x86 and x64) Windows Server 2000 to 2012 (x86 and x64) Linux (Kernel 2.6 built-in, 2.4 available) >Back to top         Ordering Information Part Number 604 Product Name VScom USB-2COM-PRO Packing list VScom USB-2COM-PRO Adapter USB cable 0,9m CD, English Documentation Optional Accessories DK 35A DIN-Rail mounting kit 9PF-9PF RS232 Null-Modem adapter, change male to female Dimensions 115×85×26 mm³ (W×L×H) 137×90×23 mm³ with DB9 connector and ears >Back to top       * Specifications are subject to change without notice. * All trademarks and brands are property of their rightful owners.



---

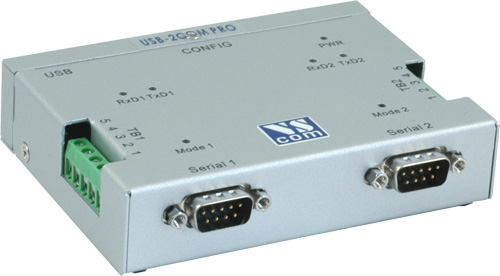

VScom USB-2COM-PRO

>Back

---

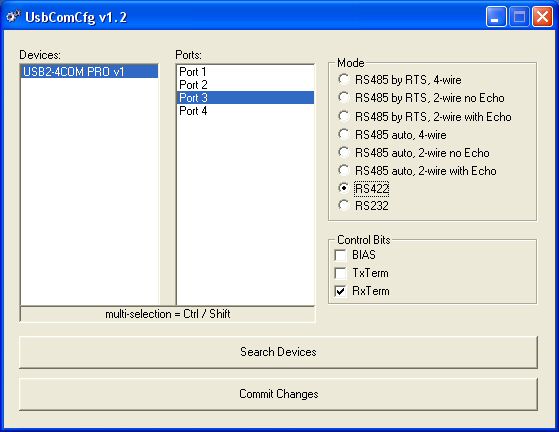

Configuration Program
