Main Features

  • ARM AM3352 Cortex-A8 @ 600MHz
  • 256MB DDR3 / 256MB NAND
  • 1 x microSD-Slot
  • 2 x LAN (1 Gigabit, 1 Fast Ethernet)
  • 1 x WLAN 802.11b/g/n (optional)
  • 1 x USB 2.0 Host
  • 1 x RS232/422/485
  • Low Power, fanless, safe connectors
  • ESD surge protection
  • Operating Temperature −20°C - 65°C
  • BSPs: Debian, OpenWrt, Buildroot, Yocto


Baltos iR 2110 onRISC ARM Industrial PC with Ti Sitara Cortex-A8 Am3352 processor system on Chip SOC New

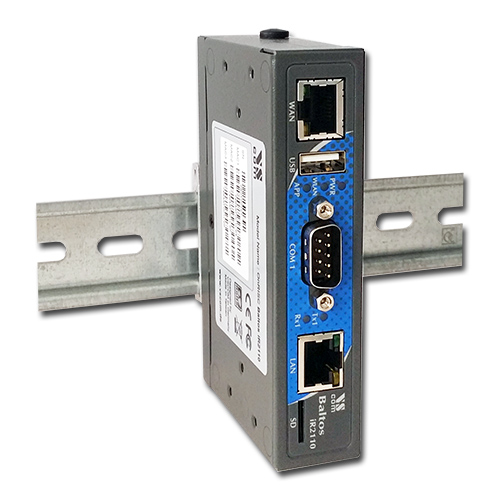

Baltos iR 2110
