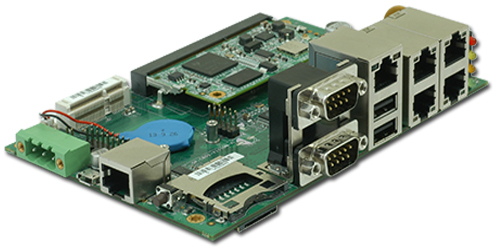

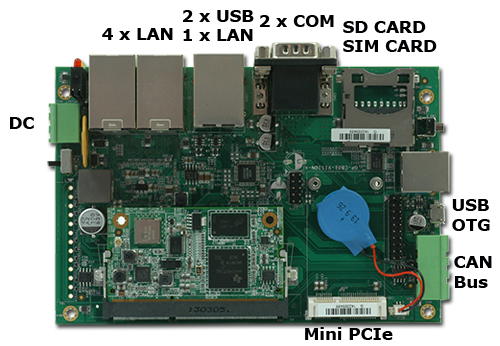

>visionsystems.de/EVB-AM335x (6836)   Main Features Developer board for SOM-AM335x 1 x SD-Slot 5 x LAN 3 x USB 2.0 (2 Host, 1 OTG) 2 x RS232/422/485 1 x CAN Bus 8 x Digital-I/O (4 Input, 4 Output) 1 x I²C 1 x mPCIe-slot for 3G/4G-Modem, GPS and other 1 x SIM card slot 1 x Console serial Port Debian GNU/Linux       Inquiry PDF   BUY EVB-AM335x Quick Link: | Main Features | More Pictures | Overview | Interfaces | Expansion | Ordering Information | Packaging | |   More Pictures    Click on the thumbnails to enlarge them … >Back to top         Overview The Developer Board EVB-AM335x is an example for use of SOM-AM335x System-On-Module. This Developer Board realizes the interfaces as named in the standard configuration of SOM-AM335x. It has the connectors and necessary interface circuits to make the interfaces usable. Plug in the module to get a system. The module is not included.   Interfaces Fast Ethernet integrated switch with four external ports for 10/100 Mbit/s Gigabit Ethernet AR8035 USB Host 2 x High Speed by USB 2.0 Hub USB OTG 1 port Serial UART 2 x DB9 for RS232/422/485 SD-Card 1 slot for boot Console 1 x RS232 on RJ45 connector CAN Bus CAN 2.0A/2.0B High Speed 1 Mbit/s Digital-I/O 4 x Input 4 x Output >Back to top         Expansion Slot miniPCIe 1 slot for Mini PCI Express cards SIM Slot Controlled by mPCIe slot, for GSM/3G/4G modems Power Supply 12V – 30V DC >Back to top         Ordering Information 6836 OnRISC EVB-AM335x 6837 Development Kit Developer Board EVB-AM335x 6834 SOM-AM335x module Power adapter 12V @ 1.5A 4GB SD card with Linux Adapter cable for console port Documentation and Development Software on DVD >Back to top         Packaging Packing list OnRISC EVB-AM335x Carry Board >Back to top
