Features

  • Extension for development system on VS-OpenNetCom
  • Serial interface ttyS0 (console port)
  • Programmable Diagnostic LEDs
  • JTAG connector
  • This product is required for special development purposes





OpenNetCom Service Board

Quick Link: | Features | More Pictures | Overview | Ordering information |

|

  More Pictures

Klick on the thumbnails to enlarge them …

>Back to top

  Overview

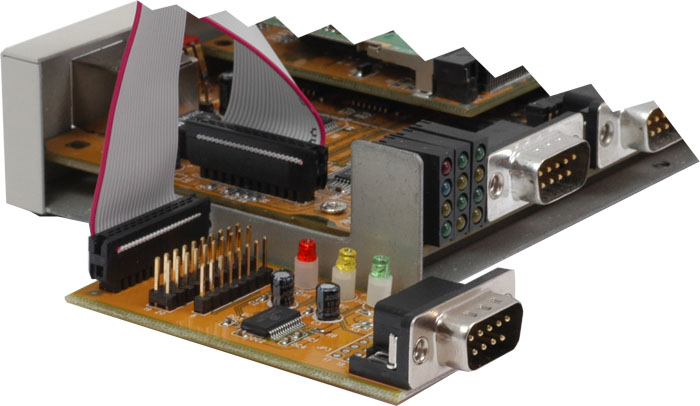

This service board is required for special development purposes. The board provides a 20 pin JTAG connector, easy access to the console port ttyS0, as well as programmable diagnostic LEDs.
JTAG offers direct access to the ARM9 processor in OpenNetCom.

Service Connector

24-pin header (male), connect to Base board via flat ribbon cable

Debug Connector

DSUB 9 male, RS232 level. Connects to console port ttyS0. Signals TxD, RxD, RTS, CTS

JTAG Connector

20-pin header with JTAG signals for BDI2000

Diagnostic LEDs

Red, Yellow and Green

Dimensions

35 x 77 mm

>Back to top

  Ordering information

Art.No

697

Product Name

VS-OpenNetCom Service Board

Packing list

VS-OpenNetCom Service Board
Flat ribbon cable
