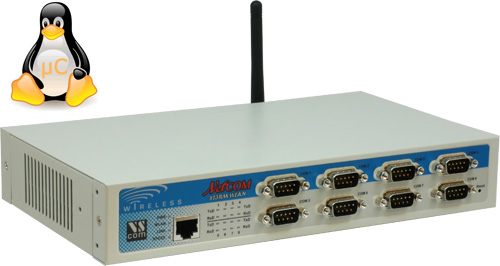

>visionsystems.de/OpenNetCom 823 (695.html)   Features ARM9 166MHz 16MB SDRAM, 2MB Flash 8x Serial Ports UART 16C950 (128Byte FIFO, max 3.6Mbps) 10/100 Auto-MDI(X) Ethernet Interface IEEE 802.11b/g Wireless LAN (WEP/WPA) Very small, fanless, low Power µCLinux Distribution with gcc-toolchain FTP upload of applications RedBoot Boot-Partition DIN RAIL mountable       OpenNetCom 823 Quick Link: | Features | More Pictures | Overview | Application | Hardware | Interface | Power and Environment | Special Features | WLAN Security | Approvals | Software Configuration | Ordering Information | Optional Accessories | Download | |   More Pictures Klick on the thumbnails to enlarge them … >Back to top         Overview Very small, very flexible - little costs: A new solution for remote data collection and processing within a very compact machine. This platform is equipped with ARM9 RISC-Processor, and provides Ethernet/WLAN connection plus eight serial port with high speed UART 16C950 (128Byte FIFO). As operating system the GPL Linux distribution µCLinux offers a broad range of freeware tools and total control to the experienced customer and the freedom of software development as for any other Linux-PC. With gcc-toolchain users can develop their application from remote, upload by FTP and debug subsequently. Recovering factory configuration is ensured by write-protected RedBoot partition. Read the News Article…   Application Factory Automation Building Automation Telecom Intelligent Transportation Power and Energy ... and anything else you can do with a Linux PC …   Hardware Processor ARM 9 166 MHz Memory 16MB SDRAM, 2MB Flash UART Controller 16C950C (128Byte FIFO) or compatible Connector Type SMA-Reverse for WLAN antenna, RJ45 for Ethernet, DSUB 9 male for serial Port >Back to top         Interface Ethernet 10baseT/100baseTX Autodetect and Auto-MDI(X) Wireless IEEE 802.11b/g RaLink card (RT2560) with WEP and WPA protection Serial Interface RS232/422/485 No. of port 8, Speed up to 3.6 Mbps Available Modes RS232 full duplex RS422 full duplex RS485 4 wire, full duplex RS485 2 wire, half duplex, with echo RS485 2 wire, half duplex, without echo Signals RS232 TxD,RxD, RTS,CTS, DTR,DSR, DCD, RI, GND Signals RS422 Tx+/-, Rx+/-, GND Signals RS485 2 Wire Data+/-, GND Signals RS485 4 Wire Tx+/-, Rx+/-, GND RS485 Data Control Controlled by ART (Automatic Receive Transmit control) or RTS Speed RS232: up to 921.6 kbps RS422/485: up to 3.6 Mbps Digital I/O 3 internal signals @ 3.3V level >Back to top         Power and Environment Power Requirements 100 - 240V AC 47-63 Hz, 25VA Casing SECC sheet metal Dimensions 258×149×45 mm³ (W×L×H) 278×155×46 mm³ with DB9 connectors and DIN rail mounting kit 19" 1HU Rackmount Operating Temp 0°C - 55°C Storage Temp -20°C - 85°C Weight 1.9kg >Back to top         Special Features RS485 Direction ART (Automatic Receive Transmit control) for RS485 User Settings 4x Dip Switch can be read by Application >Back to top         WLAN Security WEP 64/128 bit encryption WPA WPA-PSK/TKIP >Back to top         Approvals EMC FCC Class A, CE Class A Environment RoHS >Back to top         Software Configuration Bootloader RedBoot™ Bootloader resides in write-protected partition. You can work directly with RedBoot, using a Service-Board with console port. Filesystem CramFS (Compressed ROM File System) for applications and libraries JFFS2 (Journalling Flash File System Ver2) for configuration and data storage. Operating System GPL Linux Distribution µClinux with Kernel 2.4 Includes many very small applications that satisfy most of user tasks. Daemons FTP- and Telnet-daemon. Development Application and Kernel compilation is done with cross-compiler (gnu-compiler toolchain on CD-ROM). Tools There are several example programs. >Back to top         Ordering Information Art.No 695 Product Name OpenNetCom 823 Packing list OpenNetCom 823 WLAN antenna Power cord 19" mounting kit CD-ROM: images, sources, tools English documentation >Back to top         Optional Accessories DK 35A DIN-Rail mounting kit Service Board Console Port, Diagnostic LEDs 20pin JTAG Connector >Back to top       Download   Documentation  (User Manual and WLAN configuration) >Back to top
