Very small, very flexible - little costs: A new solution for remote data collection and processing within a very compact machine. This platform is equipped with ARM9 RISC-Processor, and provides Ethernet/WLAN connection plus one serial port with high speed UART 16C950 (128Byte FIFO). As operating system the GPL Linux distribution µCLinux offers a broad range of freeware tools and total control to the experienced customer and the freedom of software development as for any other Linux-PC. With gcc-toolchain users can develop their application from remote, upload by FTP and debug subsequently. Recovering factory configuration is ensured by write-protected RedBoot partition. Read the News Article… |
|
 Factory Automation Building Automation Telecom |
Intelligent Transportation Power and Energy ... and anything else you can do with a Linux PC … |
|
|
|
|
Processor
|
|
ARM 9 166 MHz
|
|
Memory
|
|
16MB SDRAM, 2MB Flash
|
|
UART Controller
|
|
16C950C (128Byte FIFO) or compatible
|
|
Connector Type
|
|
SMA-Reverse for WLAN antenna,
RJ45 for Ethernet,
DSUB 9 male for serial Port
|
|
|
|
|
|
|
|
Ethernet
|
|
10baseT/100baseTX Autodetect and Auto-MDI(X)
|
|
Wireless
|
|
IEEE 802.11b/g RaLink card (RT2560)
with WEP and WPA protection
|
|
Serial Interface
|
|
RS232/422/485
|
|
No. of port
|
|
1, Speed up to 3.6 Mbps
|
|
Available Modes
|
|
RS232 full duplex
RS422 full duplex
RS485 4 wire, full duplex
RS485 2 wire, half duplex, with echo
RS485 2 wire, half duplex, without echo
|
|
Signals RS232
|
|
TxD,RxD, RTS,CTS, DTR,DSR, DCD, RI, GND
|
|
Signals RS422
|
|
Tx+/-, Rx+/-, GND
|
|
Signals RS485 2 Wire
|
|
Data+/-, GND
|
|
Signals RS485 4 Wire
|
|
Tx+/-, Rx+/-, GND
|
|
RS485 Data Control
|
|
Controlled by ART (Automatic Receive Transmit control) or RTS
|
|
Speed
|
|
RS232: up to 921.6 kbps
RS422/485: up to 3.6 Mbps
|
|
Digital I/O
|
|
3 internal signals @ 3.3V level
|
|
|
|
|
|
|
|
Power Requirements
|
|
9 - 30V DC input, 500mA @ 12V
|
|
Power supply Adapter
|
|
12V, 1000mA, connected by Terminal block
|
|
Casing
|
|
SECC sheet metal
|
|
Dimensions
|
|
73×115×27 mm³ (W×L×H)
101×121×27 mm³ with DB9 connector and DIN rail mounting kit
|
|
Operating Temp
|
|
0°C - 60°C
|
|
Storage Temp
|
|
-20°C - 85°C
|
|
Weight
|
|
0.2kg
|
|
|
|
|
|
|
|
RS485 Direction
|
|
ART (Automatic Receive Transmit control) for RS485
|
|
User Settings
|
|
4x Dip Switch can be read by Application
|
|
|
|
|
|
|
|
WEP
|
|
64/128 bit encryption
|
|
WPA
|
|
WPA-PSK/TKIP
|
|
|
|
|
|
|
|
EMC
|
|
FCC Class A, CE Class A
|
|
Environment
|
|
RoHS
|
|
|
|
|
|
|
|
Bootloader
|
|
RedBoot™ Bootloader resides in write-protected partition. You can work directly with RedBoot, using a Service-Board with console port.
|
|
Filesystem
|
|
CramFS (Compressed ROM File System) for applications and libraries
JFFS2 (Journalling Flash File System Ver2) for configuration and data storage.
|
|
Operating System
|
|
GPL Linux Distribution µClinux with Kernel 2.4
Includes many very small applications that satisfy most of user tasks.
|
|
Daemons
|
|
FTP- and Telnet-daemon.
|
|
Development
|
|
Application and Kernel compilation is done with cross-compiler (gnu-compiler toolchain on CD-ROM).
|
|
Tools
|
|
There are several example programs.
|
|
|
|
|
|
|
|
Art.No
|
|
693
|
|
Product Name
|
|

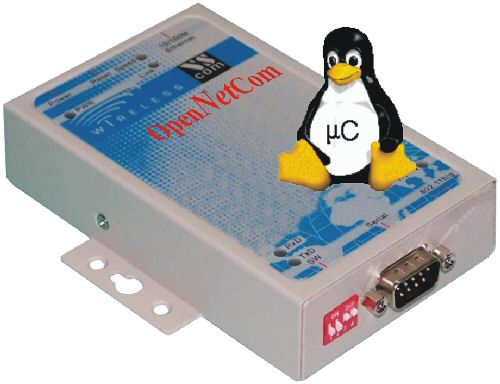

OpenNetCom 123
|
|
Packing list
|
|
OpenNetCom 123
WLAN antenna
Power supply adapter 12V, 1000mA
CD-ROM: images, sources, tools
English documentation
|
|
|
|
|
|
|
|
|
|
DIN-Rail mounting kit
|
|
|
|
Console Port,
Diagnostic LEDs
20pin JTAG Connector
|
|
|
|
|
