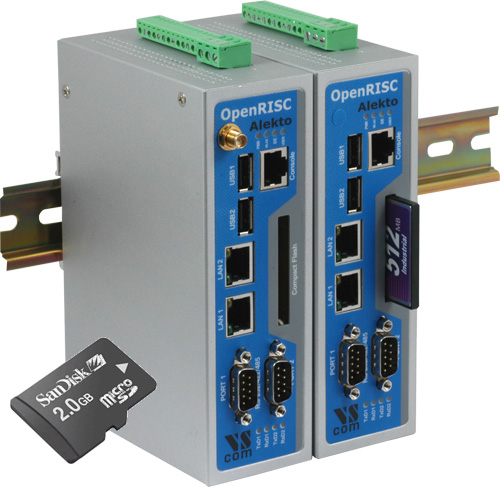

>visionsystems.de/Alekto with internal microSD (6802.html)   Features ARM9 166MHz 64MB SDRAM, 4MB Flash 1 x internal microSD Slot 1 x CF-Slot (True IDE mode) 2 x USB 2.0 Host 2 x Serial Ports RS232/422/485 2 x Fast Ethernet Auto-MDI(X) 8 x Digital-I/O 1 x I²C 1 x MiniPCI-Slot for WLAN 802.11b/g cards (optional) 1 x Console Port Very small, fanless, low Power Ready-to-run full-featured Debian GNU/Linux Kernel 2.6 FTP upload of applications RedBoot Boot-Partition DIN RAIL mountable Starter kits available     Zoom in Picture Alekto with internal microSD Quick Link: | Features | Overview | Application | Appearance | System | Digital I/O | Serial Interface | LEDs | Power Requirements | Mechanical | Environmental | Approvals | Software Specifications | Software Development | Device Drivers | Ordering Information | Download | |   Overview The OpenRISC Alekto with internal microSD is an ARM9-based RISC industrial embedded computer. The great variety of interfaces like LAN, CF, USB, I²C, serial interface, digital I/O makes it easy to connect various industrial devices to the OpenRISC. Compact dimensions and DIN Rail mounting capability make the OpenRISC to a space saving and flexible mounting industrial computer. It is feasible to be installed even in space limited environments. The internal microSD slot protects the system software against accidentally removal. Due to RISC based architecture the OpenRISC has very small power consumption, so fanless heat dissipation is possible. Working in a wide temperature range from -10°C up to 65°C the OpenRISC can be applied in under harsh industrial conditions. Therefore the OpenRISC is downright designed for industrial automation. The embedded computer runs full-featured Debian GNU/Linux on ARM operating system Kernel 2.6. This system is installable on a microSD card to place in the internal card-reader, or on a CF card. With Debian's repository database it is easy to install and update the free software on the OpenRISC. The OpenRISC is capable to act directly as a software development host, WEB, Mail, Print and Database server or as a desktop computer with X11 window manager and many more. Read the News Article…   Application Building automation system Automatic warehouse control system Self-service banking system (ATM) Wafer fabrication system Database server Small development host Remote and distributed serial devices control SCADA system Industrial / Factory / Laboratory automation WEB and Mail server Print server Small desktop with X11 windows manager and office software   Appearance There are some appearance images of Alekto with internal microSD. Klick on the thumbnails to enlarge them … >Back to top         System Processor ARM9 32-bit RISC CPU, 166MHz Memory 64MB SDRAM Flash 4MB BIOS microSD-Reader 1 x internal as boot device, 7 MB/s SD 2.0 / SDHC CF-Slot Type II, True IDE mode (accepts MicroDrives) PIO-0 and PIO-3 LAN 2 x Fast Ethernet Auto-MDI(X) USB 2 x USB 2.0 as Host Expansion Slot miniPCI (for WLAN) Console Port RS232, up to 115200bps I²C max. 330kHz Time Real time clock with battery backup (CR2032 in clip) Other Buzzer, Watchdog Timer >Back to top         Digital I/O Input/Output 8 Input/Output signals Signal configuration Signal direction individually configurable as Input or Output Electrical Input: TTL level (0.0 to 0.8V, 2.0 to 5.0V) Output Source: 32mA@TTL High (2.0 to 5.0V) Output Sink: 64mA@TTL Low (0.0 to 0.6V) IRQ Maskable IRQ for input signals Connector type Terminal block >Back to top         Serial Interface Serial Port 2 x RS232/422/485, software selectable Highspeed UART 16C950, 128 Byte FIFO Available Modes RS232 RS422 full duplex RS485 4-wire, full duplex RS485 2-wire, half duplex, with echo RS485 2-wire, half duplex, without echo Signals RS232 TxD,RxD, RTS,CTS, DTR,DSR, DCD, RI, GND Signals RS422 Tx+/-, Rx+/-, GND Signals RS485 2−wire: Data+/-, GND 4−wire: Tx+/-, Rx+/-, GND RS485 Data Direction Control by ART (Automatic Receive Transmit control) by RTS Speed RS232: up to 500 kbps RS422/485: up to 3.6 Mbps >Back to top         LEDs System Power (red), WLAN (blue), IDE (yellow), User (green) LAN 10M/Link, 100M/Link x 2 integrated in RJ45 connector Serial TxD, RxD for each port >Back to top         Power Requirements Power Input 9 - 30V DC input Consumption max. 1.5A @12V Connector type 3-pin Power Terminal block >Back to top         Mechanical Dimensions 157×106×53 mm³ (W×L×H) 167×112×53 mm³ including DB9 connectors and Terminal block Weight 0.35kg Construction Material Aluminium, 1mm Mounting DIN Rail, Wall mounting >Back to top         Environmental Operating Temp -10°C - 65°C Storage Temp -20°C - 85°C >Back to top         Approvals EMC FCC Class A, CE Class A Environment RoHS >Back to top         Software Specifications Linux Debian GNU/Linux for ARM Kernel 2.6 Enhanced support for USB Watchdog Timer supported Bootloader proprietary BIOS to install and boot OS from CF, microSD, USB Mass Storage Devices or over Network File System JFFS2 (on-board flash), ext2 (preinstalled system on CF) and many more choices Protocol Stacks ARP, PPP, CHAP, PAP, IPv4, ICMP, TCP, UDP, DHCP, FTP, SFTP, SNMP V1/V3, HTTP, HTTPS, NTP, NFS, SMB, SMTP, POP3, IMAP4, SSH 1.0/2.0, SSL, Telnet, PPPoE, OpenVPN, RFC2217 System Utilities bash, telnet, ping, ftp, ssh, scp, netcat, socat, vim-tiny, e2progs, reiserfs, fdisk Supporting Services and Daemons telnetd: Telnet server daemon vsftpd: FTP server daemon sshd: Secure shell server daemon Apache2: Web server daemon Courier: Mail server daemon Samba: windows share daemon sredird: RFC2217 pppd: dial in/out over serial port daemon openssl: Open SSL openvpn: virtual private network Complete Image Pre-configured OS with applications to install on a 2 GB microSD or CF-card. It consists of  tools gcc-3.3, vim-tiny  services ssh, telnet, vsftpd (each as server and client)     netcat and socat To speed up the boot process other software packages are not started automatically. To enable them please read the manual. Packages are:  Samba client and server  Apache2 web server  Courier mail server  NTP client and server  sredird RFC2217 server  WindowMaker desktop  xdm server (X11)  AbiWord  dillo web browser >Back to top         Software Development On-board Tool Chain Gcc, Glibc, gdb, vim-tiny editor, gmake (develop on Alekto) Linux Tool Chain Gcc, Glibc, gdb, Insight, gmake (develop on a Linux PC) Kernel Kernel 2.6 sources Hardware Driver sources for Alekto-specific hardware components >Back to top         Device Drivers Data Communication USB (supports USB Mass Storage Devices, USB-to-Serial converters, USB-CAN adapter, Bluetooth) UART 16C950, 128 Byte FIFO, RS232/422/485 I²C WLAN 802.11b/g RaLink cards (RT2561) optional Others Digital I/O RTC Buzzer LEDs Watchdog Timer >Back to top         Ordering Information Art.No 6802 Product Name OpenRISC Alekto SD Packing list OpenRISC Alekto SD Power supply adapter 12V, 1500mA Adapter cable for console port DVD-ROM-1: Debian on ARM DVD-ROM-2: system images, sources, tools, English documentation >Back to top       Download   Hardware Manual  (Edition: April 2010) User Manual  (Edition: April 2010) System Image  (7-Zip self-extracting) Latest Kernel  (zImage 2.6.33.2) Latest BIOS  (v2.9 2010/05/18) Source Files  (SVN Repository) Toolchain  (Cross Compiler for x86 systems) >Back to top
