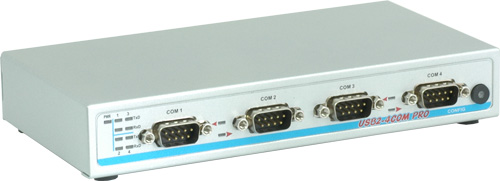

>visionsystems.de/VScom USB-4COM-PRO (606.html)   Features Metal case Jumperless, no DIP switches USB 2.0 interface DIN-Rail mountable RS232/422/485 DB9 male port Speed up to 3000kbps external power supply     Zoom in Picture VScom USB-4COM-PRO Quick Link: | Features | Overview | Appearance | Hardware Specifications | Ordering Information | Optional Accessories | Download | |   Overview The USB-4COM-PRO is completely jumperless and free of DIP switches, all configuration is done by software. Just press the button and use the configuration program. Serial ports on USB allow further use of existing devices, even when the computer doesn't offer serial ports. Now the USB-4COM-PRO is extremely flexible in offered communication standards. Besides the classical RS232 and RS422 it offers six variants of the RS485 operation. The often required Termination and Polarization (BIAS) is also provided by built-in hardware, and it is controlled by the same configuration software. The USB 2.0 interface enables the high speed serial ports (max. 3Mbps, 128 byte FIFO) for high speed communication, even in heavy loaded systems. Unique features reduce the system load. The serial ports also allow unusual speed settings like 500kbps.   Appearance There are some appearance images of VScom USB-4COM-PRO. Klick on the thumbnails to enlarge them … >Back to top         Hardware Specifications Serial interface RS232/422/485 selected by software Ports Four Speed up to 921.6kbps RS232, up to 3Mbps RS422/RS485 Available Modes RS232 full duplex RS422 full duplex RS485 4 wire, full duplex RS485 2 wire, half duplex, with echo RS485 2 wire, half duplex, without echo Signals RS232 TxD, RxD, RTS/CTS, DTR, DSR, DCD, RI, GND RS422 Tx+/-, Rx+/-, GND RS485 2 wire Data+/-, GND RS485 4 wire Tx+/-, Rx+/-, GND USB Interface USB2.0 Power External power supply 5V DC Driver Windows 7,Vista,XP,2000,ME,98 Linux (Kernel 2.4 and up built-in) Connectors four DB9 male Dimensions 172×95×29 mm³ (W×L×H) 184×99×29 mm³ with DB9 connector and ears >Back to top         Ordering Information Art.No 606 Product Name VScom USB-4COM-PRO Packing list VScom USB-4COM-PRO Adapter USB cable 0,9m Power adapter CD, English Documentation >Back to top         Optional Accessories DK 35A DIN-Rail mounting kit >Back to top       Download   Windows 7, Vista, Windows 2000/XP/2003, Windows XP/2003 64 bit  (CDM Installation executable (Oct. 22 2009)) Vista, Windows 2000/XP/2003, Windows XP/2003 64 bit  (Release CDM 2.06.00 (Oct. 22 2009)) Windows 98/SE/ME  (Release 1.00.00+1.00.906 (2005/11/29)) Support for Linux  (Version 1.3.5r1 (2006/02/02)) Other  (Mac OS, WinCE and more) Manual  (Installation and Configuration) New Manual  (Edition June 2009) Configuration  (Windows-SW for ease of configuration) >Back to top
