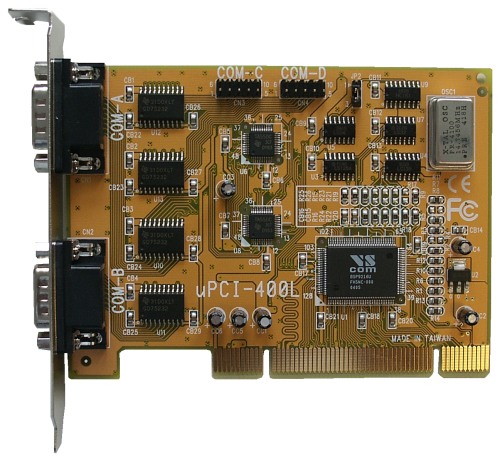

>visionsystems.de/VScom 400L UPCI (4465.html)   Features Universal PCI 3.3 / 5.0V 4x RS232 UART 16550 (16 Byte FIFO) Speed 921 kbps PCI Plug and Play IRQ Interupt sharing, only one Interupt per card Drivers Win95/98,ME,NT 4.0,Win2k, XP, Linux, DOS Utility     Zoom in Picture VScom 400L UPCI Quick Link: | Features | Overview | Hardware Specifications | Performance Features | Operating Systems | Ordering Information | Download | |   Overview The L-series is an economic solution for standard applications. The serial ports are based on a 16C550A UART with 16 byte FIFO. The eightfold maximum speed allows some irregular transmission rates.   Hardware Specifications Ports 4x RS232 (RxD, TxD, RTS, CTS, DTR, DSR, DCD, RI) UART 4x 16550 (16 Byte FIFO) Address Plug and Play Interrupts PCI Plug and Play, only one interrupt/card Speed max. 921 kbps Bus interface Universal PCI 3.3V / 5.0V Connectors 2x2 DB9 male (COM), 2x DB9 male (COM) (2. Slot) Size L120mm x H89mm Temperature 0°C - 55°C >Back to top         Performance Features FIFO FIFO size 16Byte adjustable Rx 1,4,8,14Bytes Tx 1 up to 16Bytes Handshake RTS / CTS Xon / Xoff Speed 1bps up to 921kbps Multiplication factor for legacy applications UART UART emulation of 8250 and 16450 >Back to top         Operating Systems WIN95, WIN98, ME VScom high performance serial driver WIN NT 4.0 VScom high performance serial driver control panel applet WIN 2000, XP VScom high performance serial driver Win 2003 Server VScom high performance serial driver DOS virtuell address driver and compatibility tools real DOS Com port emulation OS/2 Supported by COM16 driver in recent system releases Third party serial driver SIO.SYS available Linux Kernel 2.6 and up: built-in support Previous kernel: VScom high performance real tty driver div.UNIX configuration instructions >Back to top         Ordering Information Art.No 4465 Product Name VScom 400L UPCI Packing list VScom 400L UPCI card 2nd Bracket with 2 Ports DSUB 9 male CD, English documentation >Back to top       Download   Windows 7  (Release 3.3.0.15 (February 19 2010)) Windows XP  (WHQL Release 3.1.2 (July 20 2007)) Windows 2003 Server  (Release 3.1.2 (July 20 2007)) Windows XP/2003 64 bit  (Release 3.1.2 (July 20 2007)) Windows 2000  (Release 3.1.2 (July 20 2007)) Windows NT 4.0  (Release 3.1.2 (July 20 2007), PnP) Vista  (WHQL Release 3.1.2 (July 20 2007)) Vista 64 bit  (WHQL Release 3.1.2 (July 20 2007)) Windows 95/98/SE/ME  (Release 3.1.2 (July 20 2007)) Support for Linux  (Select your kernel version) DOS Tools  (Please read index.txt) Old drivers  (Obsolete drivers, for special requests) All Downloads  (Find your own way through, read index.txt) Board manual  (Manual for L-series boards, Edition April 2009) >Back to top
