The high speed serial ports with their 128 byte long FIFO are best for high speed communication, even in heavy loaded systems. Many unique features reduce the system load. They also allow very unusual speed settings such as 500.000bps. |
|
|
|
Ports
|
|
2x RS232 (RxD, TxD, RTS, CTS, DTR, DSR, DCD, RI)
|
|
UART
|
|
2x 16C950 (128 Byte FIFO)
|
|
Address
|
|
Plug and Play
|
|
Interrupts
|
|
PCI Plug and Play, only one interrupt/card
|
|
Speed
|
|
max. 921 kbps
|
|
Bus interface
|
|
Universal PCI. 3.3V / 5.0V
|
|
Connectors
|
|
2x DB9 male
|
|
Temperature
|
|
0°C - 55°C
|
|
|
|
|
|
|
|
FIFO
|
|
adjustable FIFO length, 1 up to 128Bytes
separat adjustable Rx and Tx
|
|
Handshake
|
|
RTS / CTS
DTR / DSR
Xon / Xoff
all handshake automatic on Chip
|
|
Speed
|
|
1bps up to 921kbps
unusual Baudrates
Multiplication factor for legacy applications
|
|
Access
|
|
high speed access via Memory
|
|
UART
|
|
UART emulation of 8250 up to 16850
|
|
|
|
|
|
|
|
WIN95, WIN98, ME
|
|
VScom high performance serial driver
|
|
WIN NT 4.0
|
|
VScom high performance serial driver
control panel applet
|
|
WIN 2000, XP, Vista
|
|
VScom high performance serial driver
|
|
Win 2003 Server
|
|
VScom high performance serial driver
|
|
DOS
|
|
virtuell address driver and compatibility tools
real DOS Com port emulation
|
|
OS/2
|
|
Supported by COM16 driver in recent system releases
Third party serial driver SIO.SYS available
|
|
Linux
|
|
Kernel 2.6 and up: built-in support
Previous kernel: VScom high performance real tty driver
|
|
div.UNIX
|
|
configuration instructions
|
|
|
|
|
|
|
|
Art.No
|
|
4426
|
|
Product Name
|
|

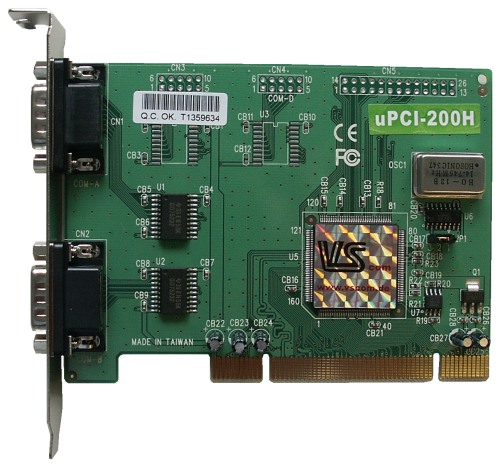

VScom 200H UPCI
|
|
Packing list
|
|
VScom 200H UPCI card
CD, English documentation
|
|
|
|
|
Universal PCI 3.3 / 5.0V
