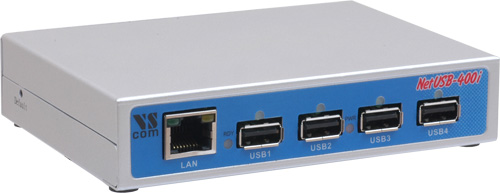

>visionsystems.de/NetUSB-400i (413.html)   Features Controls 4 USB 2.0 devices located in the LAN Auto-detecting 10/100Mbps Ethernet interface Driver automatically finds USB servers on LAN Supports Windows XP, Vista Protocols TCP/IP,UDP, HTTP, DHCP,ICMP,DNS Administration Software     Zoom in Picture NetUSB-400i Quick Link: | Features | Overview | Application | Hardware | Interface | Performance | Power and Environment | Special Features | Ordering Information | Optional Accessories | Download | |   Overview The NetUSB-400i controls four USB 2.0 devices via Ethernet. The four USB ports on NetUSB-400i are seen as installed in the Windows PC. Any devices connected to the ports are detected via Plug&Play. Several PC may use the same devices on a time-sharing base. USB printers offer an automatic sharing option, to connect them when data is printed. Other PC use the same printer as soon as the previous job has finished printing. The metal case and the flexible power supply make the NetUSB-400i a good choice in rough office and industrial environments. Read the News Article…   Application Print server Automatic warehouse control system Retail system Remote surveillance Building automation system Other remote USB devices control   Hardware Processor ARM 9 170 Mhz Memory 32MB SDRAM, 8 MB Flash Connector type USB type A Port RJ45 for Ethernet >Back to top         Interface Ethernet interface Auto-detecting 10BaseT/100BaseTx Protocols TCP/IP, UDP, DHCP, ICMP, HTTP, DNS USB interface USB 2.0 High Speed No. of port 4 Available Modes Bulk transfer Isochronous transfer >Back to top         Performance Speed Up to 480Mbps IRQ None I/O address None >Back to top         Power and Environment Power requirements 9 - 30V DC, 1.2A @ 12V Dimension 127×92×27 mm³ (W×L×H) Operating Temp 0°C - 55°C Storage Temp -20°C - 85°C Case SECC sheet metal (1mm) Weight 300 g >Back to top         Special Features Installation Administration utility automatically finds USB servers in the network Configuration Configuration over Driver Panels, WEB Browser DNS Domain Name Server support Firmware Firmware update over Administration Software and WEB Browser LEDs LEDs for Power, Ready, Ethernet Link/Speed, USB usage >Back to top         Ordering Information Art.No 413 Product Name NetUSB-400i Packing list NetUSB-400i Power adapter CD-ROM with Driver and Configuration Software >Back to top         Optional Accessories DK 35A DIN-Rail mounting kit >Back to top       Download   Windows 7  (USB-IP Admin 1.00.0035 and driver 1.0.0.30) Windows 7 64 bit  (USB-IP Admin 1.00.0035 and driver 1.0.0.30) Vista, Windows XP/2003  (USB-IP Admin 1.00.0035 and driver 1.0.0.30) Vista 64 bit, Windows XP/2003 64 bit  (USB-IP Admin 1.00.0035 and driver 1.0.0.30) Beta Windows 32 bit  (USB-IP Admin 1.00.0036 and driver 1.0.0.31) Beta Windows 64 bit  (USB-IP Admin 1.00.0036 and driver 1.0.0.31) Firmware  (Version 1.0.0.47) Manual  (Edition September 2009) >Back to top
