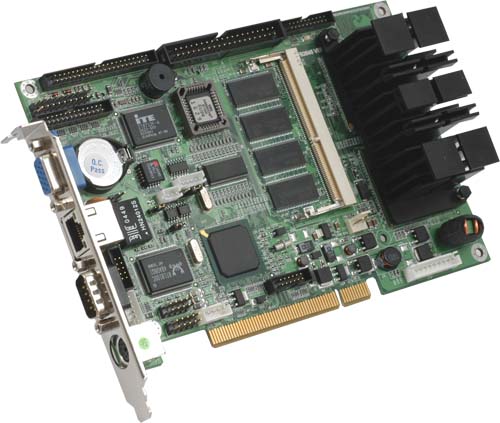

A wide range of PCI Single Board designed to meet the high performance, applied computing requirements today! Fan less |
|
|
|
CPU
|
|
Intel Celeron 650MHz ULV (EBGA)
|
|
Chipset
|
|
Intel 815E + ICH2 + IT8712
|
|
VGA
|
|
Chipset integrated
|
|
Bus Interface
|
|
PCI Bus
|
|
Memory
|
|
128 MB SDRAM on Board, one SoDIMM socket supports up to 384MB max.
|
|
BIOS
|
|
AMI Flash BIOS, incl. VGA/LCD and LAN boot-ROM
|
|
IDE Interface
|
|
2 PCI IDE, one 40-pin, one 44-pin
|
|
FDD
|
|
1 x Floppy interface
|
|
LAN
|
|
Realtek RTL8100S Chipset 10/100Mbps, Base-Tx Ethernet with Rj-45 connector onboard
|
|
Serial Port
|
|
1 x RS232, 1 x RS232/422/485 serial port
|
|
Parallel Port
|
|
Supports one parallel port SPP/EPP/ECP
|
|
USB
|
|
4 x USB ports with 10-pin header
|
|
Socket
|
|
one socket for Compact Flash
|
|
Keyboard/Mouse
|
|
6-pin 2.0mm JST connector
6-pin Mini DIN connector PS/2 for Keyboard or Mouse
|
|
Watchdog
|
|
Programmable watchdog timer
|
|
Power Req.
|
|
+5V 4,2A and +12V 0.1A (base on PIII 933MHz CPU)
|
|
H/W monitoring
|
|
supports CPU/Chassis temperature, Main/Aux.powers and CPU Chassis cooling fan
|
|
Operating Temp.
|
|
0 to 45 celsius degree (149 degree F.)
|
|
Storage Temperature
|
|
-25 to 80 celsius degree
|
|
Cache
|
|
internal 512KB L2 Cache, Integrated in the CPU
|
|
Dimensions
|
|
185 mm x 122 mm
|
|
|
|
|
|
|
|
Art.No
|
|
396
|
|
Product Name
|
|
VS-2645
|
|
Packing list
|
|
Cable HDD cable 670mm, FDD cable 670mm, Parallel port and Com port, Y cable for PS/2 Keyboard, Mouse 150mm
Disk Novell network drivers
IBM network drivers
Microsoft and Unix network drivers
|
|
|
|
|
Intel Celeron 650MHz ULV fanless
