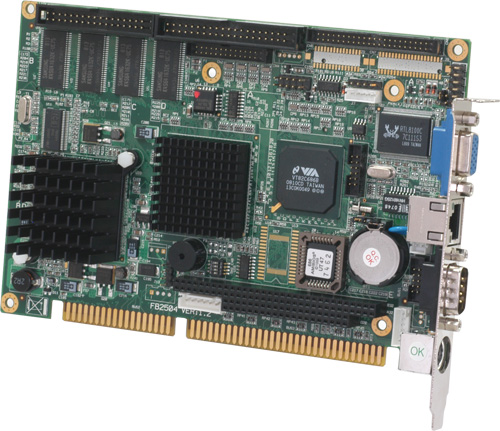

>visionsystems.de/VS-2504 (391.html)   Features Intel Celeron 400MHz on Board 32MB SDRAM on Board,one SoDIMM socket supporting up to 544MB Onboard VT8601 chipset, CRT up to 8MB shared Memory 2 x IDE, 1 x FDD, 1 x CF socket 10/100Mbps LAN Onboard 1 x RS232, 1 x RS232/422/485, 1 x parallel, 2xUSB (10-pin header)     Zoom in Picture VS-2504 Quick Link: | Features | Overview | Hardware Specifications: | Ordering Information: | |   Overview LOW Power Card for medium applications.Low Cost Card. Up to 544MB SDRAM   Hardware Specifications: CPU: Intel Celeron 400MHz ULV Chipset: VIA VT8601T and VIA VT82C686B VGA : VT8601 embedded, supports CRT, up to 8MB shared Memory Bus Interface: ISA Bus Memory: 32 MB SDRAM on Board, one SoDIMM socket supports up to 544MB max. BIOS: AMI Flash BIOS, incl. VGA and LAN boot-ROM IDE Interface: 2 x IDE, one 40-pin, one 44-pin FDD : 1 x Floppy interface LAN: Realtek RTL8100B Chipset 10/100Mbps, Base-Tx Ethernet with Rj-45 connector onboard Serial Port 1 x RS232, 1 x RS232/422/485 serial port Parallel Port Supports one parallel port SPP/EPP/ECP USB 2 x USB 1.1 Socket DoC no Keyboard/Mouse 1 x PS/2 for Keyboard or Mouse Watchdog Programmable watchdog timer Power Req.: +5V: 2,7A and +12V: 0.2A (base on 400MHz CPU) H/W monitoring : supports CPU/Chassis temperature, Main/Aux.powers and CPU Chassis cooling fan Operating Temp.: 0 to 60 celsius degree (149 degree F.) Storage Temperature: -25 to 80 celsius degree Cache: L2 Cache, Integrated in the CPU Dimensions: 185 mm x 122 mm >Back to top         Ordering Information: Art.No: 391 Product Name: VS-2504 Packing list: Cable: HDD cable 670mm, FDD cable 670mm, Parallel port and Com port, Y cable for PS/2 Keyboard, Mouse 150mm Disk:Novell network drivers IBM network drivers Microsoft and Unix network drivers >Back to top
