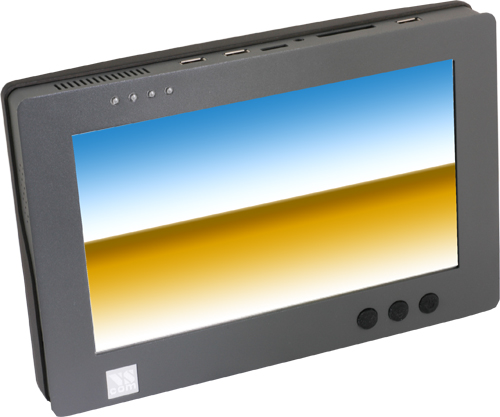

>visionsystems.de/TruckPAD Car PC System (3850.html)   Features 10.1" Touch Panel display, 1024×600 VIA Nano 64 bit @ 1.3GHz VX800 chipset, 800MHz FSB Up to 2 GB DDR2 SDRAM Optional WLAN, Bluetooth Express card slot HD Audio, Speaker and output jack HDD or SSD drive bay microSD expansion Optional GSM/3.5G, GPS Digital and analogue I/O CAN Bus up to 1MBit/s K-Line interface       TruckPAD Car PC System Quick Link: | Features | More Pictures | Overview | TruckPAD Touch Panel Unit | System | Display | Mass Storage Device | Audio | External Ports | Power Management | Battery Pack & Life | Dimensions/Weight | Supported OS | TruckHUB Vehicle Connection Unit (Data Acquisition) | Connectivity | Digital and Analogue I/O | CAN | Power | Dimension & Environment | Ordering Information | |   More Pictures Klick on the thumbnails to enlarge them … >Back to top         Overview Targeting automotive applications the TruckPAD Car PC has been approved with an e-Mark certification. This TruckPAD System has been designed for telematic and map-navigation applications, offering high shock resistance and low power consumption of max. 20W from 12V and 24V sources. Combinded with GPS position engine and UMTS/HSDPA module it can be used for tracking and controlling truck operation and routing. Actual position and operating conditions are known for every vehicle at every time. Firmware updates and upload of operating data can be done using Wireless LAN when the vehicle returns to base location. The TruckPAD system is divided in two major components. The TruckPAD itself is a Touch Panel PC with an integrated 10.1" Display. WLAN and Bluetooth is implemented for connectivity, operating on internal antennas. Three USB slots provide different connection options, as well as an Express Card 34 slot. Further a microSD card reader is placed on the top of the case. The TruckPAD comes with a VESA mount, which can provide power supply and other connectivity. When the vehicle is parked, the driver can easy take-out the TruckPAD system, and carry it in the hand. Running on batteries it is usable for several mobile applications. The second component is the DaqBox (for Data Acquisition Box). This box takes power from the vehicle battery, and provides the TruckPAD with +12V DC, regulated and protected as required on vehicles. The connection to TruckPAD may be up to 5m cable length. The vehicle driver does not need to touch the DaqBox, so it can be mounted in a protected location. The DaqBox connects to the VESA mount of TruckPAD by a high-speed HDMI cable. On the same cable the DaqBox is connected via USB 2.0, thus connecting several functions to the TruckPAD. These functions include a USB ports, a RS232 serial port, a CAN interface and several Input/Output sub-functions. A certain input signal is connected to the ignition key, and will start/stop TruckPAD when the vehicle ignition is turned on or off.   TruckPAD Touch Panel Unit   System Processor VIA Nano ULV 1.3GHz 128K L1 cache & 1M L2 cache (32/64bits) FSB 800MHz BIOS AMI 512KB Flash BIOS System Chipset VIA VX800 Main Memory DDR2-667 1GB SDRAM (max. 2GB) Network WLAN RF Modem Bluetooth Adapter >Back to top         Display Chipset VIA Chrome9™ HC3 Integrated DX9 Graphics Processor Memory Supports 64/128/256/512MB frame buffers size LC Display 10" TFT LCD WXGA 1024×600 with LED backlight Graphics DirectX 9.0 programmable Graphics Engine Extras MPEG-2, MPEG-4, VC1 and DiVX video decoding acceleration Resolution 1024×600 LVDS 24bit LVDS with 1024×600 resolution Touch Controller 4 wire resistive sensor, via internal serial port >Back to top         Mass Storage Device Hard Disk 1 x 1.8" 8mm IDE HDD/SSD Connector micro SATA >Back to top         Audio HD Audio Stereo speaker Other Audio Jack (Earphone-out) >Back to top         External Ports USB 3 x USB 2.0 Flash Micro SD card reader Docking High Density connector for external Power, USB, HSDPA, RS232, K-Line, CAN, Digital-I/O Power DC input power Jack Express card Express card 34 slot LEDs Power, WLAN, HDD, Battery Buttons Power, WLAN, Sleep >Back to top         Power Management ACPI ACPI 1.0/2.0/3.0a supported External Power button control from TruckHUB for shut down and wake >Back to top         Battery Pack & Life Battery Lithium Ion Polymer, 2S1P Replacement Cable connected to main board Output 7.4V/3300mAh Battery life up to 2 hrs (estimate) >Back to top         Dimensions/Weight Dimensions 277(W) x 183(H) x 40(D)mm³ Weight 1.75kg (with TFT LCD & Battery) >Back to top         Supported OS Windows 7, XP SP3 >Back to top         TruckHUB Vehicle Connection Unit (Data Acquisition)   Connectivity GSM Mobile Triband GSM/GPRS/Edge/UMTS/HSPA/Voice Card (USB interface), on external antenna GPS module Built in on GSM module, connects external antenna USB 2 x USB CAN Vscom USB-CAN, up to 1 Mbit/s Input / Output Digital and Analogue I/O K-Line Provided as Com Port Com Port 1 x DSUB 9 male RS232 Power Supply from vehicle power to TruckPAD Connection High speed HDMI cable to connect to TruckPAD >Back to top         Digital and Analogue I/O Input 4 × Digital, vehicle voltage level (12V or 24V) Wake-Up on input 0 (Ignition) Output 4 × Digital open collector Sink 100mA @ vehicle voltage Counter 2 × TTL level for Tacho and RPM, programmable period Wake-Up on RPM ADC Reads vehicle battery level >Back to top         CAN Speed CAN High Speed (up to 1Mbit/s) for transmit/receive Signals CAN_H, CAN_L, CAN_GND, CAN_V+, GND Controller SJA1000 (Philips) Transceiver TJA1050 (Philips) CAN Listen mode Passive receive of CAN Frames, neither ACK bits nor Error Frames Connector DB9 male Library VSCAN Functions for simple access CANFestival CANopen examples showing Master/Slave communication >Back to top         Power Power Input 12V to 24V vehicle power input filter Power Output 12V 2A output to TruckPAD Power Management wake up control by Ignition, Motor, GSM shut down control by Ignition, vehicle battery down >Back to top         Dimension & Environment Dimensions 210(W) x 124(D) x 47(H)mm³ Weight 500g Operating Temp. -5° to +55°C Storage Temp. -20° to +80°C >Back to top         Ordering Information Art.No 3850 Product Name TruckPAD Car PC System Packing list TruckPAD Car PC System: TruckPAD Touch Panel Unit VESA mount for TruckPAD HDMI cable Data Acquisition Box CD, English documentation >Back to top
