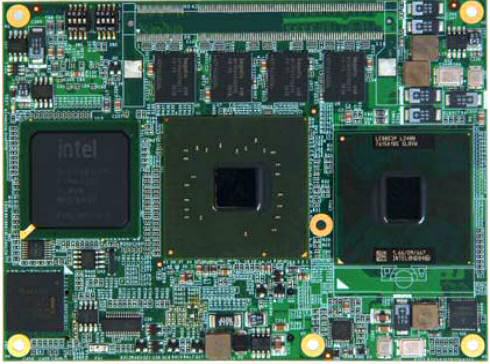

>visionsystems.de/COM Express 945 (3810.html)   Features Intel Core Duo/Core 2 Duo/Core Solo Processors Intel 945GME with ICH7-M DH Onboard DDR2 512MB/1GB SDRAM SO-DIMM up to 2GB Supports 2×SATA Supports 1×PATA Supports 8×USB 2.0 Supports Dual Channel 18bit LVDS Supports PCIe x1 Supports PEG Gigabit Ethernet     Zoom in Picture COM Express 945 Quick Link: | Features | Overview | Appearance | Core Spedifications | LAN | Expansion and I/O | Display | Other functions | Power and Environment | Certifications | |   Overview The COM Express 945 module featuring Intel Core Duo/ Core 2 Duo/ Core Solo processor, supporting onboard DDR2 512MB and 1GB (Option) SDRAM or 200pin SO-DIMM up to 2GB DDR2 400/533/667 MHz SDRAM. The Module use Intel 945GME GMCH/ ICH7-M DH chipsets. The COM Express 945 module supports a various range of Operating Systems such as Windows XP embedded. This module can use 945 Base Board to build a system platform like Panel PC and offer best solution for industrial applications.   Appearance There are some appearance images of COM Express 945. Klick on the thumbnails to enlarge them … >Back to top         Core Spedifications CPU Supports Intel Core processor Soldered Core Duo LV (L2400 @ 1.66 Ghz) Socket Supports Core 2 Duo (T7400) Core Duo (T2500) Core Solo Memory on board DDR2 512MB 1GB optional Memory SO-DIMM 1 × 200-pin SODIMM DDR2 up to 2 GB, 400/533/667 MHz Chipset Intel 945GME GMCH/ICH7-M DH 667MHz FSB BIOS AWARD™ 4 Mbit Flash BIOS >Back to top         LAN Chipset PCI Express Gigabit Ethernet/82573L Interface IEEE 802.3u compatible Boot Support boot from LAN (PXE) Built-in boot ROM in Flash >Back to top         Expansion and I/O PCI Express Up to 22 lanes PCI 32 Bit LPC Connects Legacy devices PATA 1 × EIDE (UDMA 100) SATA 2 × SATA, 1.5 Gb/s (150MB/s) USB 8 × USB 2.0 ports Audio High Definition Audio interface (AC97/Azalia) >Back to top         Display Chipset Intel 945GME, four display methods Method 1 CRT Display Mode Supports max DAC frequency up to 400 MHz RAMDAC (Three 8-bit DACs) support DDC2B compliant Up to 2048×1536 mode Method 2 LCD Display Mode Supports 25 to 112 MHz single/dual channel 18 bit LVDS interface. Maximum panel size up to UXGA TFT panel type Method 3 External Graphic One PEG (PCIe x16) port for external graphic card Method 4 Two SDVO support for ADD2 (HDTV, HDMI…) >Back to top         Other functions Watchdog 0 to 255 sec or setup by software Voltage Monitor on board Temperature On board CPU monitor >Back to top         Power and Environment Operating +12V DC Standby +5V DC Dimensions 125×95 mm² Operating temperature 0 - 60°C Storage temperature -20°C to 85°C Relative humidity 0% to 90% (Non-condensing) >Back to top         Certifications CE Approved FCC Class B (FCC tested on 945 Base Board) ROHS Yes >Back to top
